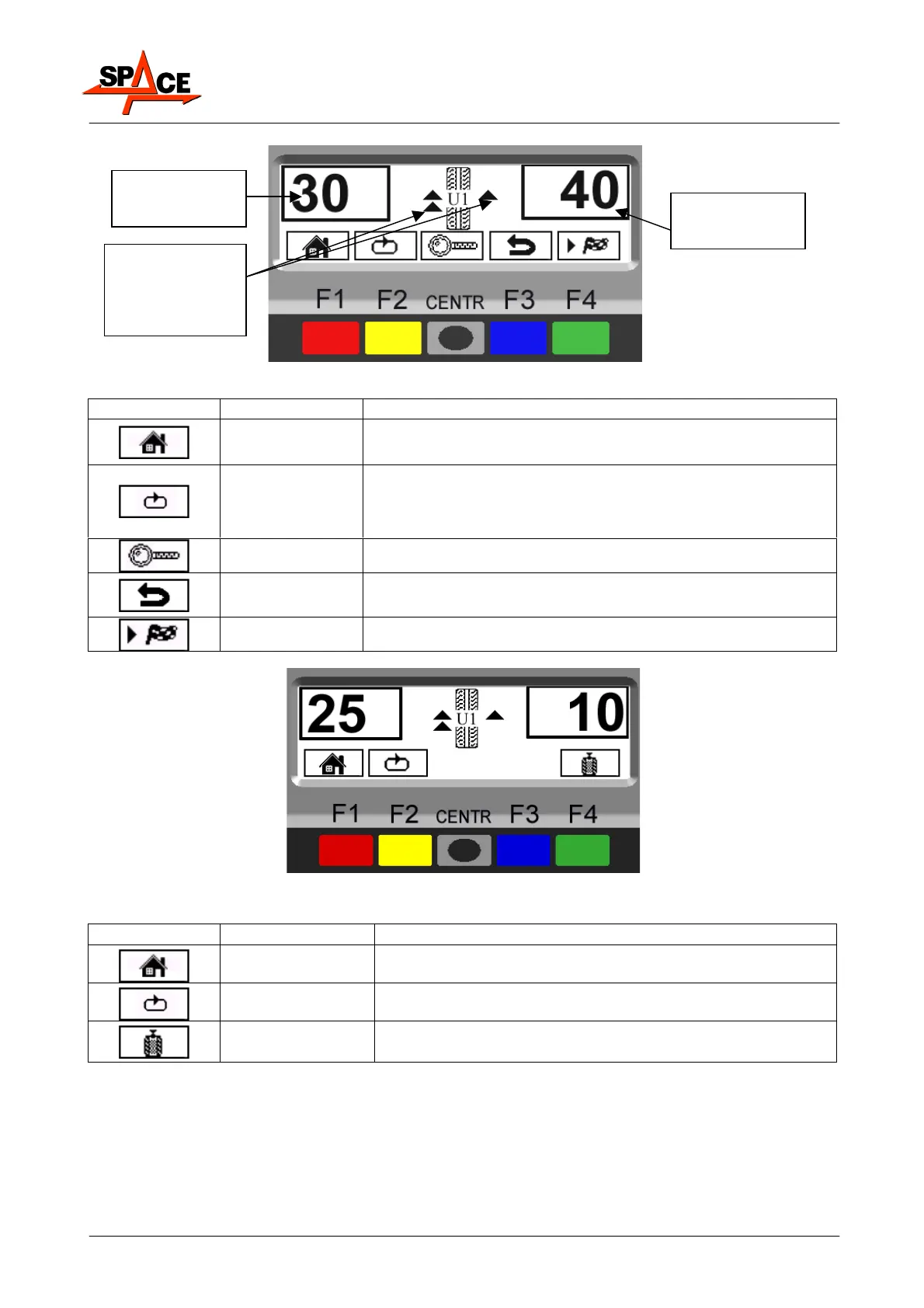

Figure 19
ICON KEY DESCRIPTION
RED (F1)
Return to initial program phase
YELLOW (F2)
Selected
once
: Displays the next row of keys (SPLIT and
MATCHING function para. 10 on page 31)
Selected
twice:
Displays the next row of keys (static
unbalance Figure 20)
CENTRE Displays exact unbalance (pitch 1g instead of 5g)
BLUE (F3) Displays previous page
GREEN (F4) In models ER220 /ER160 /ER165 performs spin
Figure 20
ICON KEY DESCRIPTION
RED (F1) Return to dynamic balancing (Figure 19)
YELLOW (F2) Displays the next row of keys
GREEN (F4) Displays the Static balancing (see par. 7.4.1 on page 23)
Arrows to help
positioning in
correction weight
fitting point
Total outer
weight
Total inner
weight
