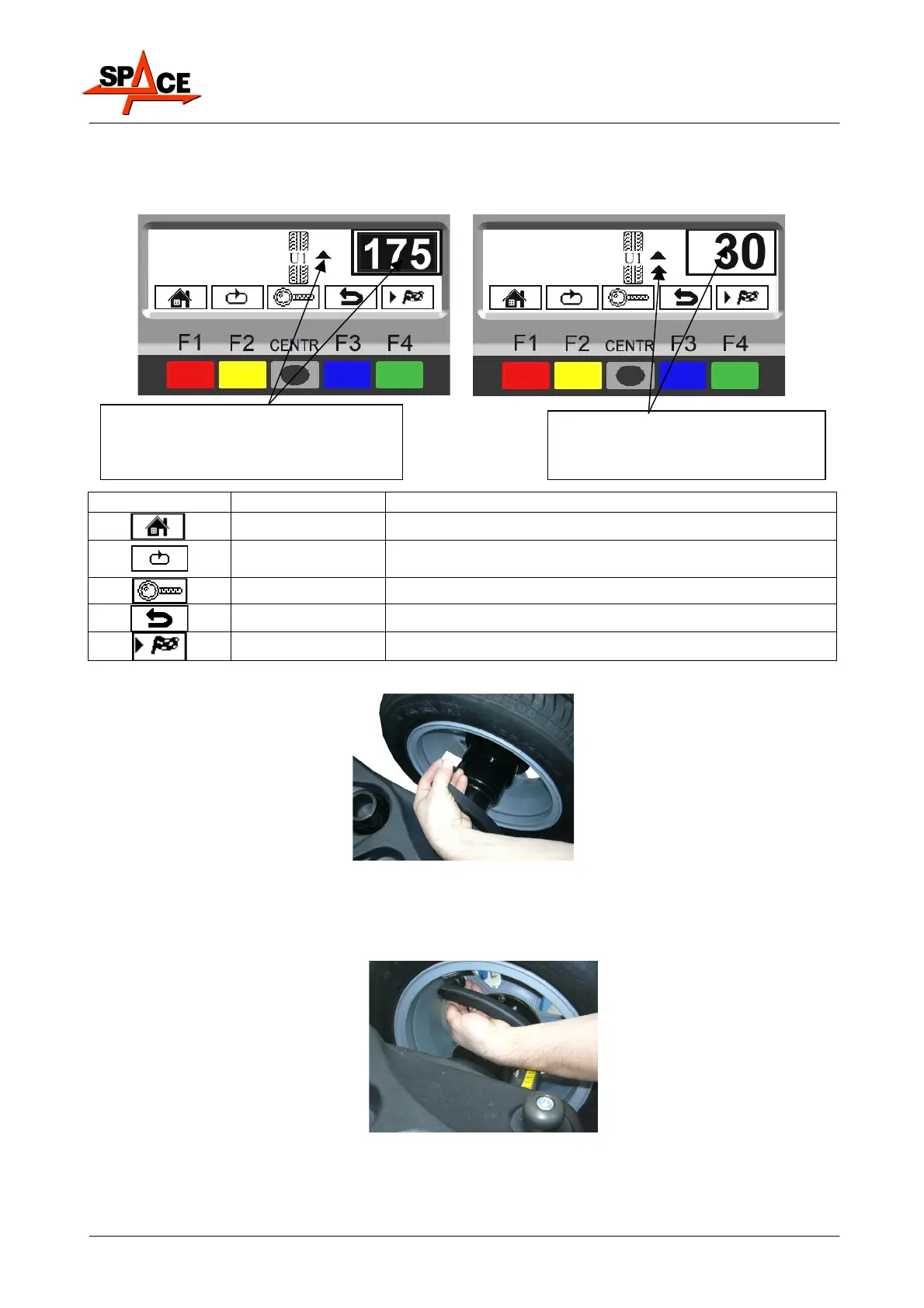

When the wheel has reached weight fitting point (about 12 'o' clock), the display screen
shows the distance for correcting unbalance on a black background. When the wheel is far
from the weight fitting point, the display screen shows the total weight to be fitted (Figure
23). When the unbalance value is known, proceed with positioning for unbalance correction.
Figure 23
ICON KEY DESCRIPTION
RED (F1) Return to initial program phase
YELLOW (F2)
Display next row of keys
(MATCHING Procedure, mod.ER220/ER160/ER165 only)
CENTRE Displays exact unbalance (pitch 1g instead of 5g)
BLUE (F3) Displays the previous page
GREEN In models ER220 /ER160 /ER165 performs spin
Fit the adhesive weight on the measurement rod as shown in Figure 24.
Figure 24
Read the distance measurement on the measurement rod. Fit the adhesive weight on the
outside of the wheel (Figure 25) at the indicated distance (in the example at 175 mm) using a
known weight (the example shows 30g). The position of the outer weight is not visible but
hidden inside.
Figure 25
Check the wheel balancing conditions, by making a trial spin. The display screen must show
an unbalance reset.
The STATIC procedure is now completed.
Distance on black background to correct
unbalance
Value shown when close to fitting point
Total weight to be fitted.
Value shown when distant from
fitting point
