Spectra Engineering MX800 - T29 Connector and Jumper Settings; T29 RJ45 Pinouts; T29 Factory Default Jumper Settings

MX800 Transceiver Technical Manual
© SPECTRA ENGINEERING 2006 Revision 4.2.3
62

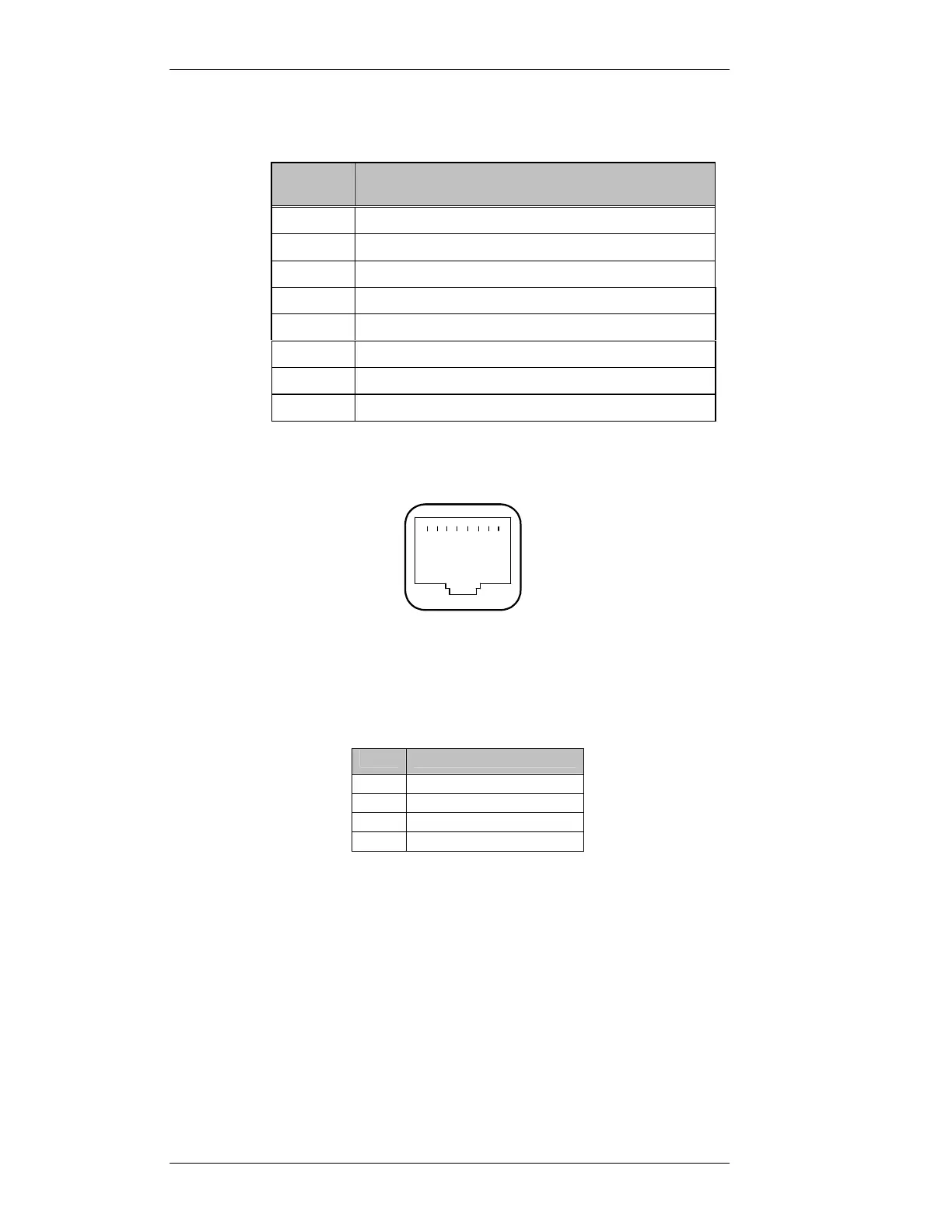

Table 3-12 T29 RJ45 Pin outs.
Figure 3-14 CN9 RJ45 Pin-out Detail (View from Rear of MX800)
JMP
Factory Default setting
1 Position 2-3
2 Not fitted
3 Position 2-3
4 Not fitted
Table 3-13 T29 Factory Default Jumper Setting.
Pin No
T29
Function
5 600ohm balanced RX VF leg a
4 600ohm balanced RX VF leg b
6 600ohm balanced TX VF leg a
3 600ohm balanced TX VF leg b
7 M Lead common
8 M Lead normally open
2 E Lead leg a/M lead normally closed
1 E Lead leg b
1 .................. 8
