1 Unit description
1.1 Function
X-rays excite the atoms of the sample to emit radiation. This radiation is measured
by a semiconductor detector.
The unit is delivered including at least one installed analysis method. Based on the
method data that are stored in the unit, the measured data are used to determine
the composition of an unknown sample. The results are displayed on the screen.

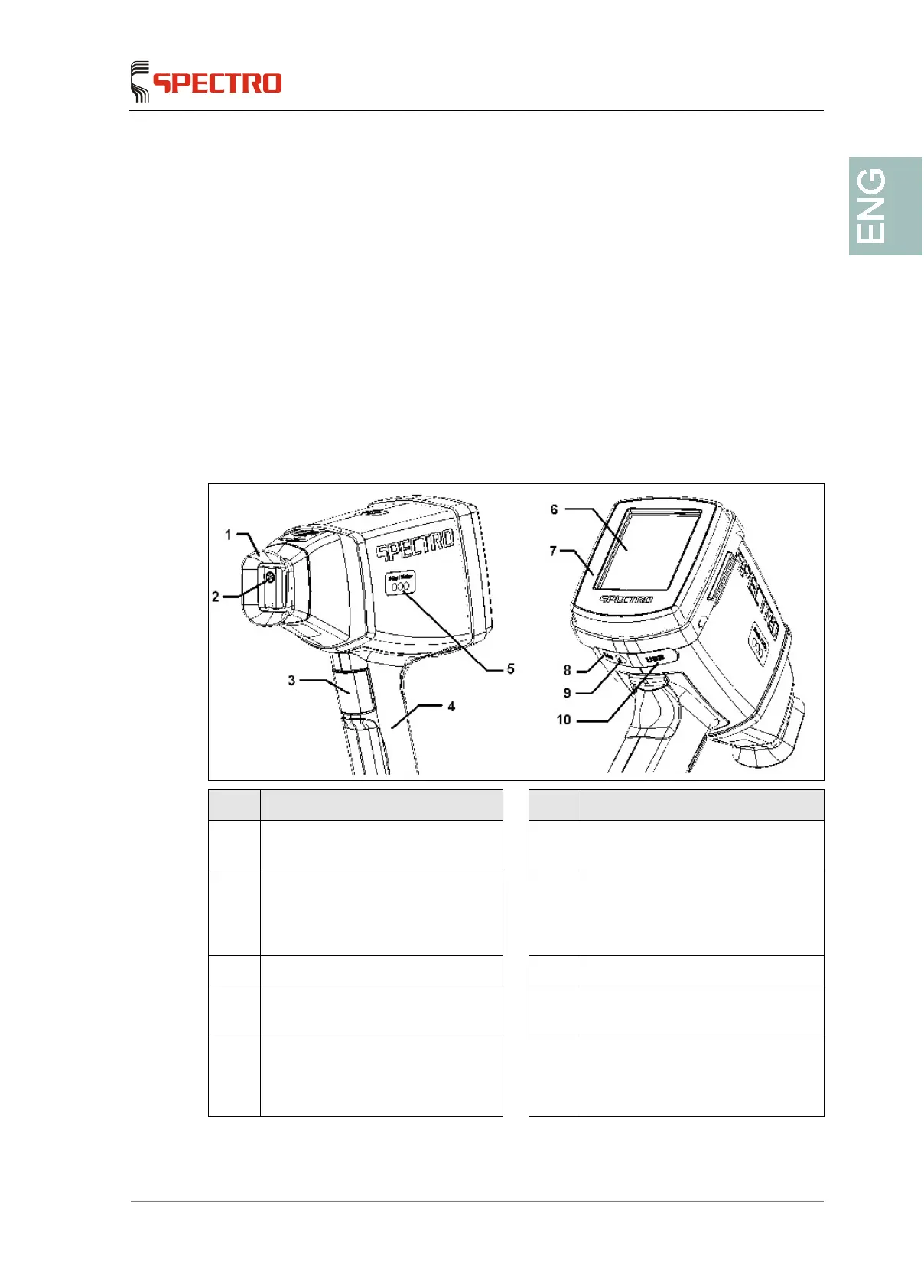

1.2 Overview
1.2.1 Unit
No. Component No. Component
1 Protective sleeve (radiation
protection)
6 Touchscreen
2 Measuring window with shutter
and cover plate
7 Pressure-sensitive display frame
(the corner areas can
accommodate additional
functions)
3 “Start measurement” button 8 Helium port
4 Handle/storage battery pack 9 Power supply ON/OFF switch
(power)
5 Display:
Shutter open/closed
X-ray tube ON/OFF
10
USB and mini USB port (e.g. for a
USB stick or for the connection to
an PC)
