10 SPECTRO xSORT — 05.09.2014
1.4.2 Handling

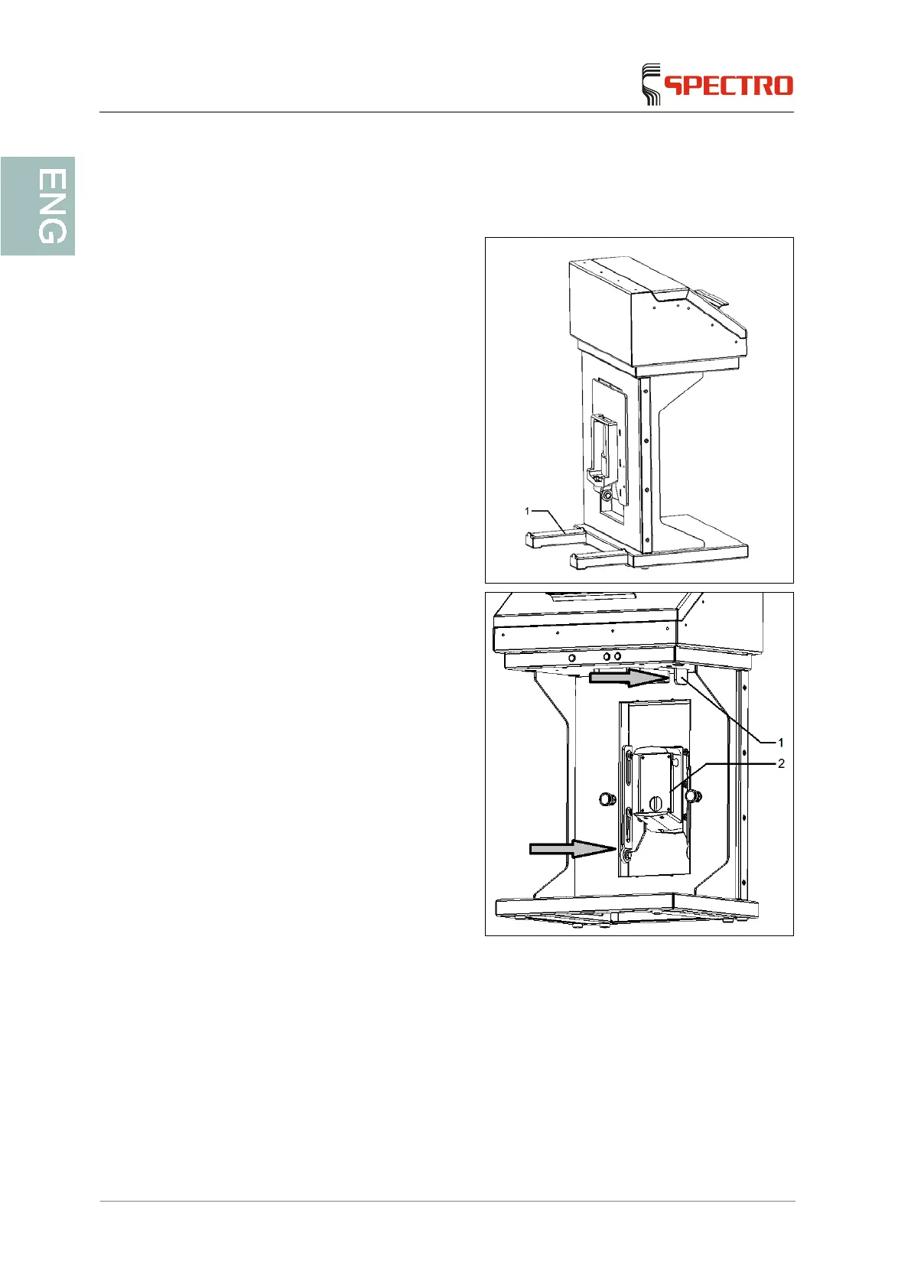

Please proceed as follows in order to install the unit in the docking station:
1. Pull the support legs (1) from the
bottom plate and place the
docking station on a stable
surface
2. Push the fastening latch (1) to
the back.
3. While pulling both locking pins
simultaneously, ensure that the
support (2) is in the lower
procession.
