1.4 Docking Station
The docking station (Item no.: 77060802) is not part of the delivery scope.
The protective sleeve must always be used.
For the safe analysis of non-metallic or small metallic samples, the unit can be
integrated in the docking station. If these samples are not examined in the docking
station, the radiation protection shield 2.6.4 must be used.

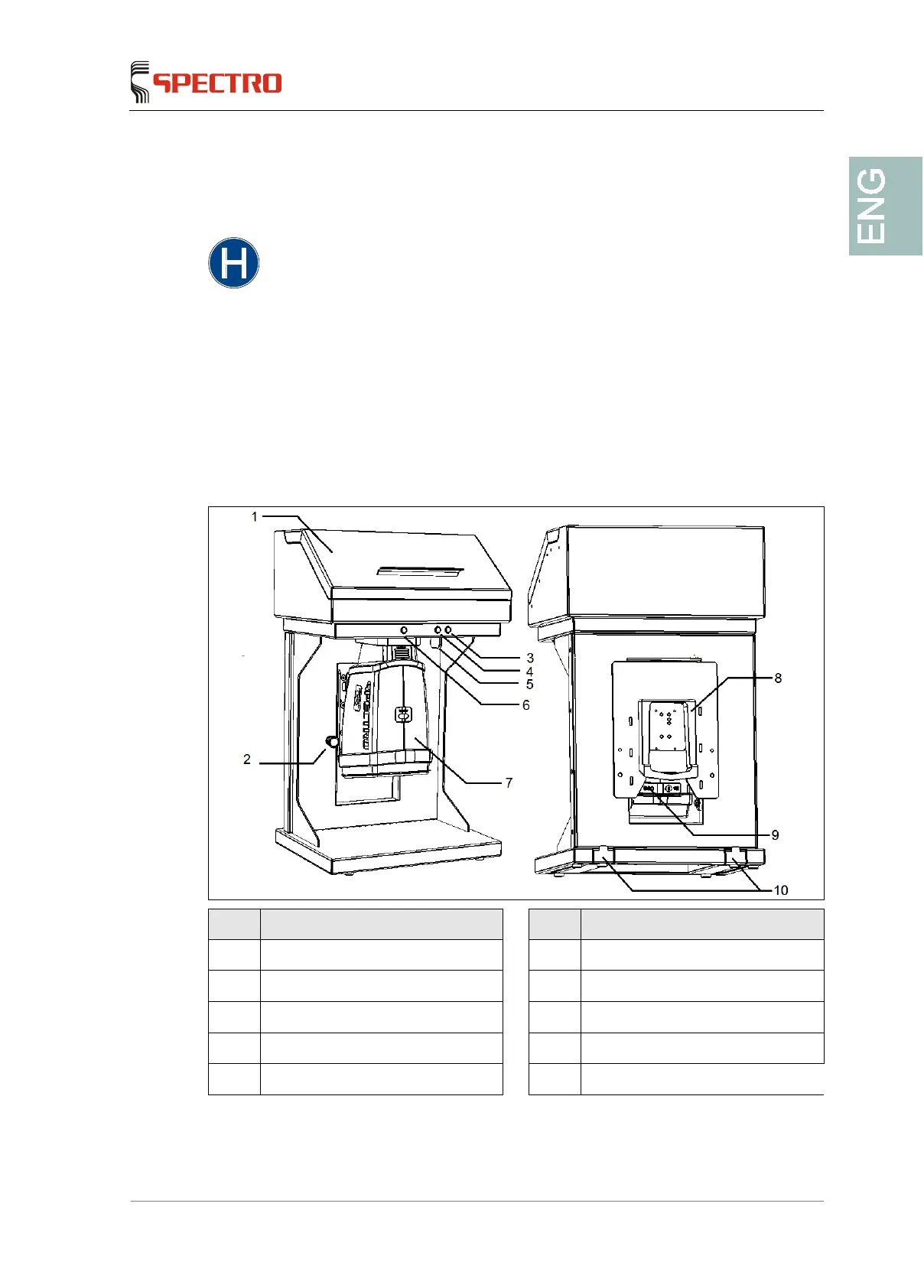

1.4.1 Overview
No. Component No. Component
1 Cover of the sample chamber 6 X-rays ON indicator (red)
2 Locking pin 7 SPECTRO xSORT
3 Display: Shutter open (red) 8 Equipment and handle support
4 Display: Shutter closed (green) 9 USB port
5 Fastening latch 10
Support legs
