20 SPEKTRUM NX20 • TRANSMITTER INSTRUCTION MANUAL
EN
Telemetry
The telemetry system in the NX20 is compatible with all
generations of Spektrum telemetry DSMX telemetry systems
including module based, receivers with integrated telemetry, and
Smart technology.

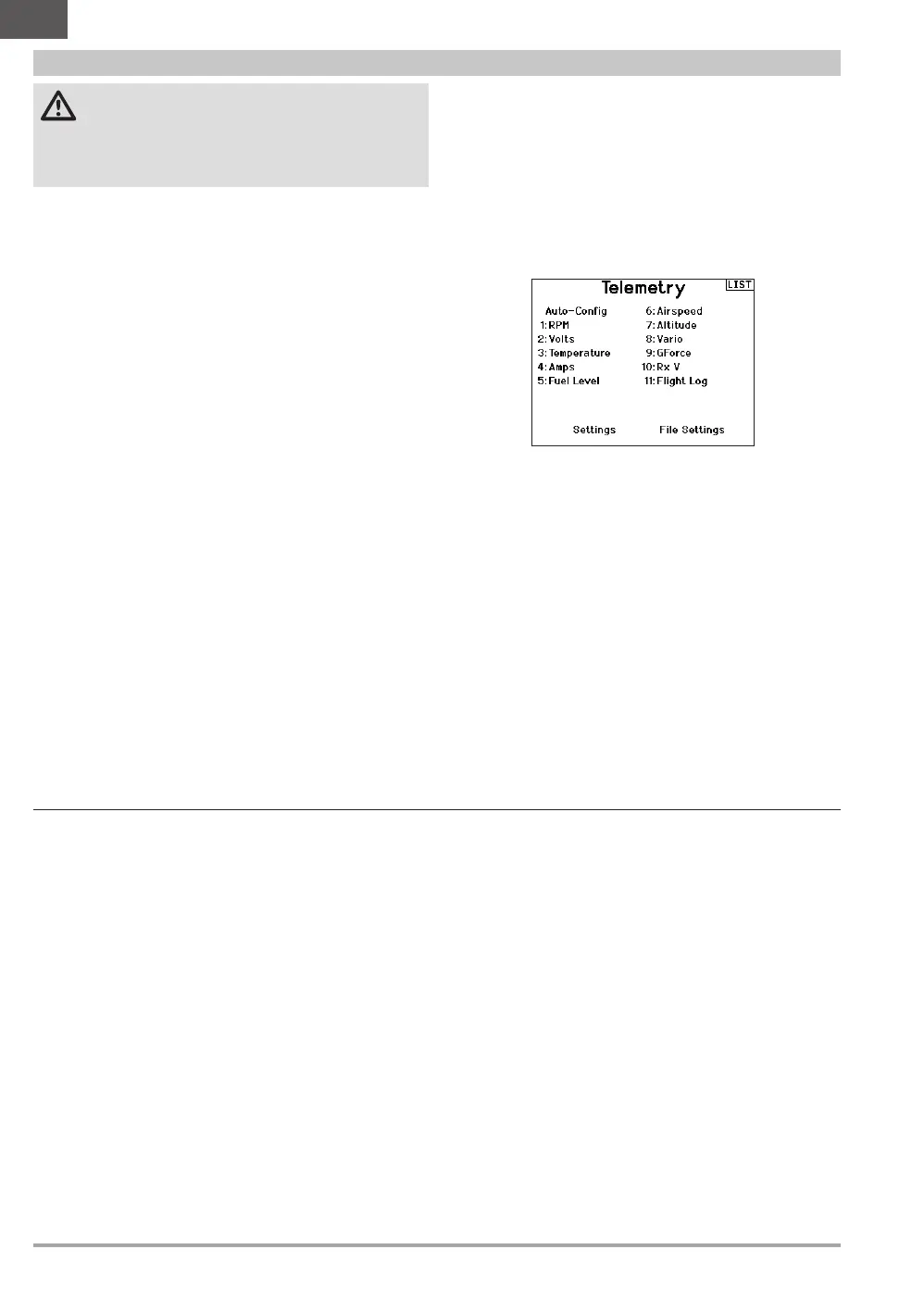

Telemetery data
Select the Telemetry menu. Each slot on the telemetry list can be
populated with one telemetry sensor. Select a sensor to adjust
by scrolling to the line with the scroll wheel, and press the scroll
wheel. Scroll to select the sensor. Press the scroll wheel to open
the page where you can adjust the details for that sensor. Each
sensor will have a different page to reflect that type of data. Select
Inh under Alarm to choose the type of alarm desired. Options
include Inh, Tone, Vibe and Voice.
Set the Status and Warning Reports to alert you of telemetry data.
Status Reports:
Status Reports automatically report the data on a given interval.
Leave the setting at INH to keep it off, or select a time setting for
how often the transmitter reports the data for that sensor.
Warning Reports:
Warning Reports determine how often a telemetry alert occurs,
if an alarm is active.
Voice reports may also be set in Audio Events, which is accessible
from the Function List.
Telemetry Auto-Configuration
When a receiver is bound to the transmitter, it will complete the
auto-config setup automatically.
IMPORTANT: The Auto-Config option is not available from the
System Setup>Telemetry menu. RF signal must be transmitting
when you use the Auto-Config option. When the System Setup
menu is active, RF signal is off. Use the Telemetry menu in the
Function list to access Auto-Config.
CAUTION: If you access the Telemetry menu from the
Function List, you may see a Frame Loss appear when
you exit the menu. The Frame Loss is not an error, but there will
be a momentary loss of radio signal when exiting the Telemetry
screen. DO NOT access the Telemetry menu during flight.
