6 SPEKTRUM NX20 • TRANSMITTER INSTRUCTION MANUAL
EN

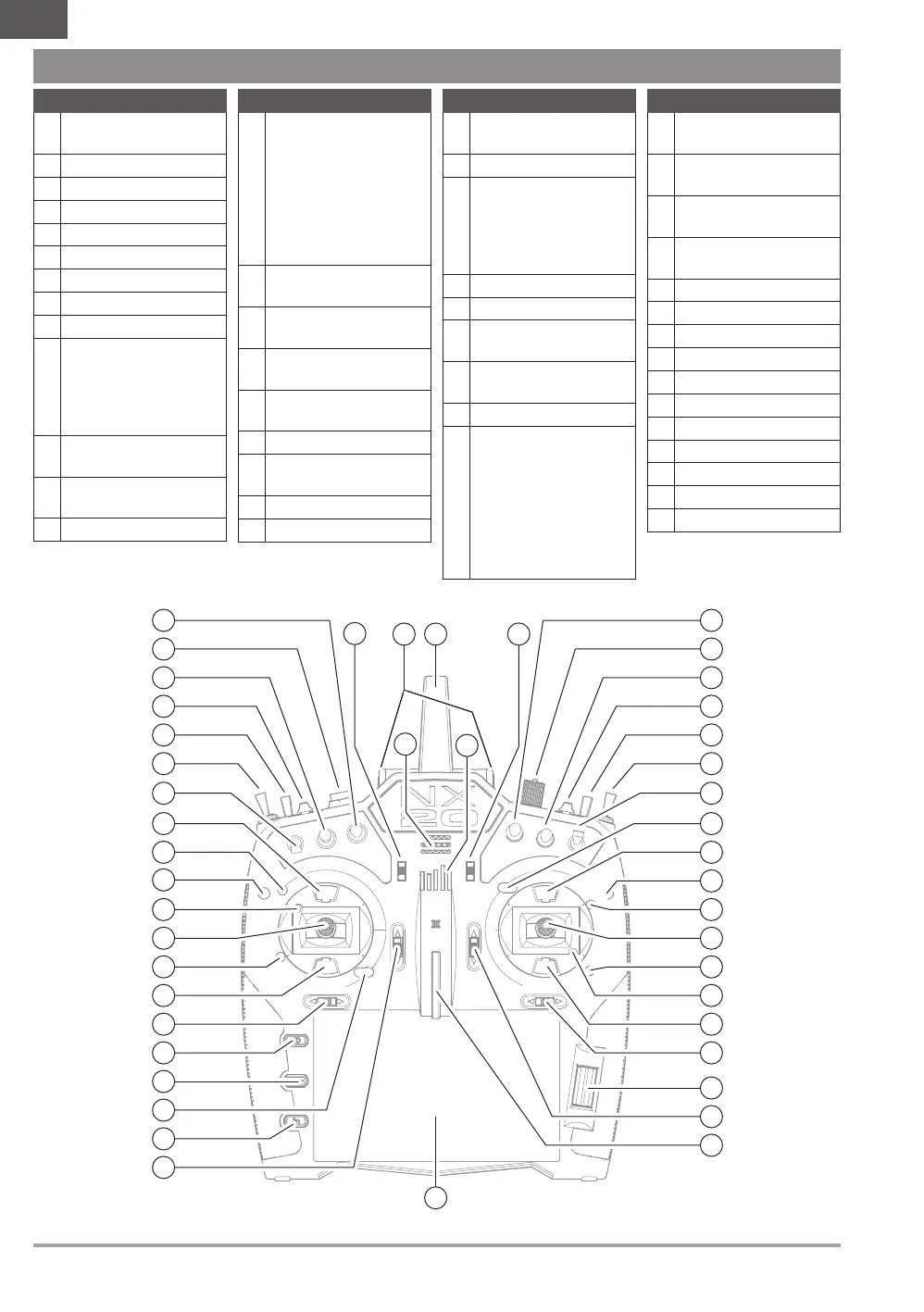

TRANSMITTER FUNCTIONS
Function
1
On/Off Switch and RF LED
Indicator
2 R Trimmer
3 Switch E2
4 R Knob
5 Switch E
6 Right Top Trimmer
7 Switch H
8 Switch G
9 Switch F
10
Throttle Tension
Adjustment
Throttle Ratchet
Adjustment
(Mode 1, 3)
11
Gimbal Travel Limiter
Access Panel
12
Rear Lever Tension
Adjustment*
13 Mode Change
Function
14
Throttle/Aileron Stick
(Mode 1)
Elevator/Aileron Stick
(Mode 2)
Throttle/Rudder Stick
(Mode 3)
Elevator/Rudder Stick
(Mode 4)
15
Up/Down Gimbal Stick
Tension Adjustment
16
Left/Right Gimbal Stick
Tension Adjustment
17
Gimbal Travel Limiter
Access Panel
18
Aileron Trim (Mode 1, 2)
Rudder Trim (Mode 3, 4)
19 Scroll wheel
20
Elevator Trim (Mode 1, 3)
Throttle Trim (Mode 2, 4)
21 Neck Strap Mount
22 LCD
Function
23
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
24 Function Button
25
Throttle Tension
Adjustment
Throttle Ratchet
Adjustment
(Mode 2, 4)
26 Back Button
27 Clear Button
28
Rudder Trim (Mode 1, 2)
Aileron Trim (Mode 3, 4)
29
Gimbal Travel Limiter
Access Panel
30 Mode Change
31
Elevator/Rudder Stick
(Mode 1)
Throttle/Rudder Stick
(Mode 2)
Elevator/Aileron Stick
(Mode 3)
Throttle/Aileron Stick
(Mode 4)
Function
32
Left/Right Gimbal Stick
Tension Adjustment
33
Rear Lever Tension
Adjustment*
34
Up/Down Gimbal Stick
Tension Adjustment
35
Gimbal Travel Limiter
Access Panel
36 Switch C
37 Switch B
38 Switch A
39 Left Top Trimmer
40 Switch D
41 I Button
42 Switch D2
43 L Trimmer
44 Speaker
45 RF LED Indicators
46 Antenna
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
46
1
45 2
3
4
5
6
7
2
3
4
5
6
7
8
9
13
14
15
16
17
18
19
20
21
22
10
11
12
