54 SPEKTRUM NX20 • TRANSMITTER INSTRUCTION MANUAL
EN
Gimbal Travel Limit
Each gimbal has a switch at the top and bottom that can limit the
travel on that stick’s vertical movement.
Adjusting the gimbal travel limits
1. Remove the covers
2. Move the switches toward the center of the transmitter to use
the full travel available.
Move the switch to the outside of the case to reduce travel.

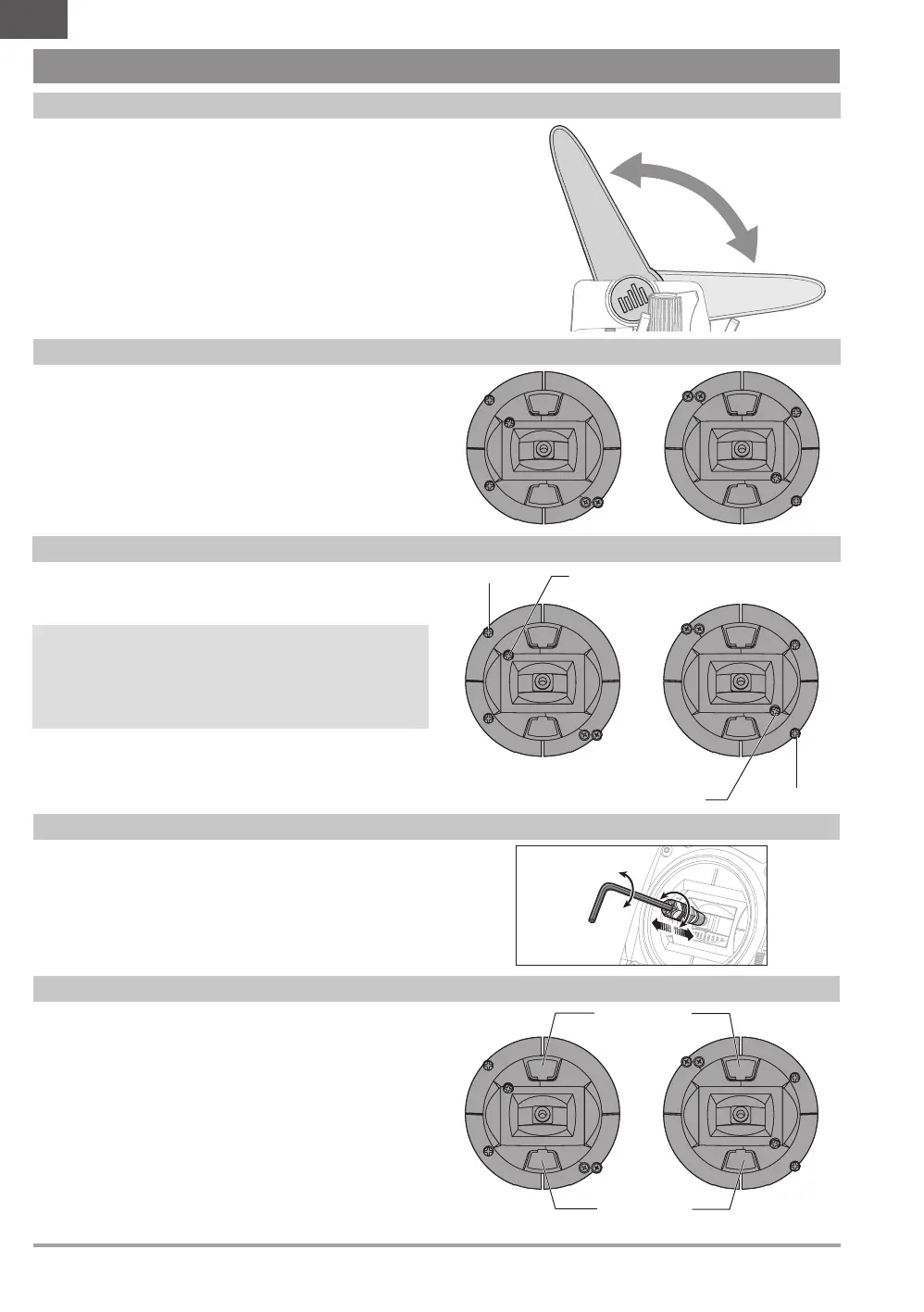

PHYSICAL TRANSMITTER ADJUSTMENTS
Adjust Stick Tension
Turn the screws clockwise a small amount using a small Phillips
screwdriver to tighten the stick tension and counter clockwise to
loosen.
NOTICE: Always do a test of stick tension while turning these
screws to ensure stick tension is not too loose or too tight.
Tightening a screw too much can damage a spring. Loosening a
screw too much can let a spring fall off and cause short-circuit
in the transmitter.
Control Stick Length Adjustment
1. Using a 2mm Allen wrench, turn the setscrew in the stick
counterclockwise to loosen it.
2. Make the stick shorter by turning it clockwise or longer by
turn ing it counterclockwise.
3. After adjustment of stick length, tighten the setscrew.
The NX20 has all the physical transmitter adjustments located
around the gimbal face of each gimbal. This arrangement allows
for quick and easy adjustments with out taking the back cover off
or removing any plugs to access adjustment screws.
Available adjustments:
• Adjust the stick cvtension
• Change between throttle tension modes (smooth or ratchet)
• Gimbal travel limit
• Mode conversion
Vertical Tension
Vertical Tension
Horizontal Tension
Horizontal Tension
Gimbal Travel
Limit Switches
Gimbal Travel
Limit Switches
Gimbal Adjustments
Antenna Position
We recommend setting up your antenna to be positioned vertical
when you are in your most comfortable position for flying. The
antenna may also be folded for storage.
