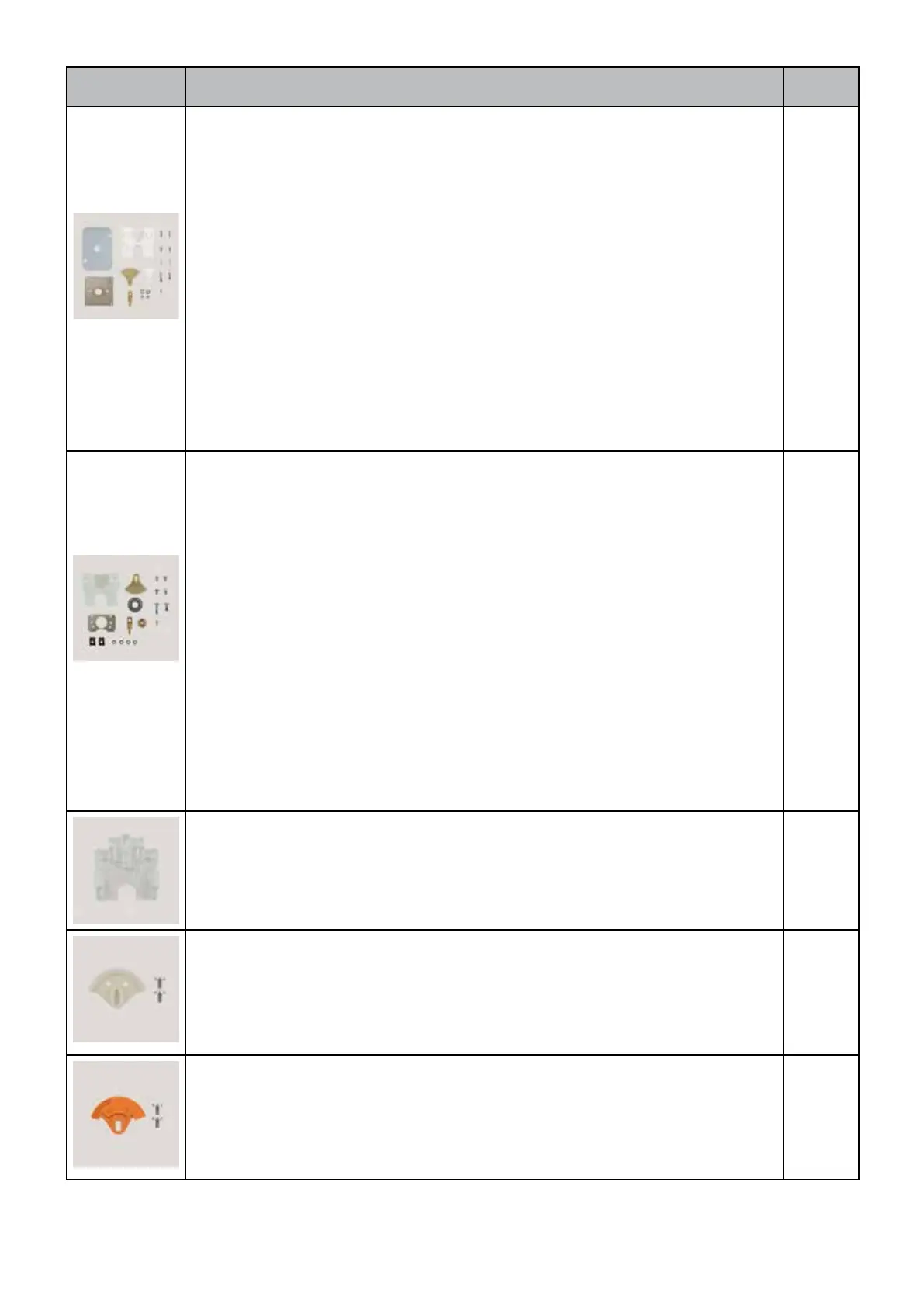

Spare part Name/items supplied No.
Coupling for potentiometer PQxx
(PD550/PW55) for VCS0 joystick
1x CS071 F potentiometer clip for CS0 potentiometers Bxx, PQxx, PDxx, PBxx
1x ZR.01.014.010 gearwheel M=1 Z=14 for VCS0 with potentiometer PW55
1x CS071 FC bearing plate compl. for potentiometer PQ VCS0
1x cover plate PVC hard crystal clear
2x ISO 7045 M3x10 steel 4.8 galvanized pan head screw with cross head H
2x locking washer S3 blackened spring steel, bare
2x DIN 921 M3x12 steel 5.8 galvanized at head screw with slot and large head
1x potentiometer cam shaft 1x toothed segment for potentiometer drive
1x ISO 7045 M3x6 steel 4.8 galvanized ws pan head screw with cross head H
1x at head screw 1x at head screw 2x locking washer S4
2x washer S4
37263
Coupling for potentiometer PZxx
(PD200) for VCS0 joystick
1x CS071 F potentiometer clip for CS0 potentiometers Bxx, PQxx, PDxx, PBxx
1x ZR.01.015.002 gearwheel M=1 Z=15 Ø=3.0 date: 28.01.2016
1x grub screw
1x coupling plate 1x potentiometer centering ring 1x potentiometer cam shaft
1x toothed segment for potentiometer drive
1x ISO 7045 M3x6 steel 4.8 galvanized ws pan head screw with cross head H
2x NS045-39 A clamping lug for encoder
2x ISO 4017 M4x6 steel 8.8 galvanized A2K hex head screw with thread to the
head
4x locking washer S4
2x at head screw with hexalobular socket 1x at head screw 1x at head
screw
53538
Empty chamber without contacts
for VCS0
1x empty chamber without contacts
51902
Cam disk
unprogrammed for VCS0
1x cam disk unprogrammed
2x DIN 921 M3x6 5.8 VZ TX10 at head screw
51889
Cam disk
unprogrammed, red for VCS0
1x cam disk red unprogrammed
2x DIN 921 M3x6 5.8 VZ TX10 at head screw
51890
