STACK ST8100 Display System Error! Main Document Only.Chapter 5. Installing the Display System
Users Guide 27
The following connections are shown in greater detail:
• Standard contact breaker system
• Series Resistor Connection
• Contactless system
• Lucas CD (Spark box) system
The connection of the Display System to these types of ignition system is
described below:

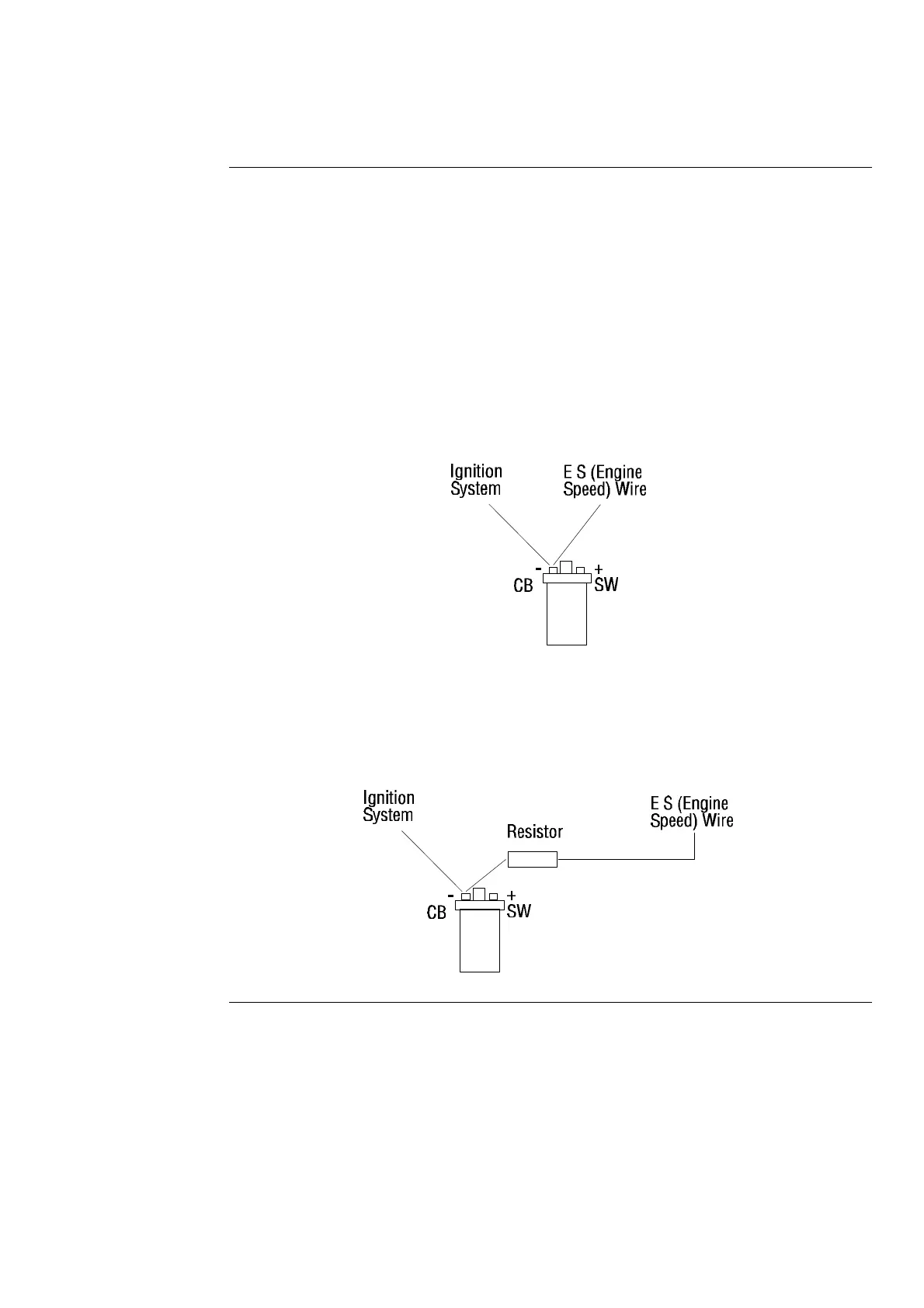

Standard contact breaker systemStandard contact breaker system
Connect the ES (Engine Speed) wire to the negative terminal on the coil.
Series Resistor ConnectionSeries Resistor Connection
The Series Resistor Connection requires a resistor on the ES (Engine
Speed Wire).
