5.3.12. Motor type settings
In the Application Settings Device configuration -> Motor type

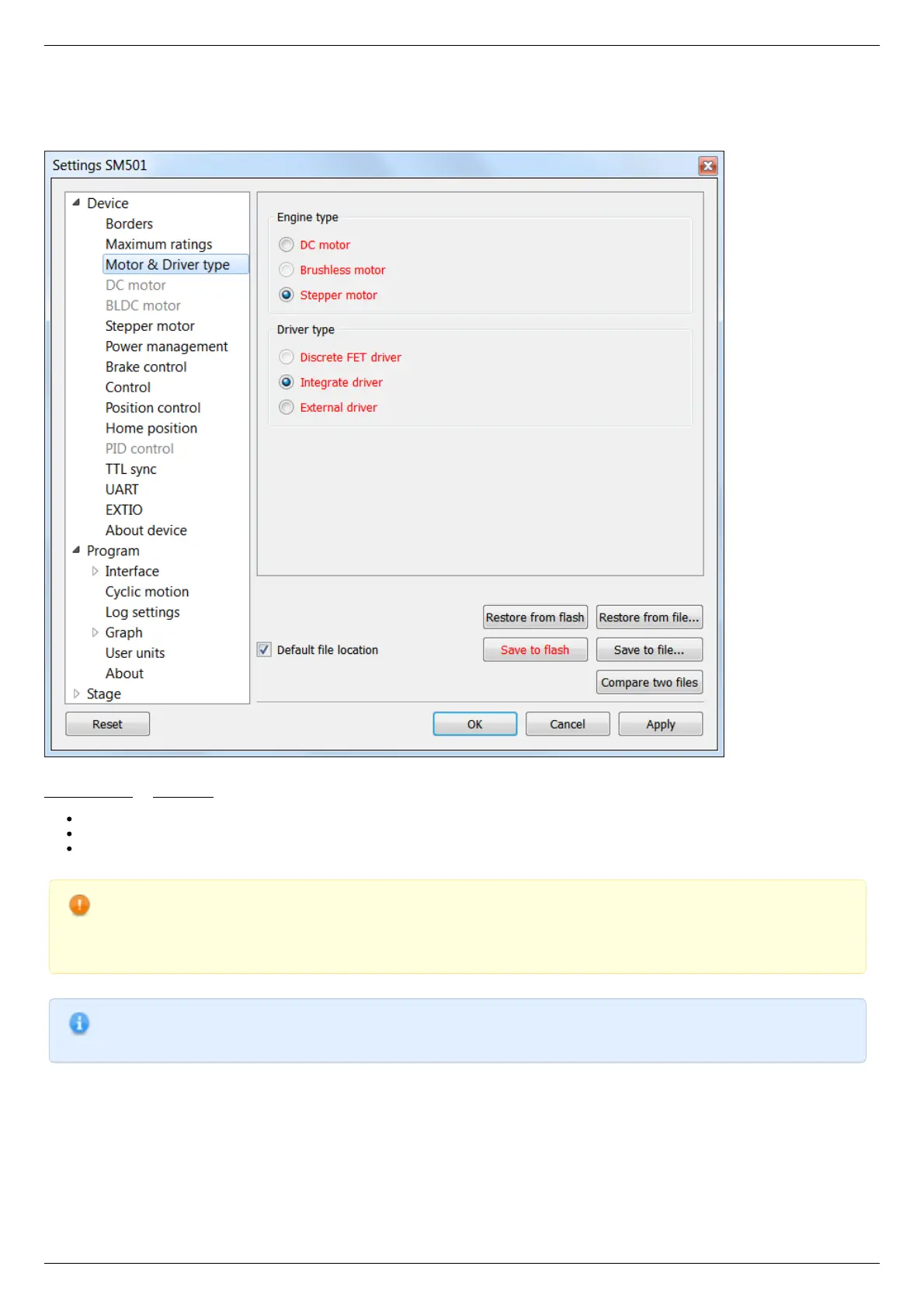

Motor type settings window
Stepper motor or DC-motor - motor type indication. Control power driver should be selected as well:
Integrated. This type is used for this controller modification.
On discrete keys. Will be used in future versions.
External driver. Designed to control stepper motors using three standard signals (see External driver control interface)
Warning. Driver type or motor type change is a critical operation that should not be performed while motor rotates.
To implement the change correctly the motor winding should be de-energized and turned off, after that motor type
can be changed and motor of another type can be connected. The same applies to changing of integrated driver to
external one and vice versa.
Note. Available motor types are determined by your firmware upgrade. Available control drivers depend on the
controller board type, except for the external driver.
