4.3.5. Operation with encoders
Application of encoders
Encoders are designed for creation of accurate and fast feedback according to the coordinate for all the electric motor types.The
feedback is performed by the motor shaft position, by stage's linear position, by the motorized table rotation angle or by any other
parameter related to the shaft position and measured by using the two-channel quadrature encoder complying the requirements
described in Specifications SMC5 chapter for the appropriate controller type. Controller 8SMC5 supports differential encoders and
simple (single-ended) encoders.
What is quadrature encoder?
Encoder is a mechanical motion sensor. The quadrature encoder is designed for direct detection of the shaft position. The sensor
transmits the relative shaft position by using two electric signals at СН А and СН В channels shifted relative to each other at 1/4 of
period.

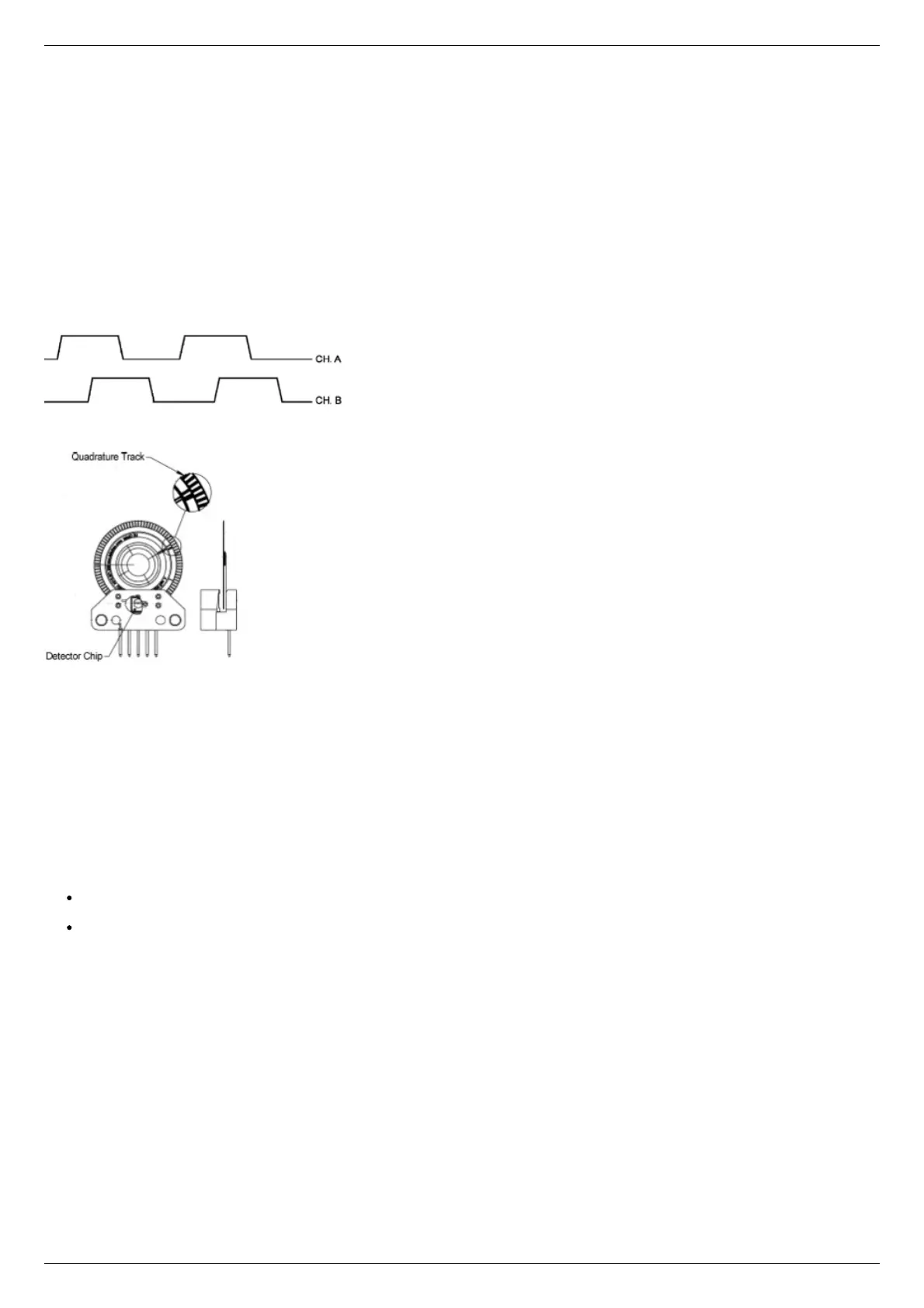

The signals at СН А and СН В outputs of quadrature encoder.
An optical quadrature encoder mechanics.
An optical quadrature encoder mechanics is shown at the figure above. There are two optocouplers used. The operational principle of
an optocoupler is as following: a LED and a detector are arranged opposite to each other from different sides of a disc. The optocoupler
opens when disc's "window" coincides with the detector (the outgoing signal is logic zero). The outgoing signal is logic one if the
detector is closed by opaque part of the disc.
Number of steps per revolution (CPR) is the main parameter of the quadrature encoder. The standard resolution values for encoder are
from 24 to 1024 CPR. Each period of signal alteration is interpreted by 1, 2 or 4 codes which is corresponding to X1, X2 and X4
operating modes. This controller uses the most accurate X4 mode. The maximum frequency of each encoder's signal depends on the
applied encoder itself, since for 200 kHz in X4 mode the controller can read up to 800,000 encoder counts per second.
Controller's features
There are two operating modes with encoder available for the controller:
the encoder is used as the main position sensor (this is the main operating mode for DC motors and the optional one for stepper
motors).
slippage, backlash or steps loss detection (the recommended mode for joint operations with stepper motors, in case the encoder
is not used as a primary position sensor, see more).
Driving encoder mode
This is the mode when all parameters of the engine including position and velocity are measured directly by the encoder and are
denominated basing on counts of encoder. The position is displayed directly in the encoder counts, the speed is denominated in RPM
(revolutions per minute). The speed is calculated by the controller basing on the speed alteration data as well as on the number of
encoder pulses per one complete revolution of the motor shaft that are displayed in feedback configuration block at the Settings of
kinematics (Stepper motor), (DC motor) folder. Note that in the case of DC motor the speed maintaining mode, the mode of
movement to the predefined point as well as all their derivations use PID control algorithms and the appropriate settings are required.
The driving encoder mode optimizes stepper motor control, this leads to noise reducing and facilitates a stable passage of the resonant
speeds with no risk of steps loss when the coordinate flounders and the recurrent calibration is required.
New! New motor control algorithm is included in the latest firmware. The algorithm add encoder close-loop feedback suppressing
motor oscillations and acoustic noises. It makes almost all motors several times faster without any step loss. It all comes with a free
update of firmware and software. The new algorithm is available with firmware 4.0.7+ which can we downloaded from our Software
page or updated through XiLab. Use XiLab 1.13.13+ and set Feedback to Encoder on the Device configuration -> Stepper motor page.
Note, that position is in encoder counts now.
