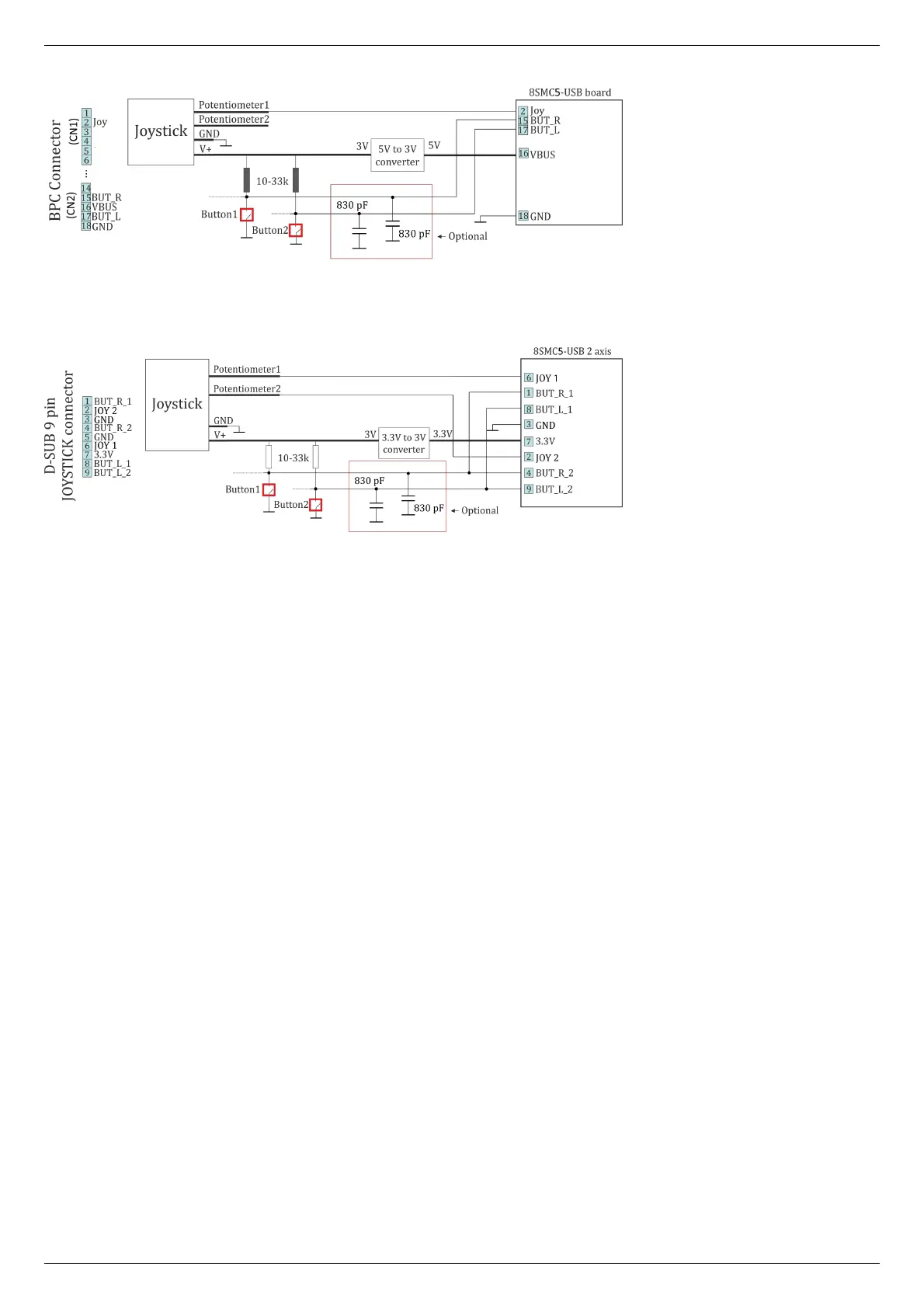

Connection of joystick to the controller board via BPC connector
One-axis and two-axis systems
Joystick connector is available only in two-axis system. A connection diagram is shown below.
Connection of joystick to the two-axis system via D-SUB 9 pin connector
