Clutter time

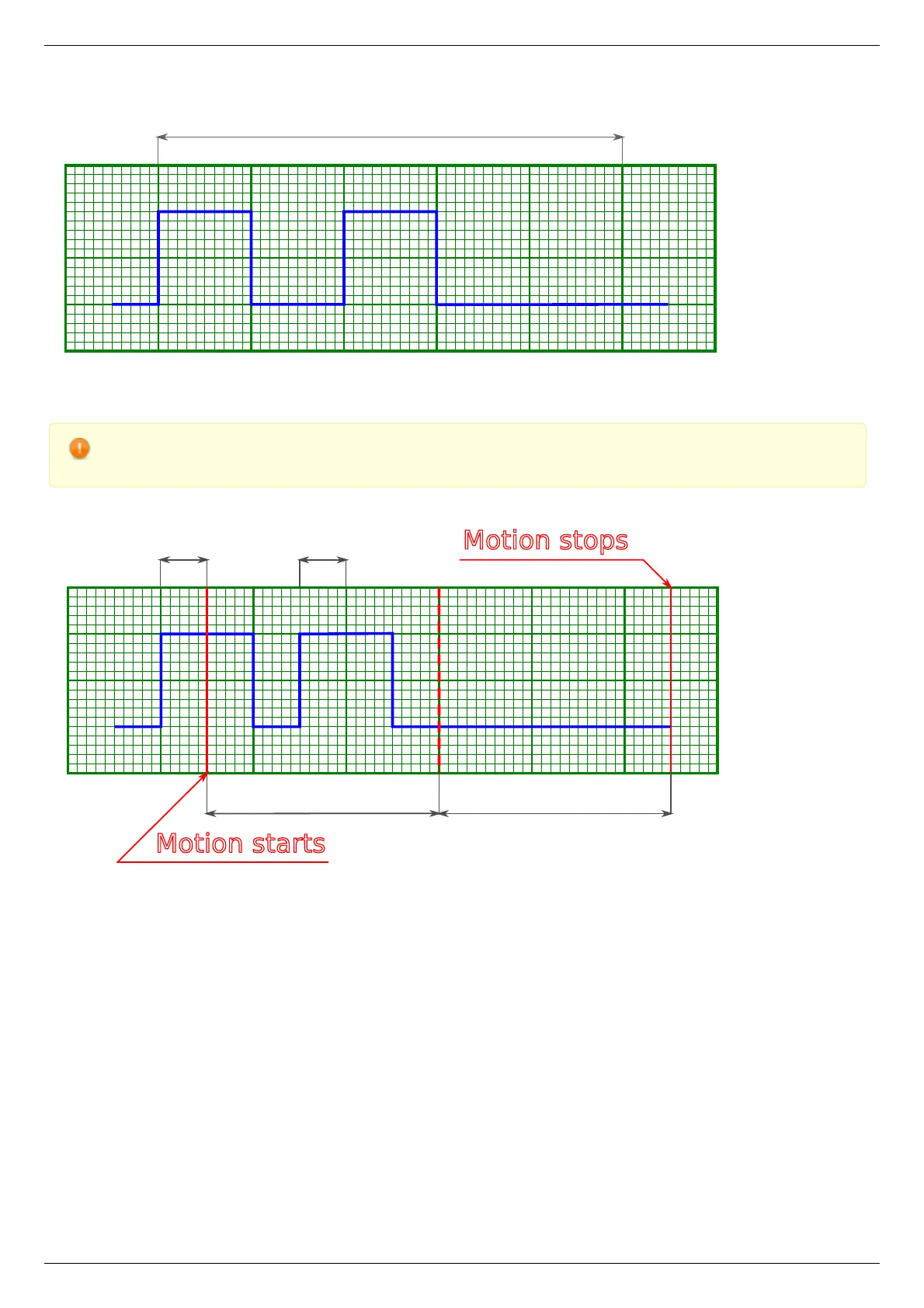

Movement does not start because input pulses are shorter than debounce time
Warning. If a second syncin pulse is received while controller is still moving then the end position will be offset by
two times the shift distance from the start, if a third pulse is received, then by three times, etc.
Clutter time
Clutter time
Moving time
Moving time
Motion starts
Motion stops
One-time movement with double shift length because second syncin pulse came in before the end of the movement
