Helios Users Guide
www.starcomgpsglobal.com 29
Attaching the battery (optional)
NOTE: Connecting the battery to the unit must be carried out very carefully.
Use caution to avoid causing damage to the battery and the unit.

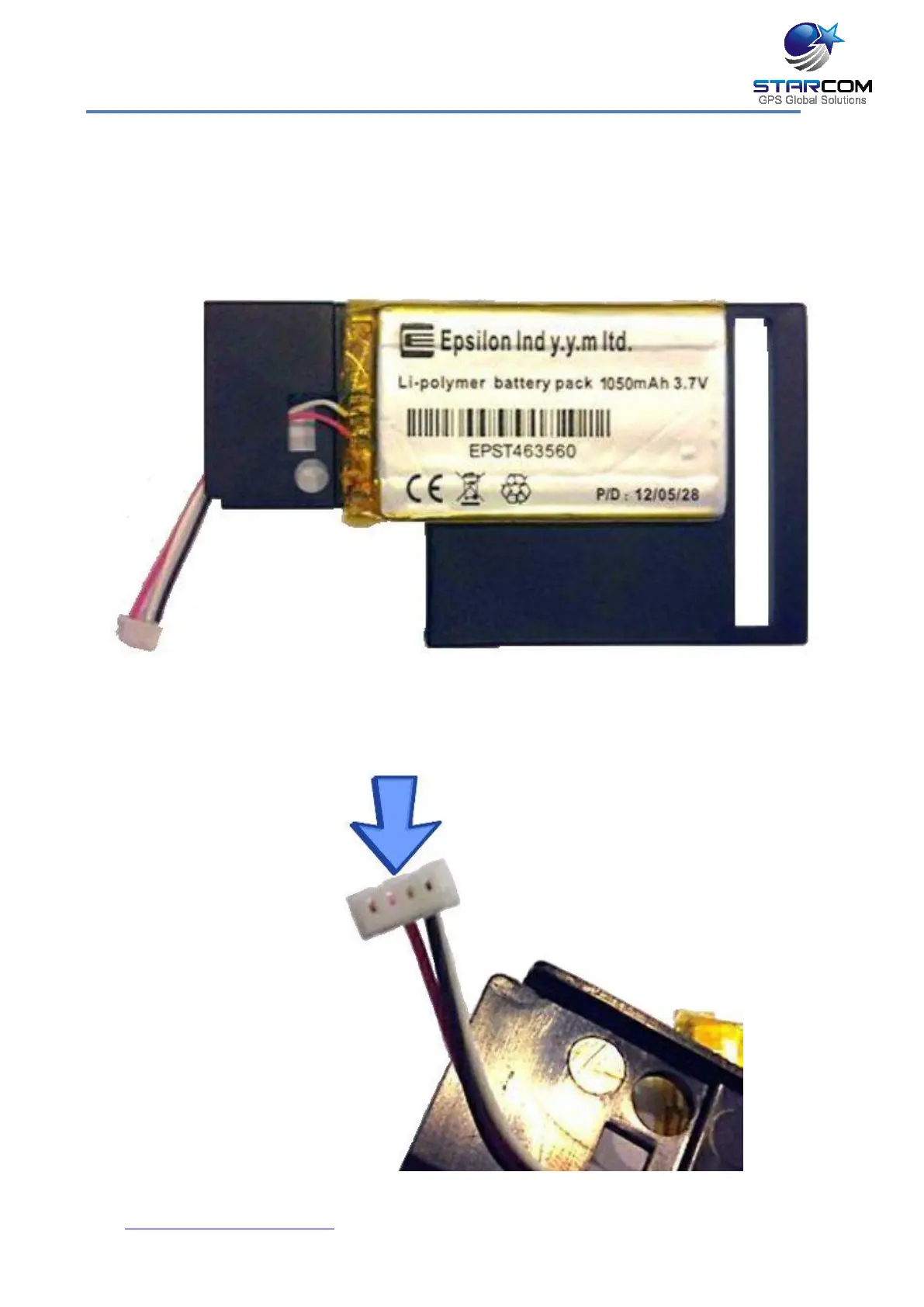

Place the battery on the divider, as shown in the following image.
Verify that you’re connecting the battery connector to the connector on the unit
board correctly. The side of the battery connector with the pinholes located
closer to the edge
