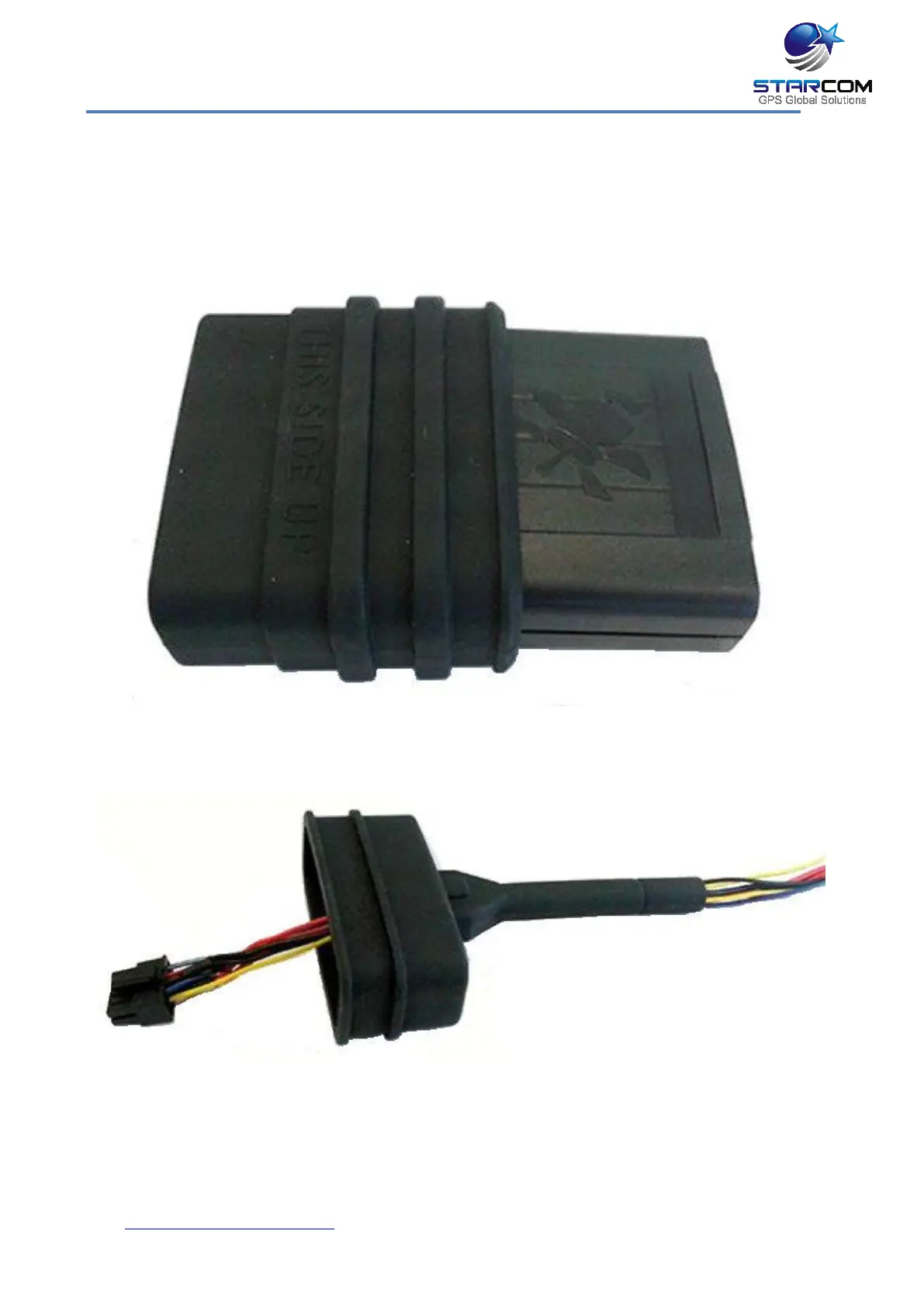

Donning the Helios TT waterproof casing
Insert the Helios TT unit in the larger part of the waterproof casing so that the
GPS antenna side of the unit corresponds to THIS SIDE UP side of the casing,
as shown in the image below.
Insert the Helios TT wire harness into the smaller part of the waterproof casing,
as shown in the image below.
