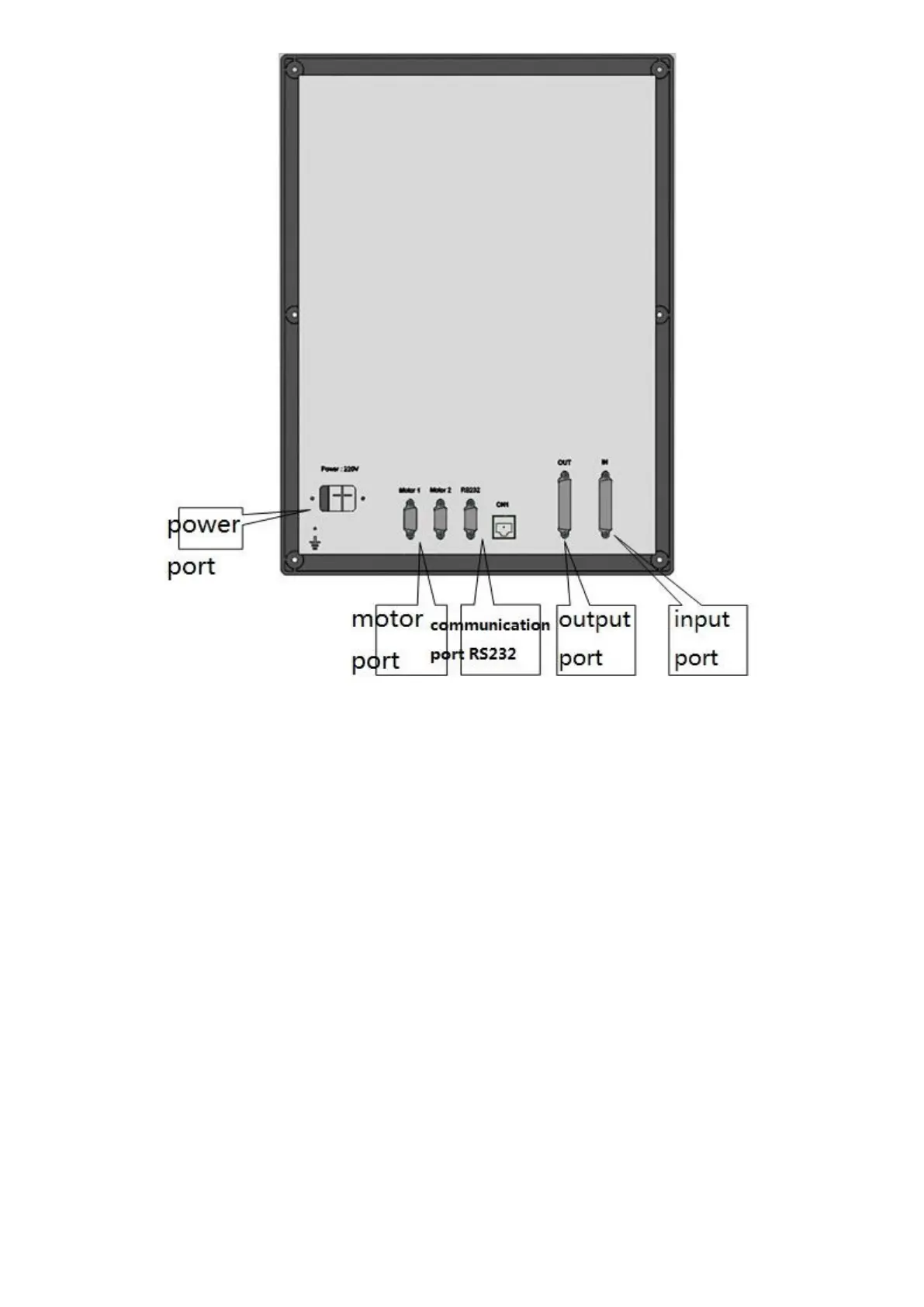

Input signal port: 25-pin X 1
Output signal port: 25-pin X 1
Communication signal port: 9-pin X 1, RJ45 internet access X 1
Motor signal port: 9-pin port X 2
Power port: 3-pin plug
1-8 Signal port
Output principle diagram
