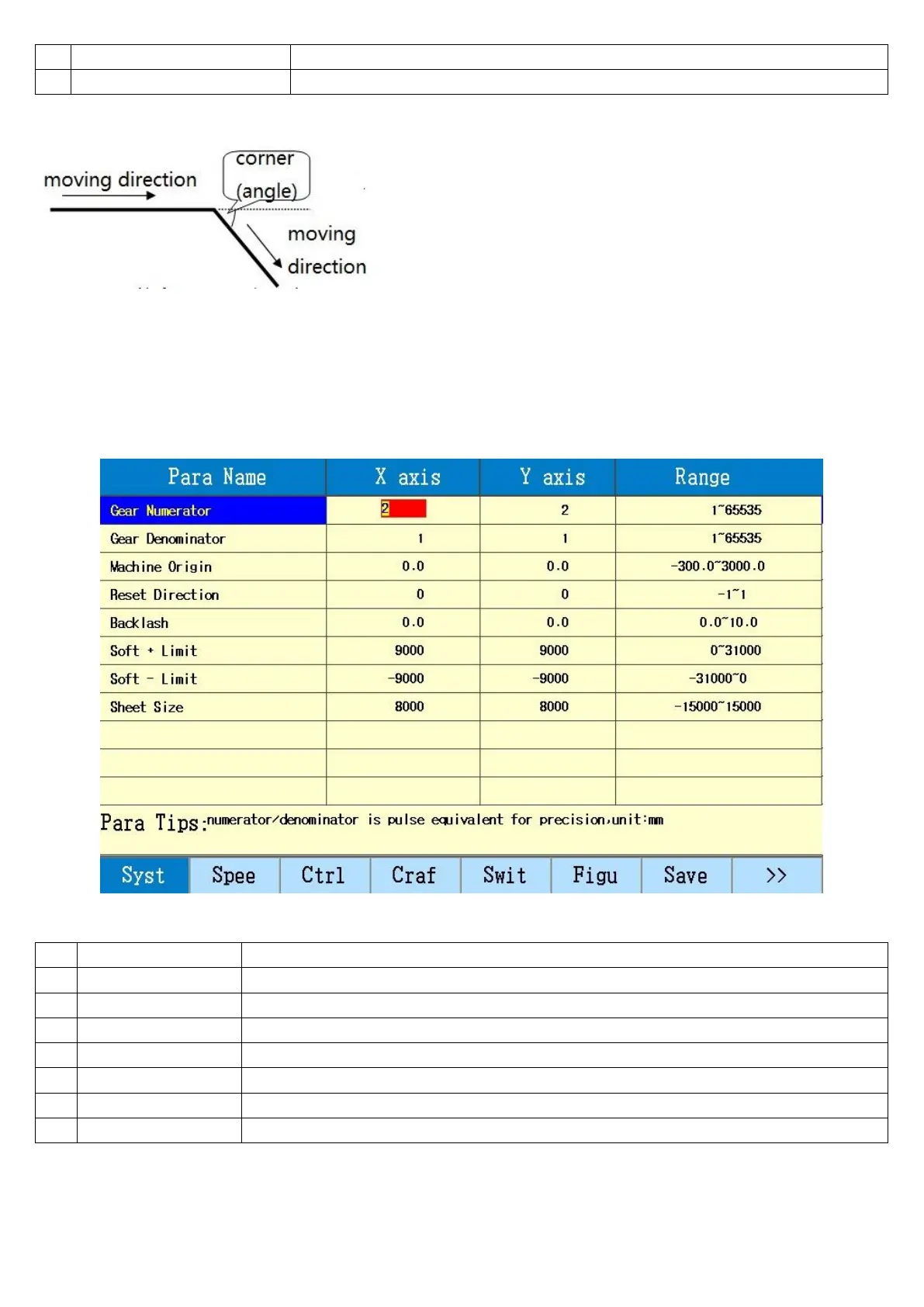

Corner Speed Limit
Auto mode, max. speed of cutting the corner between two sections
Note: when change direction during torch movement, controller will lower speed in advance to avoid torch
shake.
In fact, torch shake is caused by different factors, such as inertia, machine rigidity and so on, users can set the
corner speed to improve steadiness.
System
1
Gear Numerator
Numberator/denominator is pulse equivalent, for machine accuracy, unit: µm
2
Gear Denominator
Numberator/denominator is pulse equivalent, for machine accuracy, unit: µm
3
Machine Origin
Machine origin coordinate, a certain position coordinate for machine 0 point
4
Reset Direction
-1 negative direction, 0 don’t move, 1 positive direction
5
Backlash
Mechanical gap when compensation direction change
6
Soft + Limit
Positive direction max. value of machine coordinate
7
Soft - Limit
Negative direction max. value of machine coordinate
8
Sheet Size
Gear Numerator and Denominator: Numerator/denominator is pulse equivalent; controller sends a pulse, the
torch movement distance,
Example: numerator is “2”, denominator is “1”, and pulse equivalent is 0.002mm.
