● current torch position
○ torch expectant position

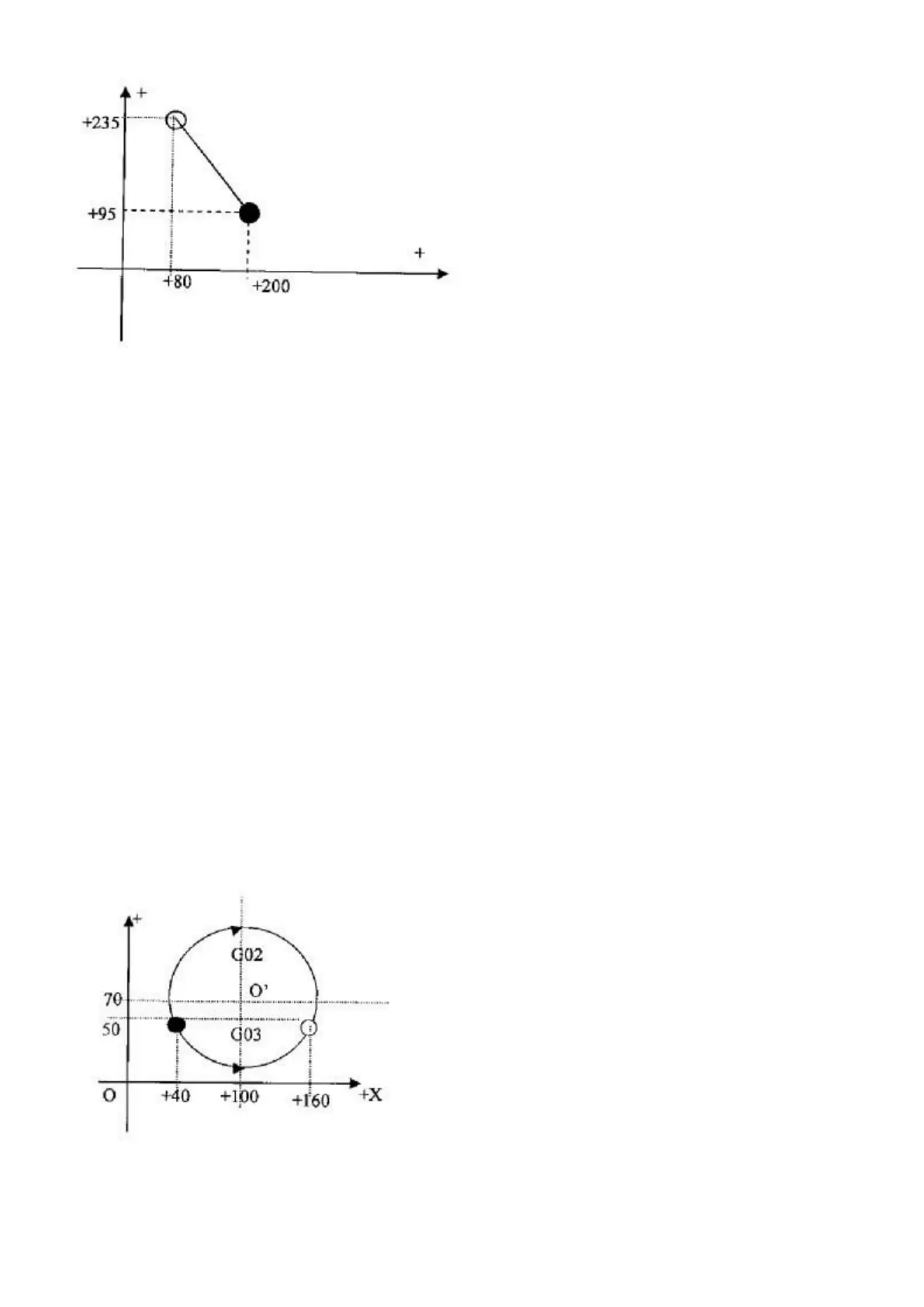

6) G02/G03 arc cut
This command is for arc interpolation, clockwise arc G02, anticlockwise arc G03,
Format: G02[03] X[U]n Y[V]n In Jn [Fn] or G02[03] X[U]n Y[V]n In Rn [Fn]
G02[03] PPn In Kn [Fn] or G02[03] PPn Rn [Fn]
e.g. (G02)
G92 X0 Y0
G00 X40 Y50
G02 X160 V0 I60 J20
G28
M02
e.g. (G03)
G92 X0 Y0
G00 X40 Y50
G03 X160 V0 I60 J20
(or G03 X160 V0 R63.25)
G28
24
M02
● current torch position
○ torch expectant position
Instruction:
I、J are X axis, the center of the circle in Y axis has a increment for starting point
