After start, controller will work as below,
1, deal with parts cutting program, draw parts preview figure.
2, output and delay time and other movements.
3, control torch up/dwon.
4, port input signal.
5, speed adjustment.
6, refresh figure and state.
Dynamic figure display: During cutting, controller dynamically displays current torch position, can zoom
preview figure.
Z zoom in
Y zoom out
G restore
Note: after zoom in preview figure, controller can automatically move the figure and follow the torch position,
if moves too fast, maybe refresh figures frequently.

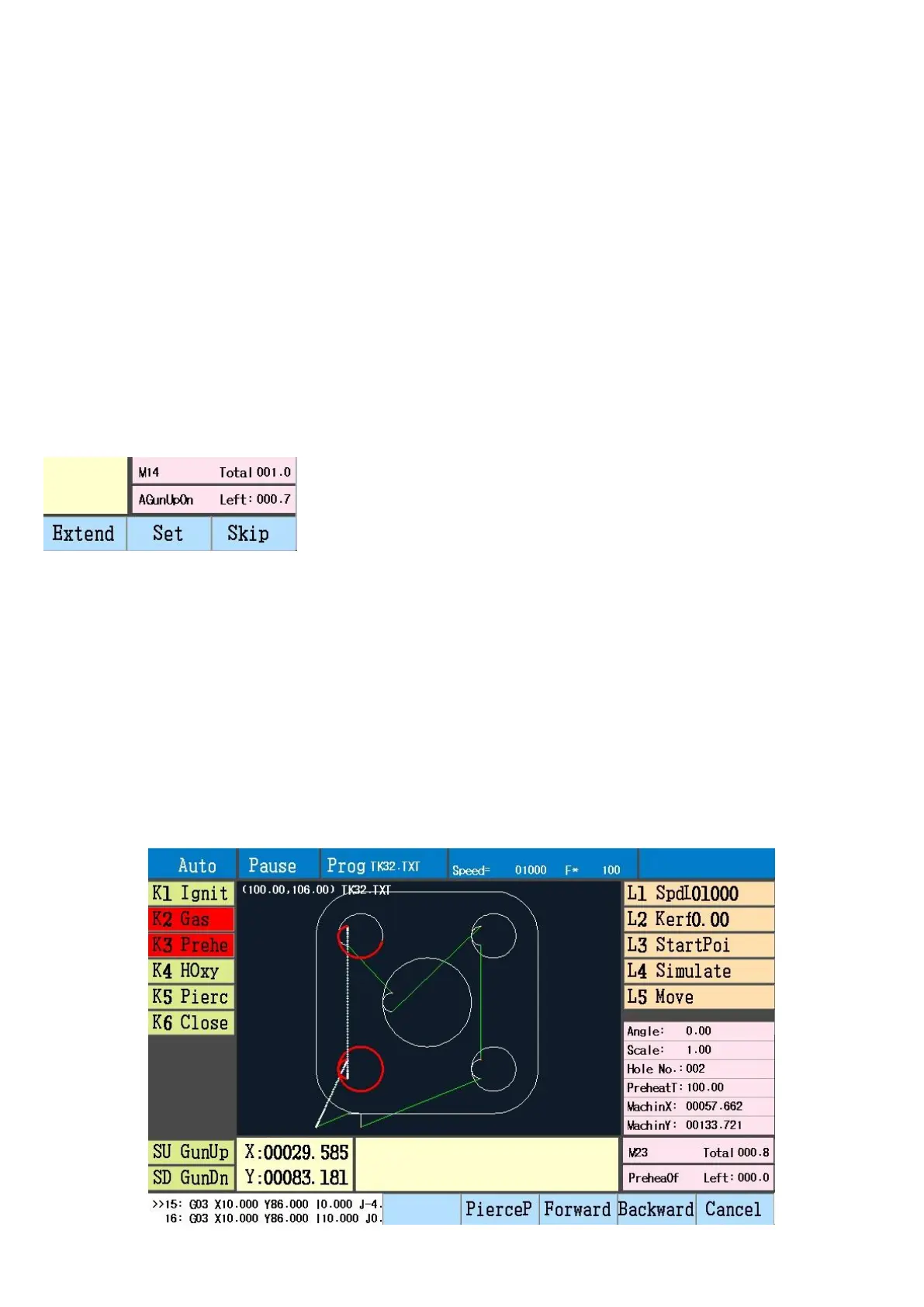

Delay timer: During cutting, delay has timer, can operate “extend”, “set” and “skip”.
F6 extend time, add 100s.
F7 set current time as operation time of the same movement. Time setting in parameter also changes.
F8 skip left time, can’t change time setting of same operation and parameter.
Note:
1, in flame mode, load new file, the initial preheat time is 100s.
2, when delay, press start button is like skip button, pause button is like extend button.
3, flame: ignition and pierce time; plasma: arc strike and pierce time. Set before cutting.
Pause during auto cutting
After cutting, not delay, can press pause to stop cutting, close output, slow speed and stop torch movement,
after pause, controller records current position as break point.
When pause, can operate output control at left side, torch up/down and speed adjustment, and can operate
