Start Shaphon CC-M3 User Manual

1
Torch Up Time
Time of torch moving up after cutting
2
Torch Down Time
Torch lifter has no location switch (zero point switch), location
feedback set 0, torch down time, torch height is arc strike height;
when check location feedback, down all the time till zero point
3

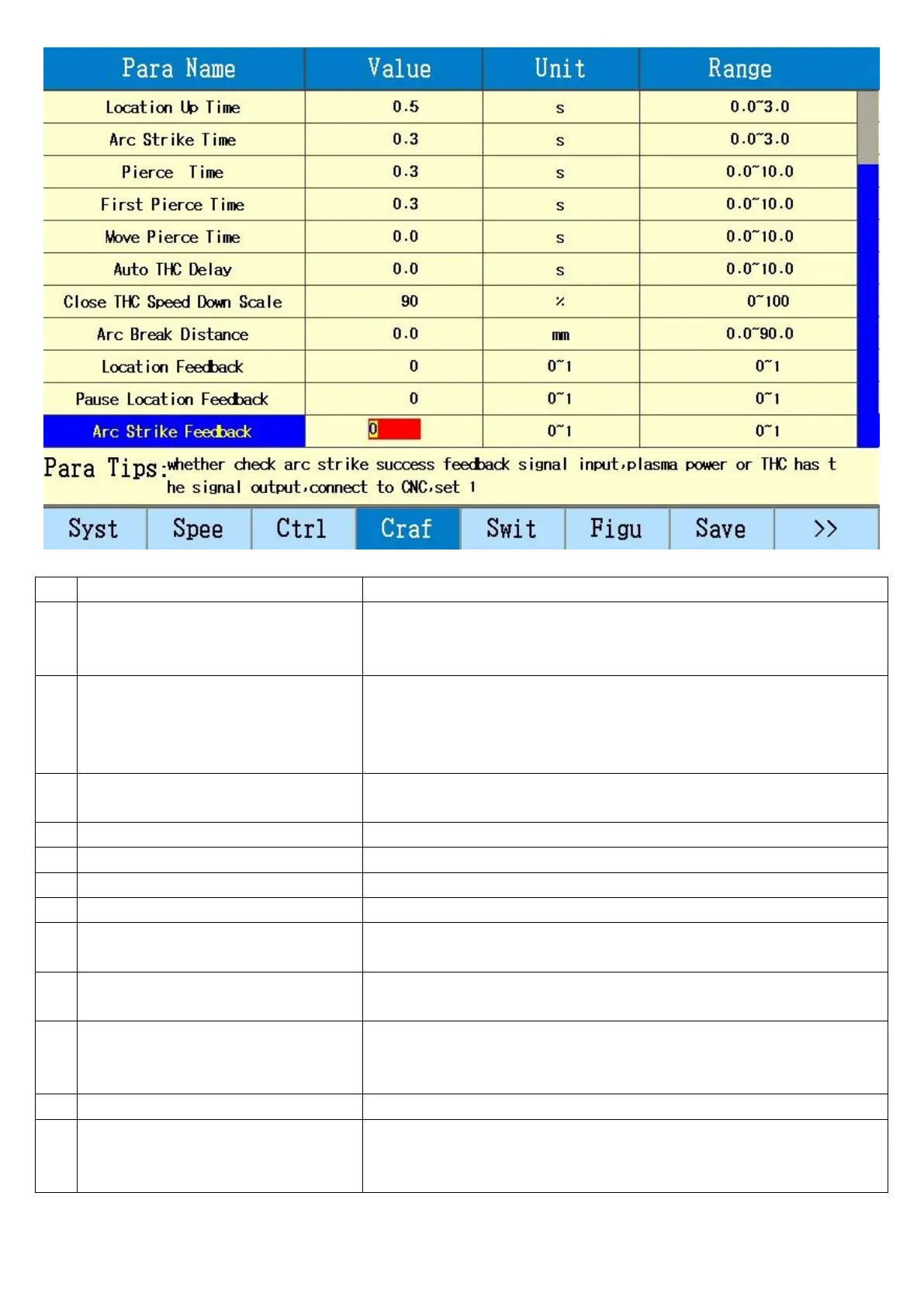

Location Up Time
When location feedback valid, check location switch signal input,
close torch down output, open torch up output, keep location up
time and then close, torch height is location height (arc strike
height)
4
Arc Strike Time
Time of opening arc strike switch, end till check arc strike success
feedback signal
5
Pierce Time
Time of torch at pierce height, to pierce though plate
6
Move Pierce Time
Keep output during pierce, XY axis start to move
7
Climb Time
After finish cutting, time of torch moving at climbing speed
8
Stop time
After finish cutting, time of torch stopping movement
9
Auto THC Delay
After torch starts to move, open height adjustment auto signal
output
10
Close THC Speed Down Scale
During cutting, speed down to setting range, close THC auto signal
output, reduce arc voltage THC wrong action
11
Arc Break Distance
Set a position before end point, close arc strike output in advance,
finish left cutting by left temperature to reduce overburn, close
THC auto output after arc break
12
Location Feedback
Torch lifter has location switch (zero point switch), set 1
13
Arc strike Feedback
After arc strike, whether check arc strike success feedback signal
input, plasma power or arc voltage auto THC has the signal, can
connect to the controller, set 1
Torch Up Time: after cutting, time of torch moving up
