Stihl BR 800 Service Manual

BR 80012
5.1 Tools, Servicing Aids
– Screwdriver – 0000 890 2300 or equivalent
– Socket, T27x125 – 0812 542 2104 or equivalent
– Torque wrench – 5910 890 0302 or equivalent
– Screwdriver, T27x200 – 5910 890 2415 or equivalent

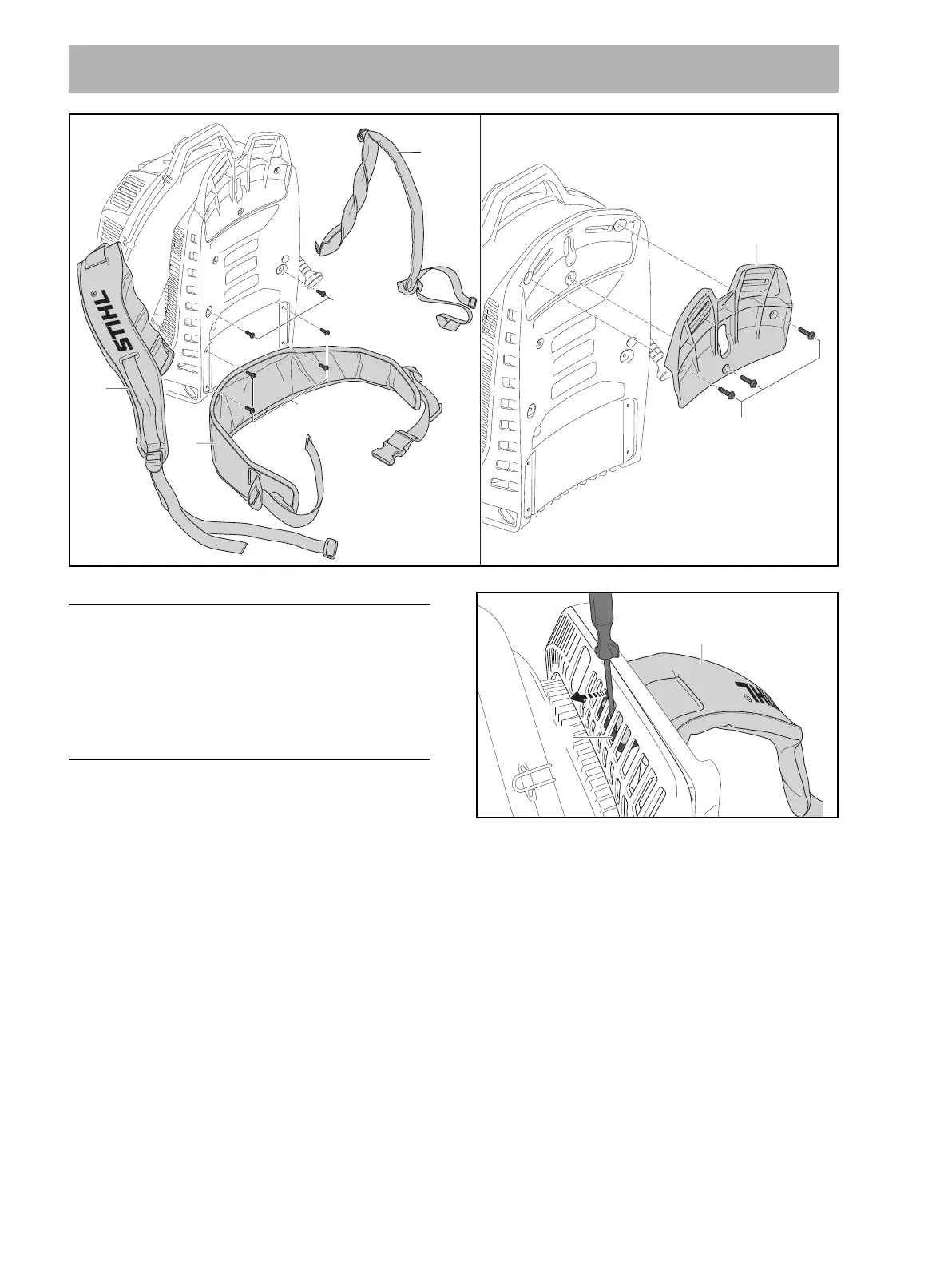

5.2 Removing the Harness
N Preparations, @ 3.1.
Backplate with extension
N Push the upper sliding adjusters of the harness straps
(1 and 5) through the openings in the backplate.
Backplate without extension
N Insert screwdriver 0000 890 2300 through the
protective screen (see illustration) and use it to pull
the upper sliding adjusters (8) away from the harness
straps (1 and 5) and hold them there.
N Pull out the straps (1 and 5).
All versions
N Rotate the lower sliding adjusters of the harness
straps (1 and 5) through 90° and push them out
through the openings in the backplate.
N Take out the screws (4).
N Remove the straps (1 and 5).
N Take out the screws (3).
N Remove the waist belt (2).
5 Harness
6
5
1
2
7 P6x25
(6 Nm /
53 lbf. in.)
4 P5x14
(4 Nm /
35 lbf. in.)
3 P5x14
(4 Nm /
35 lbf. in.)
0000-GXX-6626-A0
5
8
0000-GXX-6643-A0

Stihl BR 800 Specifications

General

Type	Backpack blower
Airflow	2025 m³/h
Suction mode	-
Product color	Black, Orange, White
Airspeed (max)	349.2 km/h
Power source	Gasoline
Sound power level	112 dB
Sound pressure level	104 dB

Weight and Dimensions

Weight	11700 g
