BR 800 31

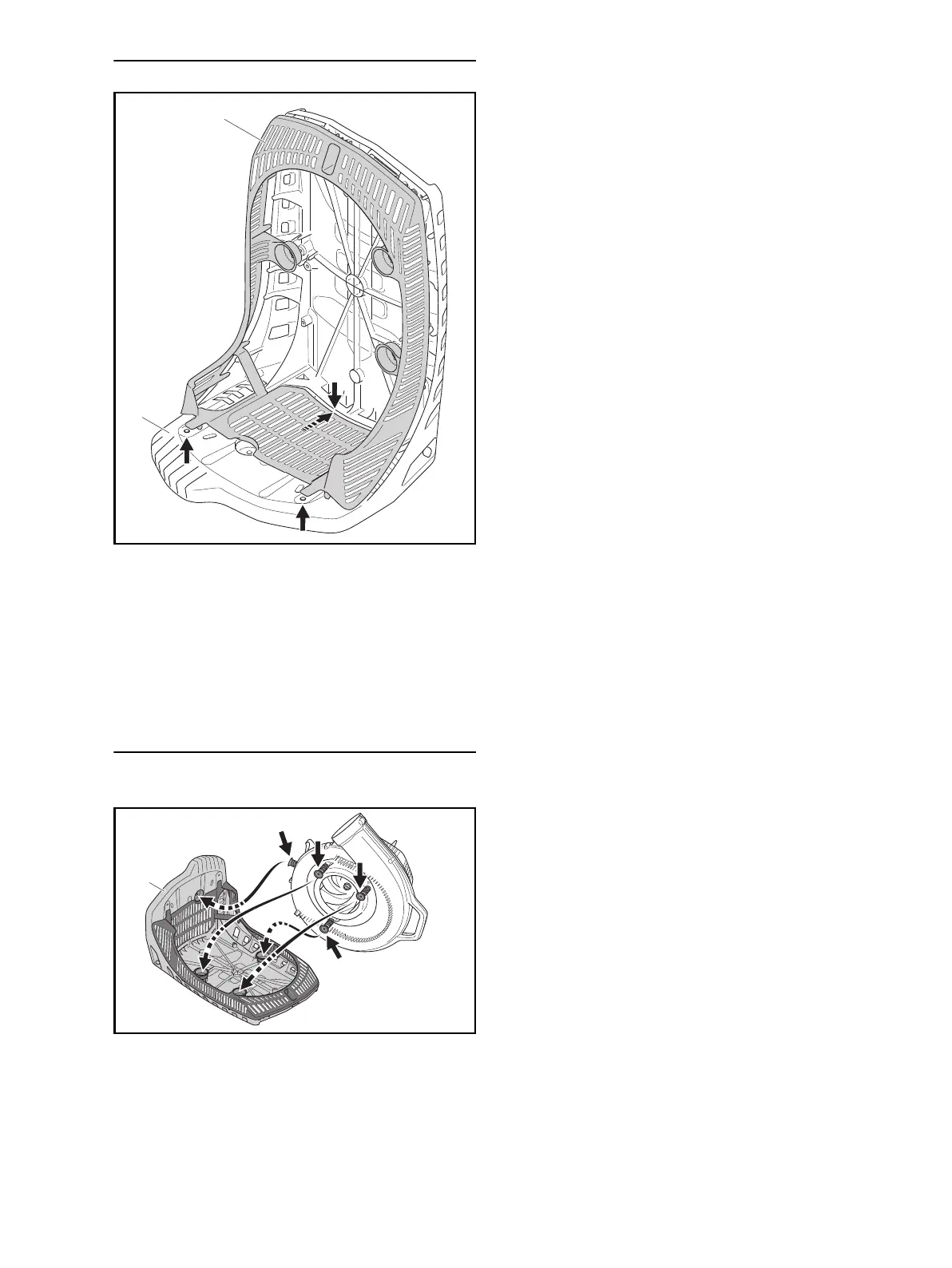

10.11 Fitting the Protective Screen
N Position the protective screen (14) under the rear
housing edge (arrow).
N Press pins on protective screen (14) into their seats
(arrows) in the backplate (4).
N Push retaining lugs on protective screen (14) into
their seats in the backplate (4) so that they snap into
plate.
N Install the backplate, @ 10.12.
10.12 Installing the Backplate
N Fit the protective screen, @ 10.11.
N Lay down the backplate (4) on its flat side.
N Position the powerhead/blower unit on the backplate
(4) so that the antivibration elements (arrows) locate
in their seats in the backplate (4).
N Insert and tighten down the screw (5).
N Stand the backplate (4) with powerhead/blower unit
upright.
N Insert and tighten down the screws (3).
N Place the backplate (1) in position.
N Insert and tighten down the screws (2).
N Install the fuel tank, @ 10.6.
4
14
0000-GXX-6640-A0
4
0000-GXX-6641-A0
