English 10 LED Diagnostics and Acoustic Signals
If three LEDs glow red continuously: the power tool motor is
too hot. Allow the motor to cool down.
If three LEDs flash red when you activate the trigger switch:
the power tool has an electrical malfunction. Do not operate
the power tool. Have it checked by an authorized STIHL
servicing dealer before use or storage.
For troubleshooting information, @ 23.
10.1.3 Charge Status
The LEDs and acoustic signals on the battery also indicate
the battery's state of charge.

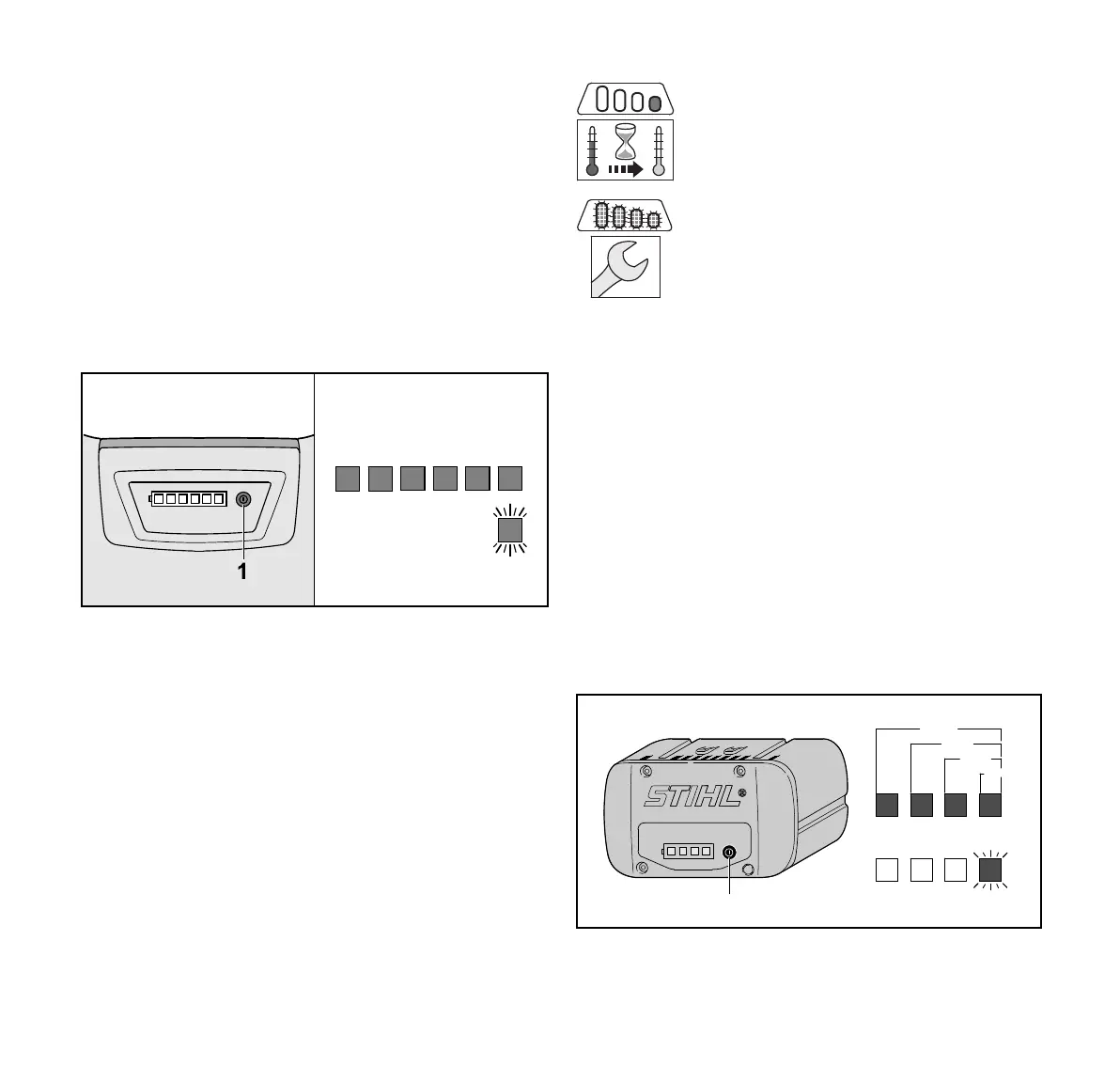

To determine the battery's state of charge:
► Press the button(1) on the backpack battery.
A single short beep will be emitted. The LEDs on the battery
will glow or flash green for about 5seconds and indicate the
state of charge (see illustration).
For example:
If six green LEDs glow continuously: full charge.
If one green LED is flashing and four long beeps are emitted:
less than 20% charge.
10.2 STIHL AP Battery
10.2.1 Battery Status
Four LEDs show the status of the battery. These LEDs can
glow or flash green or red.
10.2.2 Power Tool Status
The same LEDs on the battery will indicate the status of the
power tool.
If three LEDs glow red continuously: the power tool motor is
too hot. Allow the motor to cool down.
If three LEDs flash red when you activate the trigger switch:
the power tool has an electrical malfunction. Do not operate
the power tool. Have it checked by an authorized STIHL
servicing dealer before use or storage.
For troubleshooting information, @ 23.
10.2.3 Charge Status
The LEDs on the battery also show the battery's state of
charge.
To determine the battery's state of charge:
0000-GXX-2673-A0
100 % 0 %
If one LED glows red continuously: the battery
is either too hot or too cold. Allow the battery
to warm up or cool down gradually at an
ambient temperature of about 50°F to 68°F
(10°C to 20°C).
If all 4LEDs flash red: the battery has a
malfunction and must be replaced. Do not
attempt to charge, use or store the battery.
1
0000-GXX-1248-A0
20-40%
40-60%
60-80%
80-100%
0-20%
