3 Main Parts
NOTICE
Indicates a risk of property damage, including damage to the
machine or its individual components.
2.2 Symbols in Text
The following symbol is included to assist you with the use
of the manual:

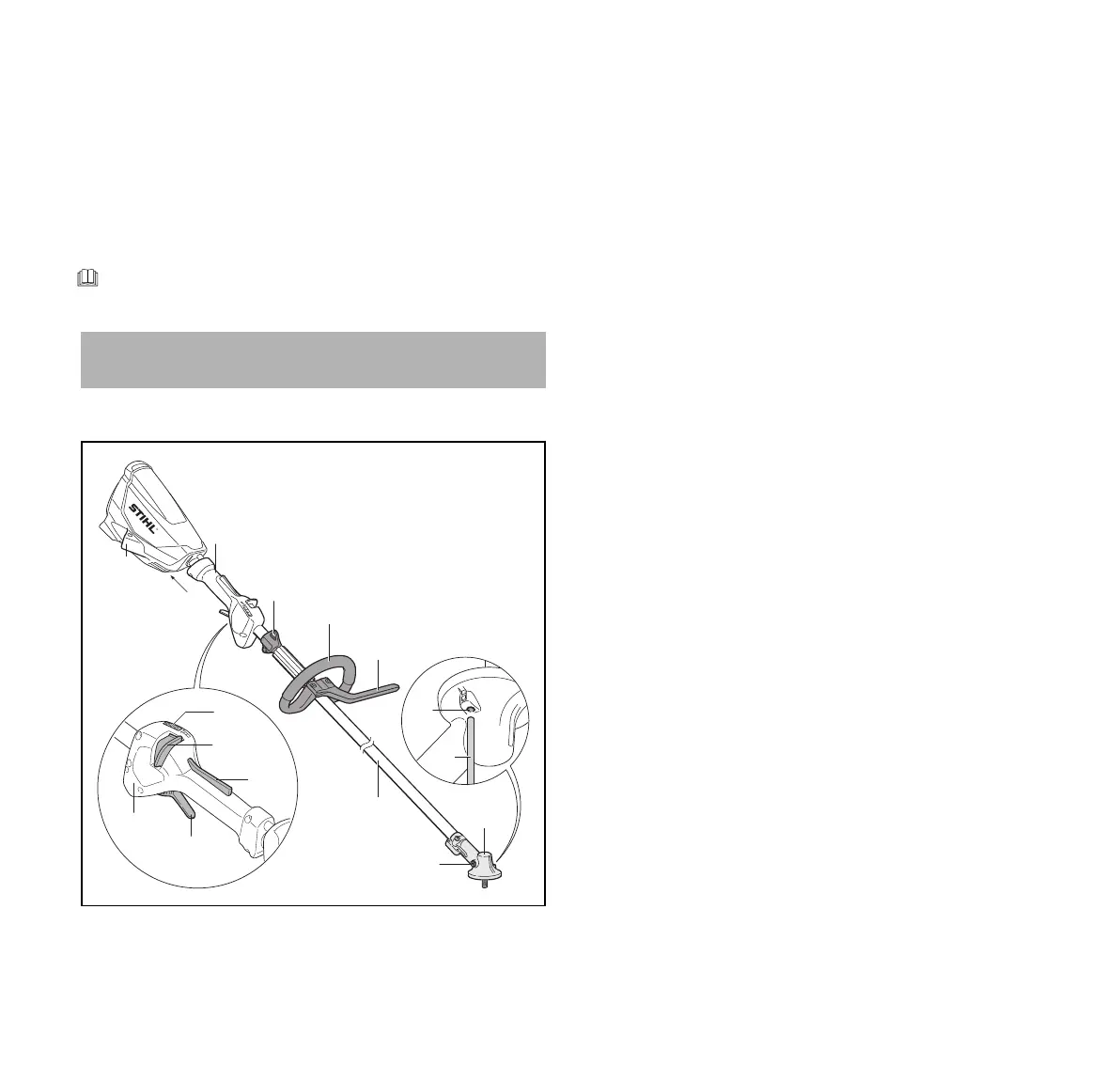

3.1 Trimmer / Brushcutter
1 Socket
Socket for the plug of the battery connecting cord.
2 Control Handle
Handle for the operator's rear hand.
3LEDs
Indicate the unit's power level.
4 Retaining Latch
Locks / unlocks the trigger switch. Sets the unit's power
level when it is in active mode.
5 Trigger Switch Lockout
Must be depressed while the retaining latch is unlocked
to allow activation of the trigger switch.
6 Trigger Switch
Activates the cutting attachment when depressed.
7 Carrying Ring
For connecting a harness to the trimmer / brushcutter.
8 Loop Handle
Handle for the operator's front hand.
9 Barrier Bar
Designed to reduce the risk of inadvertent operator
contact with the cutting attachment. Required equipment
when operating the unit with a metal blade.
10 Drive Tube
Shaft of the power tool.
11 Opening for Stop Pin
Opening that allows the operator to block the output shaft
by inserting the stop pin.
12 Stop Pin
Blocks the output shaft when mounting a cutting
attachment.
13 Gearbox
Covers the transmission system.
14 Screw Plug
Seals the grease filler opening at the gearbox.
Refers to a designated chapter or sub-chapter in this
instruction manual.
3Main Parts
8
9
7
2
3
0000-GXX-3080-A2
13
11
14
12
2
4
5
6
1
10
#
