English 12 Using a Battery Harness
► Thread the end of the waist belt through the loop (3).
► To remove the harness, open the quick-release fasteners
on the waist belt and chest strap and loosen the harness
straps by lifting the sliding adjusters.
To help reduce the risk of injury in the event of an
emergency, practice quickly opening the fastener on the
waist belt, loosening the shoulder straps and removing the
battery.
NOTICE
To avoid damage, ease the battery to the ground when
practicing. Do not allow the battery to drop to the ground and
do not throw it.
12.2 STIHL Battery Backpack
12.2.1 Mounting the AP Battery Bag with Connecting Cord
inside the Battery Backpack
WARNING
To reduce the risk of injury from tripping or losing control of
the power tool, always secure the connecting cord with the
hook and eye fasteners on the cord holder. Position and
secure the connecting cord so that it will not interfere with
proper working technique or your ability to maintain control
of the power tool.
WARNING
Manage the cord to prevent it from contacting the cutting/
working attachment or catching on objects, which could
cause you to lose balance or control of the power tool,
resulting in serious personal injury and property damage.
WARNING
Never transport metallic, pointed or sharp objects in the
battery bag or battery backpack. They may bridge the
electrical contacts in the battery and cause a short circuit
once a battery is inserted.

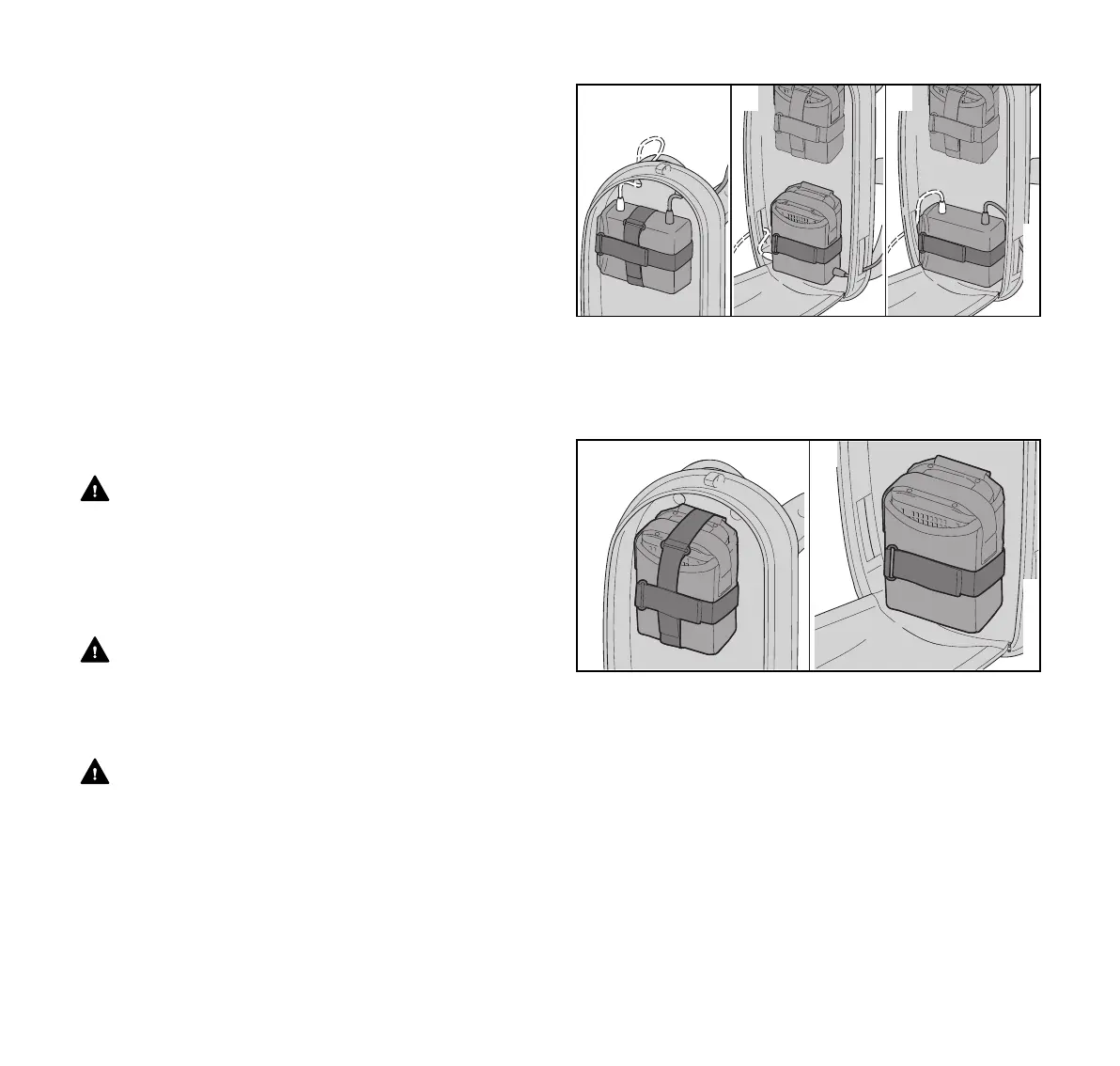

The AP Battery Bag with Connecting Cord can be mounted
at the top(IllustrationA) or bottom(IllustrationsB and C)
fastening points inside the STIHL Battery Backpack. Mount
so that the connecting cord exits the backpack on the side of
your body where the power tool will be held and controlled.
The STIHL Extra AP Battery Bag can be mounted at the
top(IllustrationD) or bottom(IllustrationE) fastening points
inside the STIHL Battery Backpack.
To attach the AP Battery Bag with Connecting Cord or Extra
AP Battery Bag to the STIHL Battery Backpack:
► Insert the AP battery into the AP Battery Bag with
Connecting Cord or Extra AP Battery Bag.
► Attach the AP Battery Bag with Connecting Cord or Extra
AP Battery Bag at one of the specified locations.
A B
C
0000-GXX-4469-A1
D E
0000-GXX-4470-A1
