Stihl FSA 130 R - Positioning and Adjusting the Connecting Cord

0458-725-8621-B
34
English 12 Using a Battery Harness

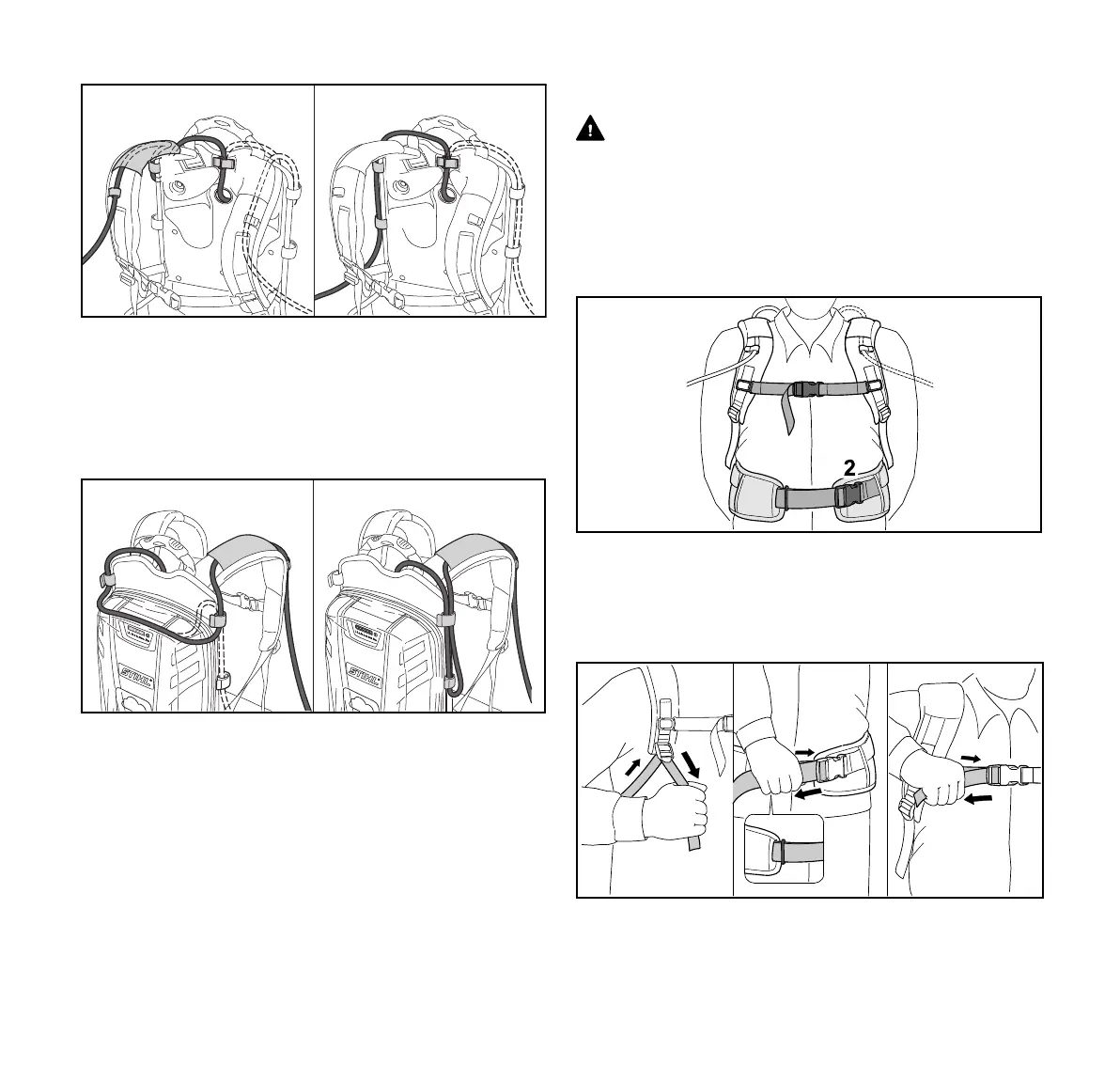

The connecting cord can run through the guideson the
shoulder straps(IllustrationA) or along the back
plate(IllustrationB). Secure the connecting cord to the
backpack with the hook and eye fasteners(1) on the side of
the body where the trimmer / brushcutter is held and
controlled. Do not allow the connecting cord to swing across
your body or hang at your side.
The length of the connecting cord can be adjusted by
making a loop around the top (IllustrationC) or on the side
(IllustrationD) of the backpack battery.
► Position and secure the connecting cord so that it will not
interfere with proper working technique or your ability to
maintain control of the trimmer / brushcutter.
12.1.2 Putting on and Adjusting the Harness
WARNING
To reduce the risk of personal injury, the operator must be
able to remove the backpack battery quickly in the event of
an emergency. In an emergency, open and remove the waist
belt and chest strap quickly before dropping the battery to
the ground.
To ensure a proper fit:
► Put the backpack battery on your back.
► Fasten and adjust the waist belt(2) so that it rests
comfortably but securely on your hips.
► Fasten the chest strap (1) and adjust it so that it fits
comfortably but securely across your chest.
► Adjust the harness straps so that the back padding fits
firmly and securely against your back.
0000-GXX-2801-A2
1
1
1
1
1
1
B
A
0000-GXX-2803-A1
D
C
1
0000-GXX-2828-A0
0000-GXX-2815-A1
3
