English 12 Using a Battery Harness

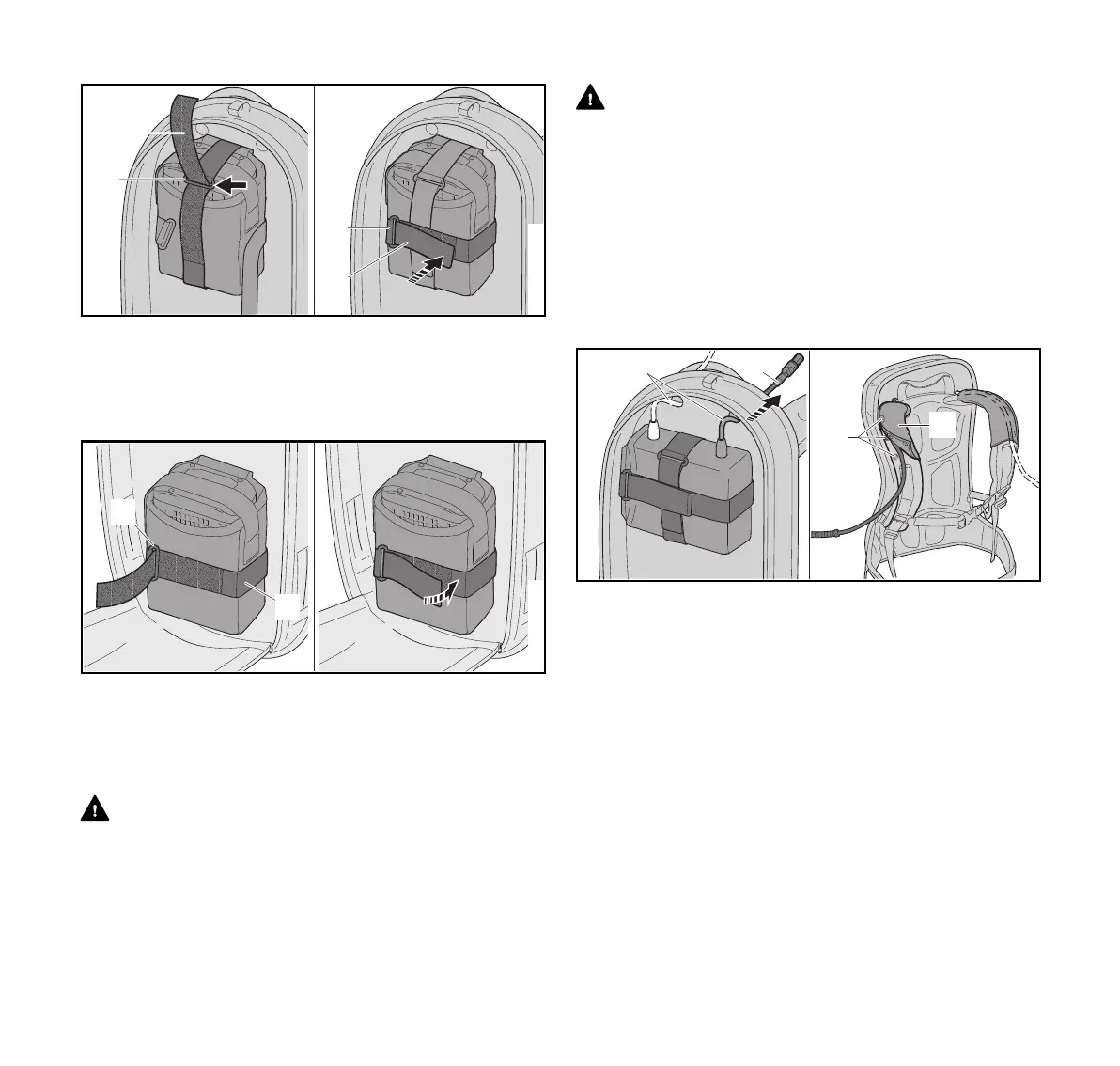

► If you attach the battery bag at the top position, pull the
vertical strap(2) through the ring (1) and close the hook
and eye fastener to secure it.
► Repeat the process with the horizontal strap(4) and its
ring(3).
► If you attach the battery bag at the bottom position, pull
the horizontal belt strap(6) through the ring (5) and close
the hook and eye fastener to secure it.
12.2.2 Positioning and Adjusting the Connecting Cord
WARNING
To reduce the risk of injury from tripping or losing control of
the power tool, always secure the connecting cord with the
hook and eye fasteners as described below. Position and
secure the connecting cord so that it will not interfere with
proper working technique or your ability to control the power
tool.
WARNING
Manage the cord to prevent it from contacting the cutting/
working attachment or catching on objects, which could
cause you to lose balance or control of the power tool,
resulting in serious personal injury and property damage. Do
not allow the connecting cord to swing across your body or
hang at your side.
The connecting cord can be secured in different positions
and adjusted to suit the height and reach of the operator.
To run the connecting cord through the guide in the shoulder
strap:
► Insert the connecting cord(1) through the opening(2) on
the side of side of your body where the power tool is held
and controlled.
► Undo the snap fasteners(3) on the shoulder strap and run
the connecting cord through the guide(4).
► Close the snap fasteners to secure the cord in the guide.
1
2
3
4
