Stihl MS 240

24 MS 240, MS 260, MS 260 C

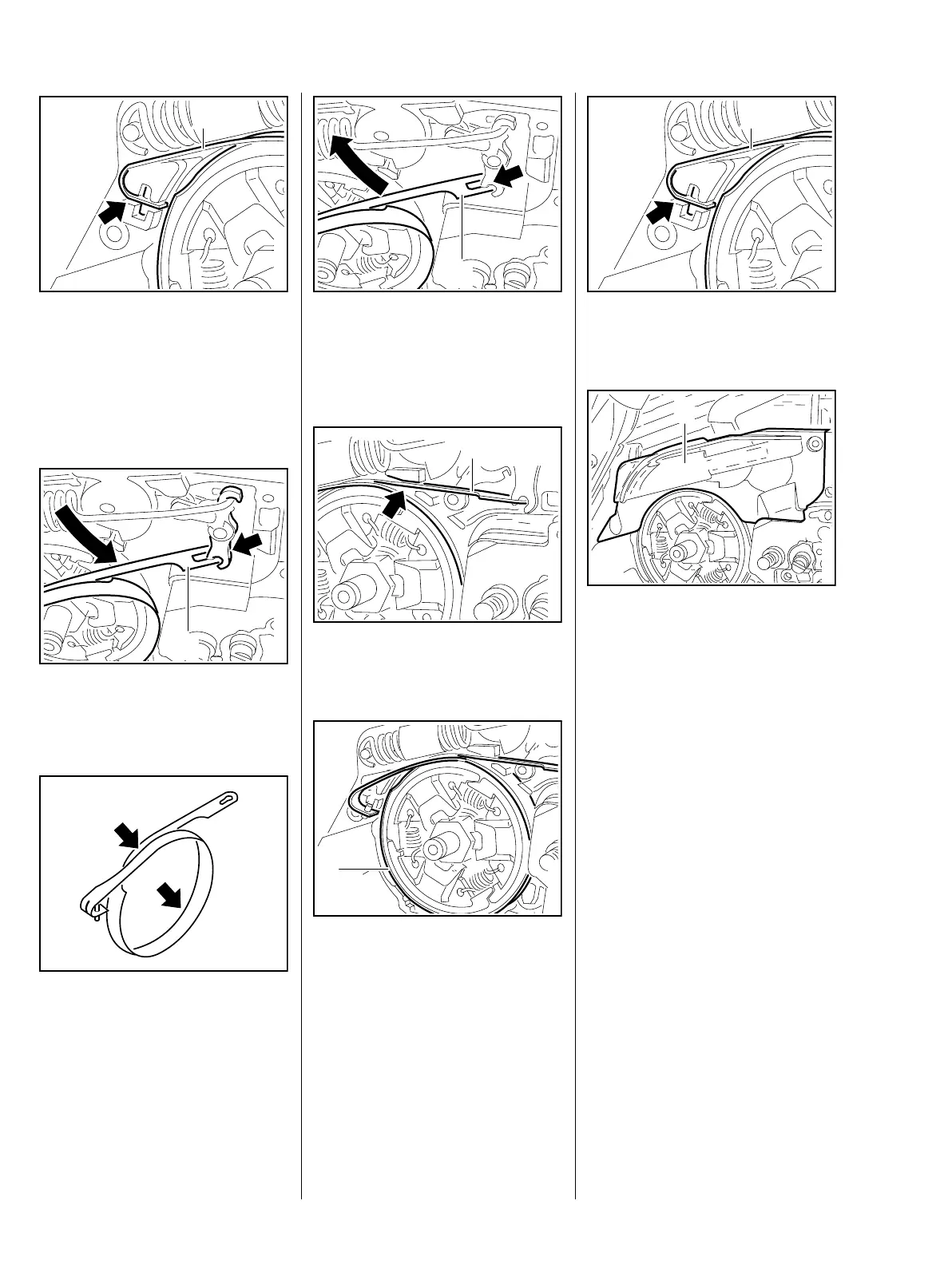

: Pry the brake band (1) out of its
seat (arrow).
– Remove the brake band (1).
Do not over-stretch the brake band.
: Turn the brake band (1) to one
side and disconnect it from the
brake lever (arrow).
Install a new brake band if there are
noticeable signs of wear (large
areas on inside diameter and/or
parts of outside diameter – arrows)
and its remaining thickness is less
than 0.6 mm.
165RA040 TG
1
1
165RA042 TG165RA043 TG
: Hold the brake band (1)
sideways, attach it to the brake
lever (arrow) and then swing it in
the direction of its seat.
: Position the brake band (1) it the
guide (arrow) first.
: Push the brake band (1) into its
seat.
1
165RA044 TG
165RA045 TG
1
165RA041 TG
1
: Push the brake band (1) into its
guide (arrow) as far as stop.
: Place the cover (1) in position.
– On versions with handle heating,
fit the ground wire, b 15.4.1
– Insert screws and tighten them
down firmly.
– Tightening torques, b 3.5
– On versions with quick chain
tensioner, install the upper
bumper strip.
– Install the clutch drum,
b 6.1
– Check operation.
– Reassemble all other parts in the
reverse sequence.
