114 MS 240, MS 260, MS 260 C

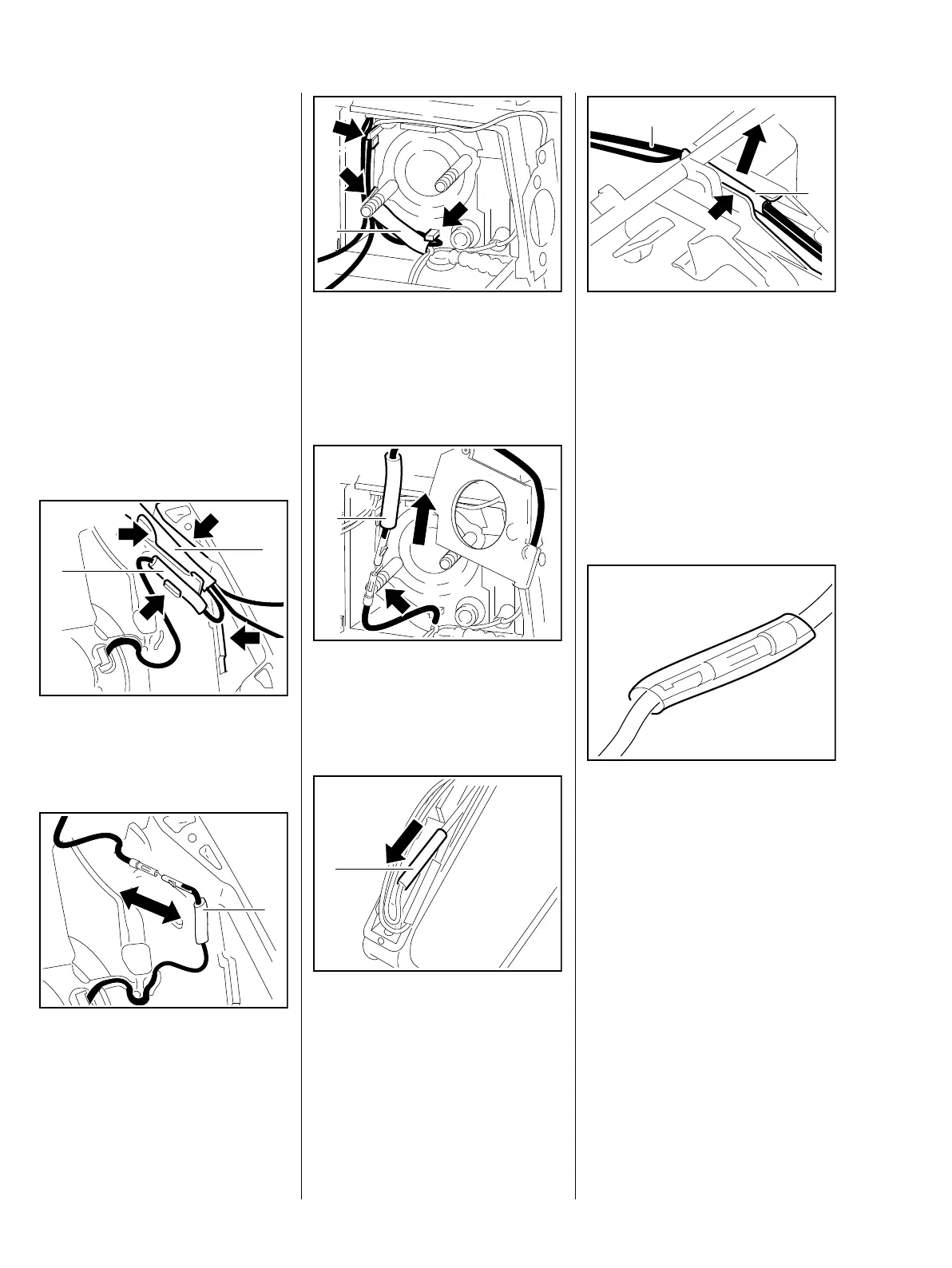

15.8 Wiring Harness
– Remove the shroud, b 8.4
– Remove the ignition module,
b 9.2.1
– Remove the carburetor, b 14.2
– Remove the handle molding,
b 12.2
– Remove the switch shaft,
b 12.1.1
– Remove the interlock lever,
b 12.2
Removing
: Pull the wiring harness (1) and
connector (2) out of the guides
(arrows).
: Push back the insulating tube (1)
in the direction of the generator
wire and separate the pin and
socket connector.
165RA449 TG
2
1
165RA450 TG
1
– Remove the short circuit wire,
b 9.6.2
: Pull the connector (1) and wires
out of the guides (arrows).
: Push back the insulating tube (1)
in the direction of the carburetor
heating element and separate the
pin and socket connector (arrow).
– Select wire to wiring harness.
: Push back the insulating tube (1)
in the direction of the heating
element and separate the pin and
socket connector.
165RA089 TG
1
165RA026 TG
1
165RA451 TG
1
: Take the wire (1) with insulating
tube (2) out of the guide (arrow).
– Pull the heating element/wiring
harness wire (1) out of the
insulating tube (2).
– Remove the wiring harness,
check it and replace if necessary.
Installing
During all the following procedures:
: To reduce the risk of a short
circuit, make sure the insulating
tubes completely cover the
connections.
165RA269 TG
1
2
165RA267 TG
