106 MS 240, MS 260, MS 260 C

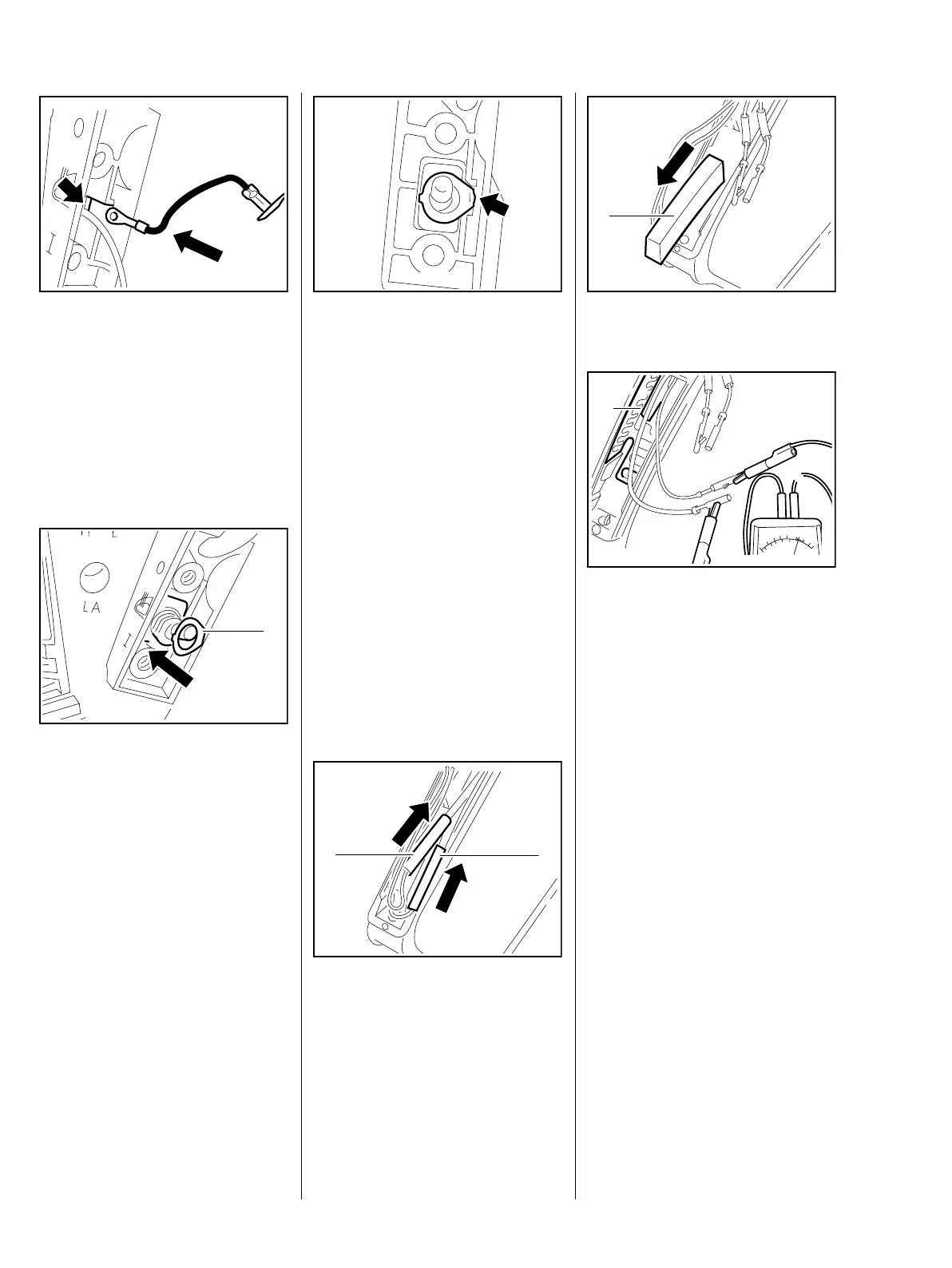

: Push the small ring terminal of
the new ground wire through the
opening (arrow).
– Fit the ground wire on the
crankcase.
– Insert screw and tighten it down
firmly.
: Fit the ground wire (1) on the
heater switch.
165RA428 TG
165RA429 TG
1
: Push the ground wire into its
guide (arrow) as far as stop.
– Secure the handlebar, b 11.5
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
15.5 Removing and Installing
Heating Element in Rear
Handle
The ambient temperature during
removal and installation should not
be less than + 15°C.
If a heating element is removed, it
must always be replaced by a new
element.
– Remove the handle molding,
b 12.2
: Push back the insulating tubes
(1) in the direction of the wiring
harness and separate the pin and
socket connectors.
165RA406 TG
165RA430 TG
1
1
: Pull out the pressure pad (1).
: Check the heating element (1)
and replace if necessary.
If the heating element is in good
condition the ohmmeter will indicate
a value of about 2 Ω in measuring
range "Ω".
If the reading is outside this range,
install a new heating element.
Heating element does not operate
even though resistance
measurement is in order?
– Test the generator and heater
switch, b 15.3
165RA431 TG
1
100
50
30
20
10
5
0
20
10
5
1
2
165RA433 TG
1
