20 MS 240, MS 260, MS 260 C

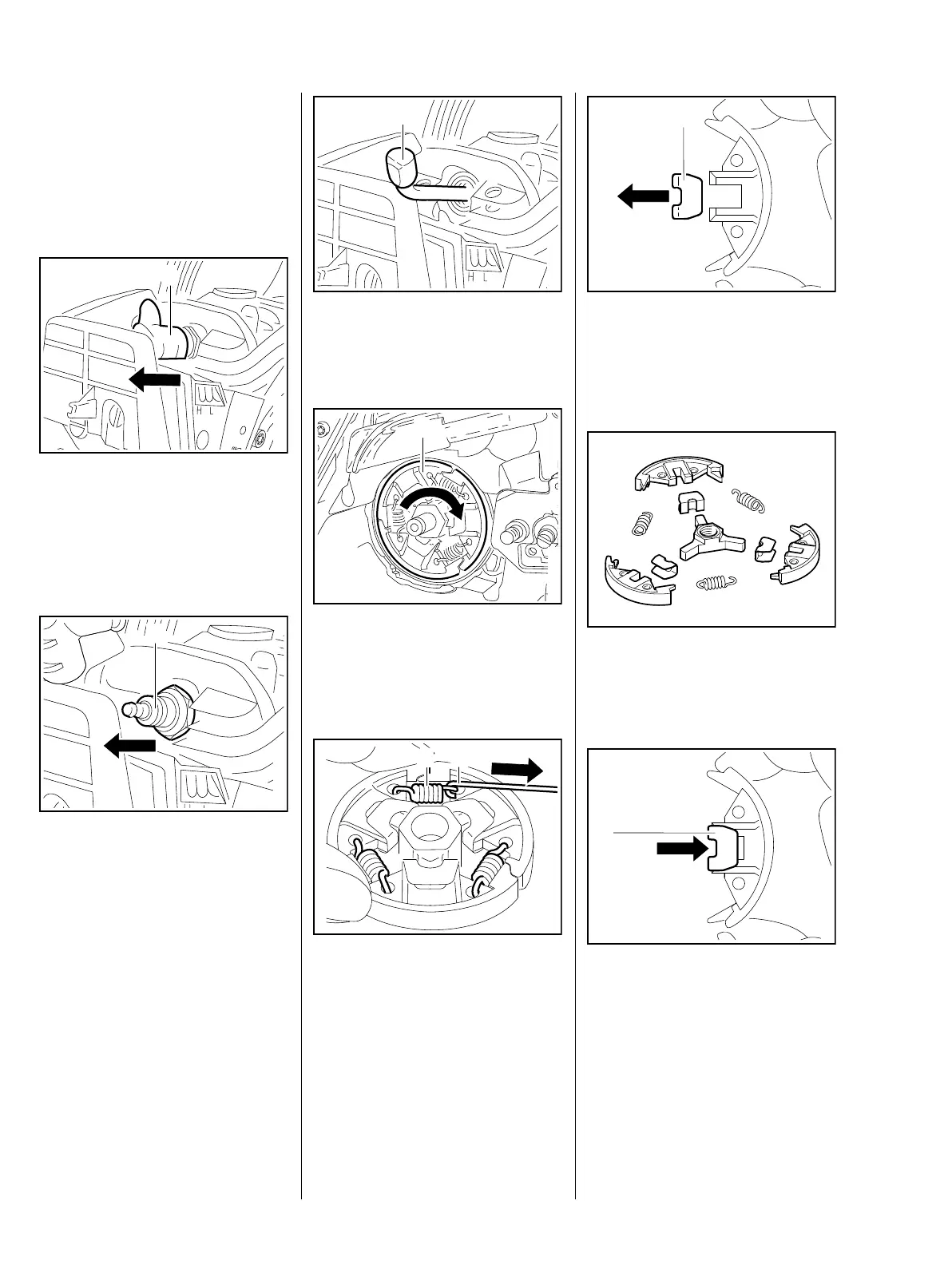

6. Clutch
– Troubleshooting, b 4.1
– Remove the sprocket cover and
cutting attachment, b 5
– Remove the clutch drum, b 6.1
– Remove the air filter, b 14.1
– Remove the shroud, b 8.4
: Pull boot (1) off the spark plug.
: Unscrew the spark plug (1).
1
165RA009 TG
1
165RA010 TG
: Push the locking strip (1)
0000 893 5903 into the cylinder
so that "OBEN-TOP" is visible.
: Unscrew the clutch (1).
Note that the clutch has a left-hand
thread.
Disassembling
: Use hook (2) 5910 890 2800 to
remove the clutch springs (1).
1
165RA011 TG
1
165RA012 TG
165RA013 TG
2
1
– Pull the clutch shoes off the
carrier.
: Remove the retainers (1).
– Clean all parts..
– Replace any damaged parts.
: Fit the retainers (1).
1
165RA014 TG
165RA015 TG
1
165RA016 TG

Stihl MS 240 Specifications

General

Chain pitch	3/8"
Oil Capacity	0.2 L
Guide bar length (recommended)	40 cm
Engine Power	2.0 kW (2.7 bhp)
Displacement	41.6 cm³
