Stihl MS 240

21MS 240, MS 260, MS 260 C

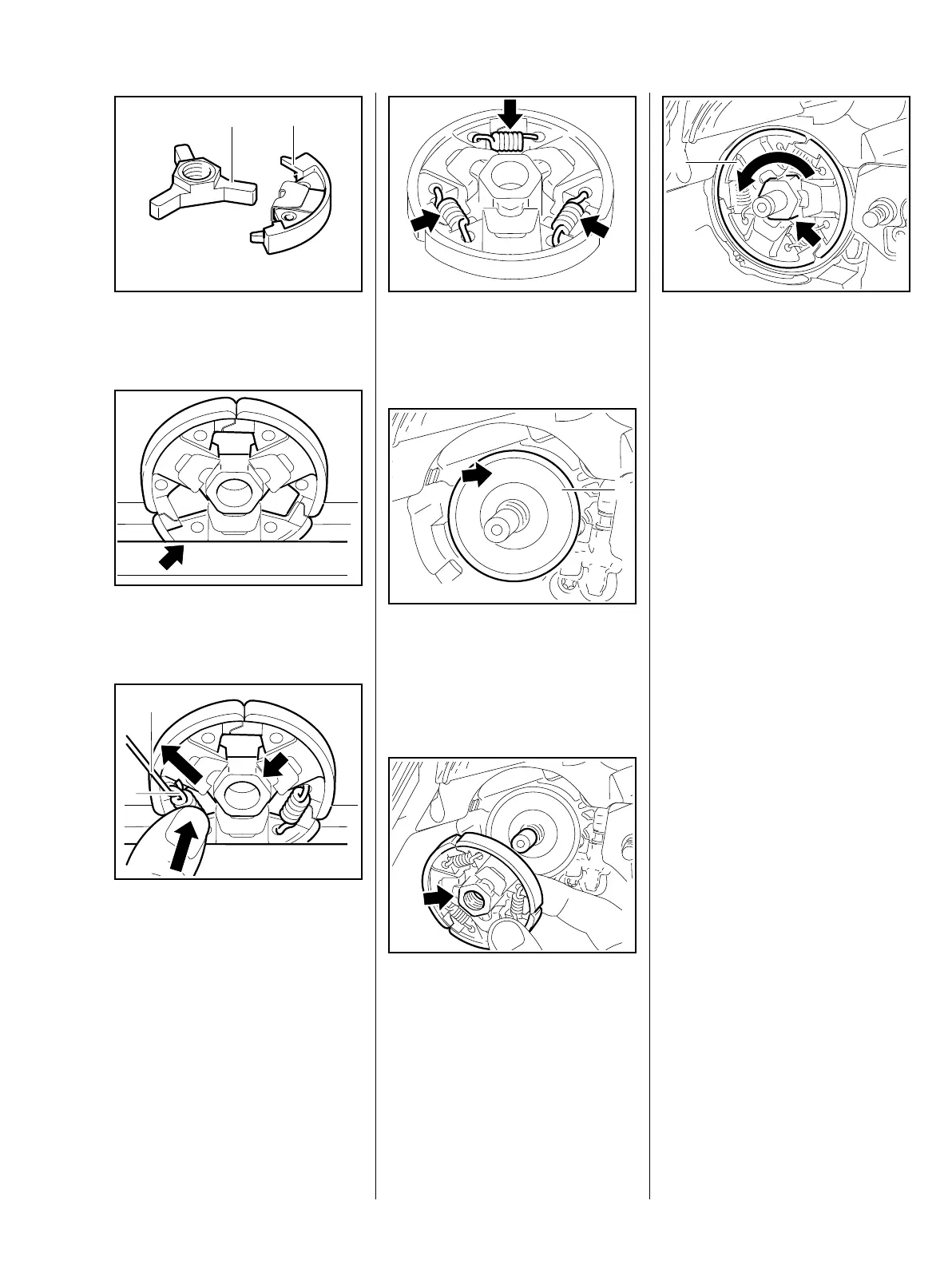

: Fit the clutch shoes (2) over the
arms (2).
: Clamp the clutch in a vise
(arrow).
Attach the springs on the side with
the raised hexagon (arrow).
: Attach one end of each spring (1)
to the clutch shoes.
: Use the hook (2) 5910 890 2800
to attach the other ends of the
springs and press them firmly into
the clutch shoes.
165RA017 TG
21
165RA018 TG
1
2
165RA470 TG
: Check the clutch – all springs
(arrows) must be properly
attached.
– Make sure the washer (1) is in
place.
Installed position is correct when
"TOP" (arrow) faces outwards.
: Position the clutch on the
crankshaft stub so that the raised
hexagon (arrow) faces outwards.
165RA020 TG
TOP
165RA021 TG
1
TOP
165RA022 TG
: Screw the clutch (1) on to the
crankshaft stub and tighten down
the hexagon (arrow) firmly – left-
hand thread.
– Tightening torques, b 3.5
– Remove the locking strip from the
cylinder.
– Reassemble all other parts in the
reverse sequence.
1
165RA023 TG
