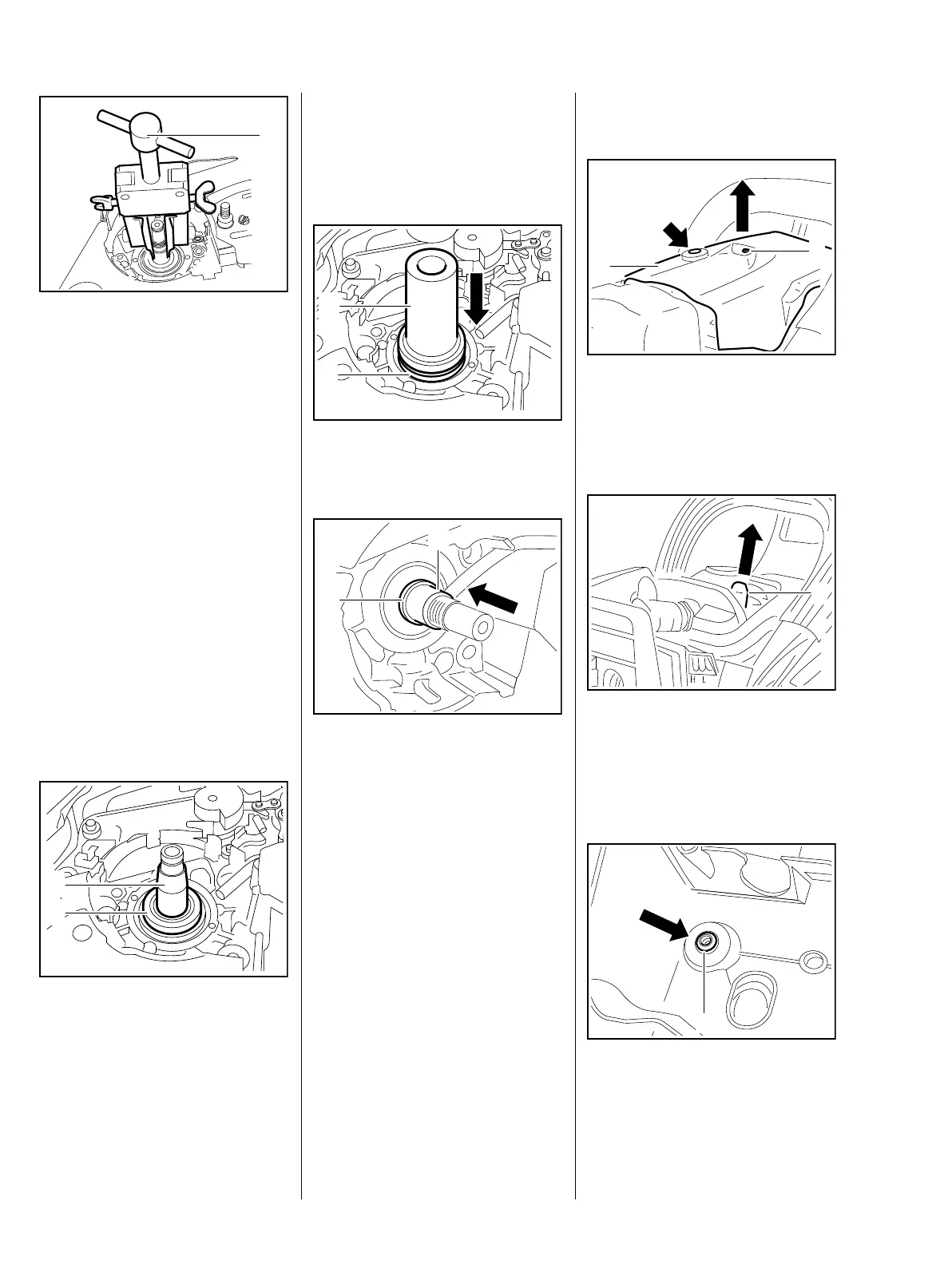

36 MS 240, MS 260, MS 260 C
– Free off the oil seal in its seat by
tapping it with a suitable tube or a
punch.
: Apply puller (1) 5910 890 4400
with No. 3.1 jaws 0000 893 3706.
– Clamp the puller arms.
– Pull out the oil seal.
Take care not to damage the
crankshaft stub.
– Clean the sealing face with a little
standard solvent-based
degreasant containing no
chlorinated or halogenated
hydrocarbons.
– Lubricate sealing lips of new oil
seal with grease, b 17
: Fit the installing sleeve (1) 1118
893 4602.
– Apply a thin coating of sealant to
the outside diameter of the oil
seal (2), b 17
165RA111 TG
1
165RA477 TG
1
2
– Slip the oil seal (2), open side
facing the crankcase, over the
installing sleeve.
– Remove the installing sleeve (1).
: Use press sleeve (2) 1120 893
2400 to install the oil seal (1).
– Wait about one minute, then
rotate the crankshaft several
times.
: Fit the washer (1) and ring (2).
– Reassemble all other parts in the
reverse sequence.
165RA113 TG
1
2
165RA114 TG
2
1
8.4 Removing and Installing
the Shroud
: Unscrew the slotted nut (arrow).
: Remove the shroud (1) over the
decompression valve (2).
: Pull off the stop buffer (1), check
it and replace if necessary.
– Reassemble in the reverse
sequence.
: Push out the slotted nut (1) with
insulator.
1
165RA115 TG
2
1
165RA116 TG
165RA004 TG
1
