29MS 341, MS 361, MS 361 C

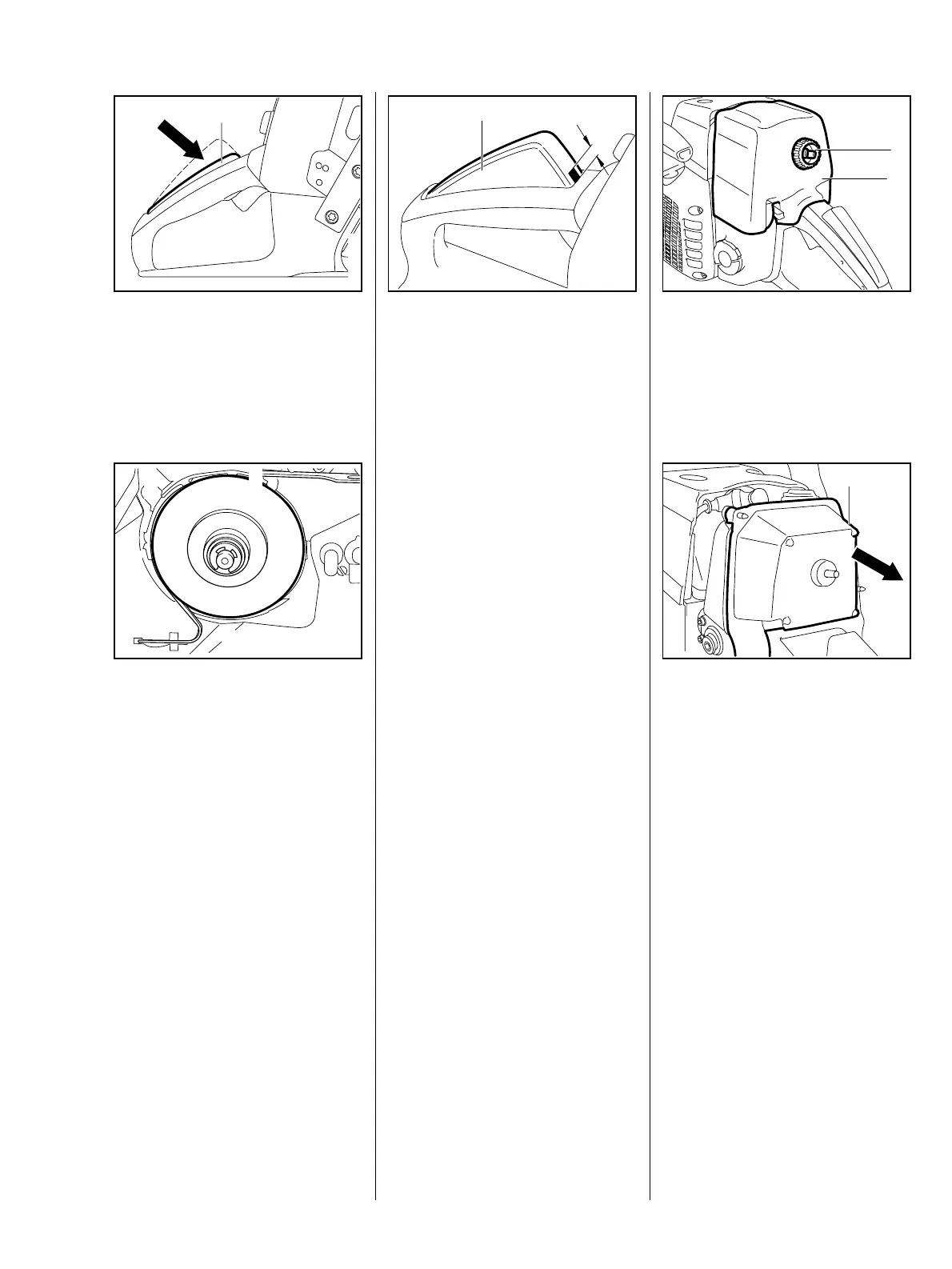

: Press down interlock lever (1) all
the way and hold it in that
position.
VA
212RA029
1
: The brake band (1) must locate
without any play against the
points (A) in the crankcase.
VA
212RA030
A
A
A
A
A
A
: Let go of the interlock lever (1).
: Check free travel by slowly
squeezing the interlock lever (1).
Play must be within the mark (B)
at the front end of the interlock
lever.
The brake lever must not move. If
VA
212RA031
1
B
it does, adjust play – b 5.5.5
Reassemble in the reverse
sequence.
: Release twist lock (1).
: Remove the carburetor box
cover (2).
VA
212RA004
1
2
: Lift away the air filter (1) to the
rear.
VA
212RA032
1
5.5.5 Adjusting Play
