Special equipment 7
Pedestrian operation

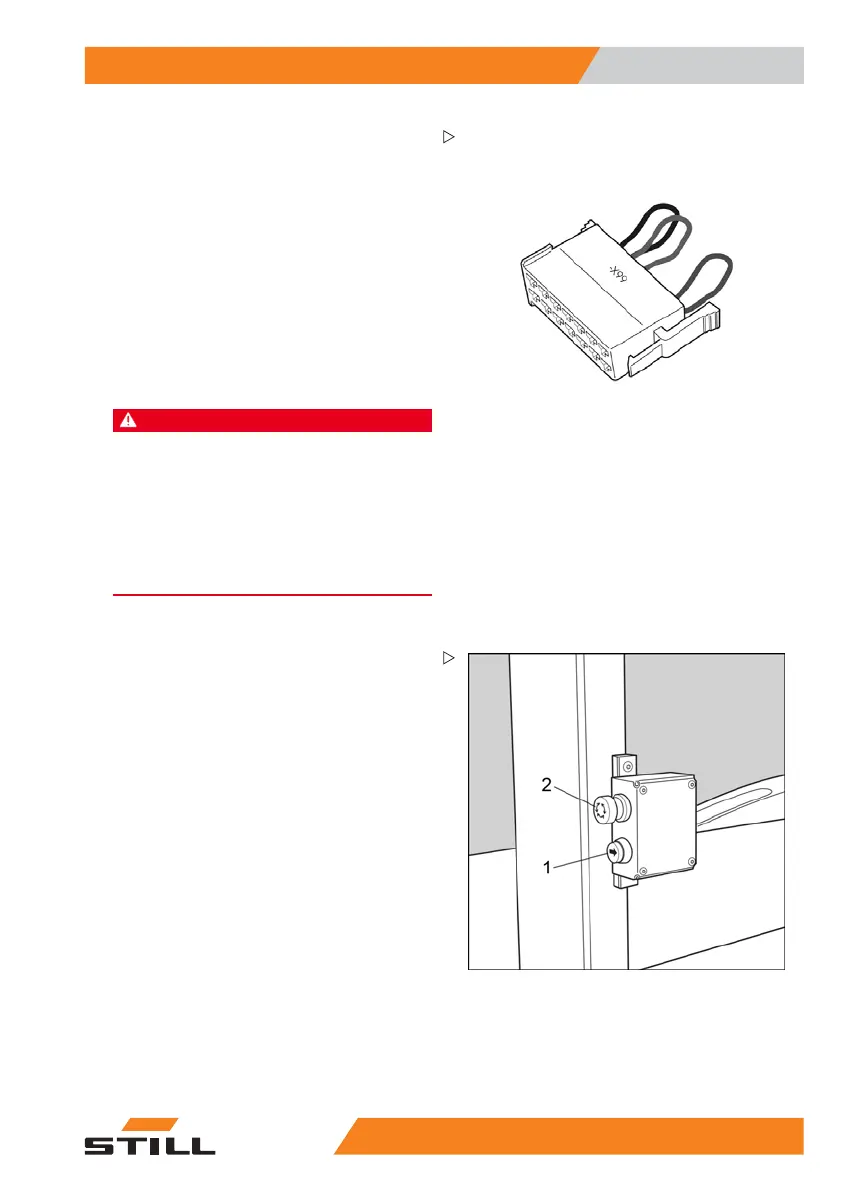

Interface X99
The plug X99 represents the interface be-
tween the truck control unit and the personal
protection system. All signals defined by us
are allocated in this plug. The scope of deliv-
ery of a very narrow aisle truck includes the
bridging plug X99, which can be fitted instead
of the MPSE connector plug if an internal de-
fect in the MPSE controller has caused truck
failure.
The interface X99 is installed on man-down
trucks in the vicinity of the operating panel and
on man-up trucks in the control compartment
DANGER
Risk of accident
With a fitted bridging plug, all safety functions
of the MPSE are suspended and the maximum
driving speed of the truck is restricted to 2.5km/h.
Operationwithabridgingplugisthereforeonly
permitted for the retrieval of a truck. This bridging
plug must be kept locked away by the warehouse
manager responsible and is only to be used under
his instruction.
Pedestrian operation
The vehicle can, as an option, be equipped
with the additional "pedestrian operation"
function, for which 2 extra buttons are fitted on
each side of the mast.
(1)Moveind
irection of driving gear
(2) Emergency stop button.
The following conditions must be satisfied for
low level order picking in pedestrian operation
mode:
– All vehicle f
unctions must be inoperative or
not selected
.
– The steering must be set straight (± 10º). If
the steering is not in straight position when
pedestrian operation is selected, this will be
indicated by flashing of the steering angle
display.
– The driver must have received instruction
from the owner on operating this special
521
2 804 3001 EN - 02/2017 99
