Overview 3

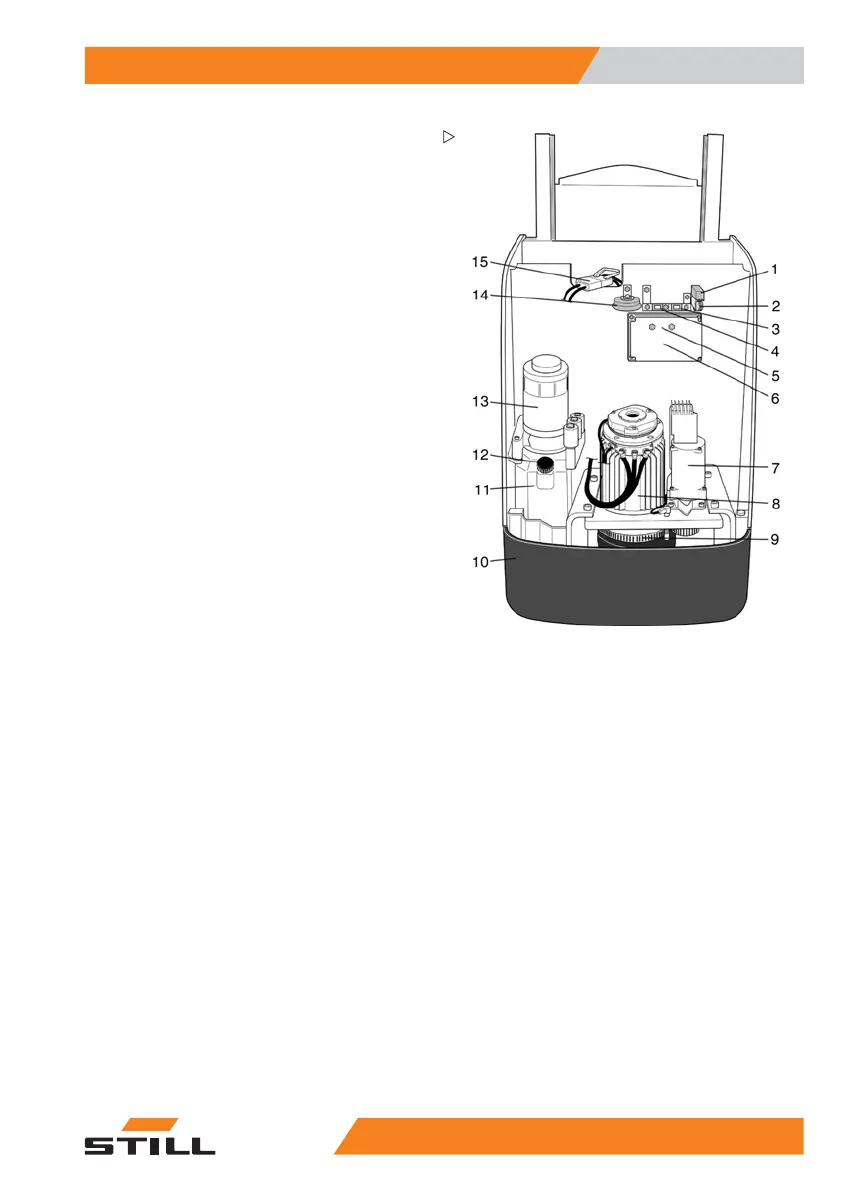

View into the control compartment
View into the control compart-
ment
(1) Control current fuses
(2) Programming interface
(3) Main current fuse, ste
ering
(4) Main current fuse, drive and pump
(5) Fuse holder, not used
(6) Combined drive and pum
p control
(7) Steering motor
(8) Drive motor
(9) Steering gears and t
ransmission
(10) Detachable collision protection
(11) Hydraulic oil tank
(12) Filling opening,
hydraulic oil
(13) Pump motor
(14) Horn
(15) Battery connec
tor
521
2 804 3001 EN - 02/2017 39
