Operation 4
Picking up a load

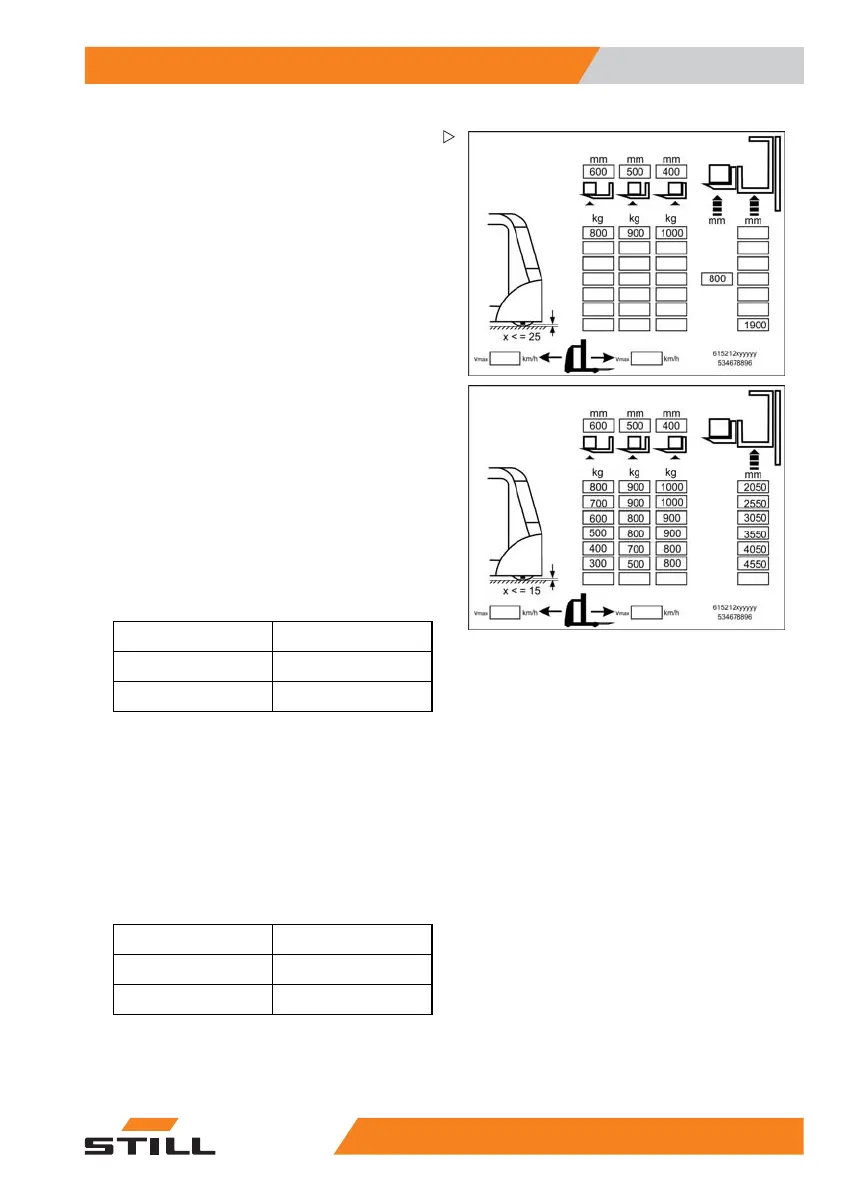

Load capacity diagram
A load capacity diagram is mounted in the
driver's cab. The load capacity diagram
and the load capacity restrictions indicated
for certain application conditions must be
observed. If they are not observed, the
stability of the industrial truck will be impaired.
This also applies, of course, to the increasing
weight due to the picked goods.
The load capacity of the tru
ck decreases as
the lift height increases a
nd the distance from
load centre of gravity grow
slarger.
The data for the current situation can be taken
from the load capacity diagram.
Example: Simplex mast
Example for a truck with a low simplex mast
The lift height of the st
and-on platform is max.
1900 mm
Distance between the load centre of gravity
and the fork back
400 mm
Max. load 1000 kg
500 mm
Max. load 900 kg
600 mm
Max. load 800 kg
.
Example: Telescopic mast
Example for an ind
ustrial truck with a high
telescopic mast
The lift height of the stand-on platform is max.
4550 mm
Distance between the load centre of gravity
and the fork back
400 mm
Max. load 800 kg
500 mm
Max. load 500 kg
600 mm
Max. load 300 kg
.
