4 Operation
General commissioning
WARNING
Risk of accident
Make sure that all four corners of the battery are
within the recess.
NOTE
As an option, the battery in these industrial
trucks can be replaced using the battery
change frame. With this design, the battery
rests on a roller channel. This option is
described in Chapter 7.

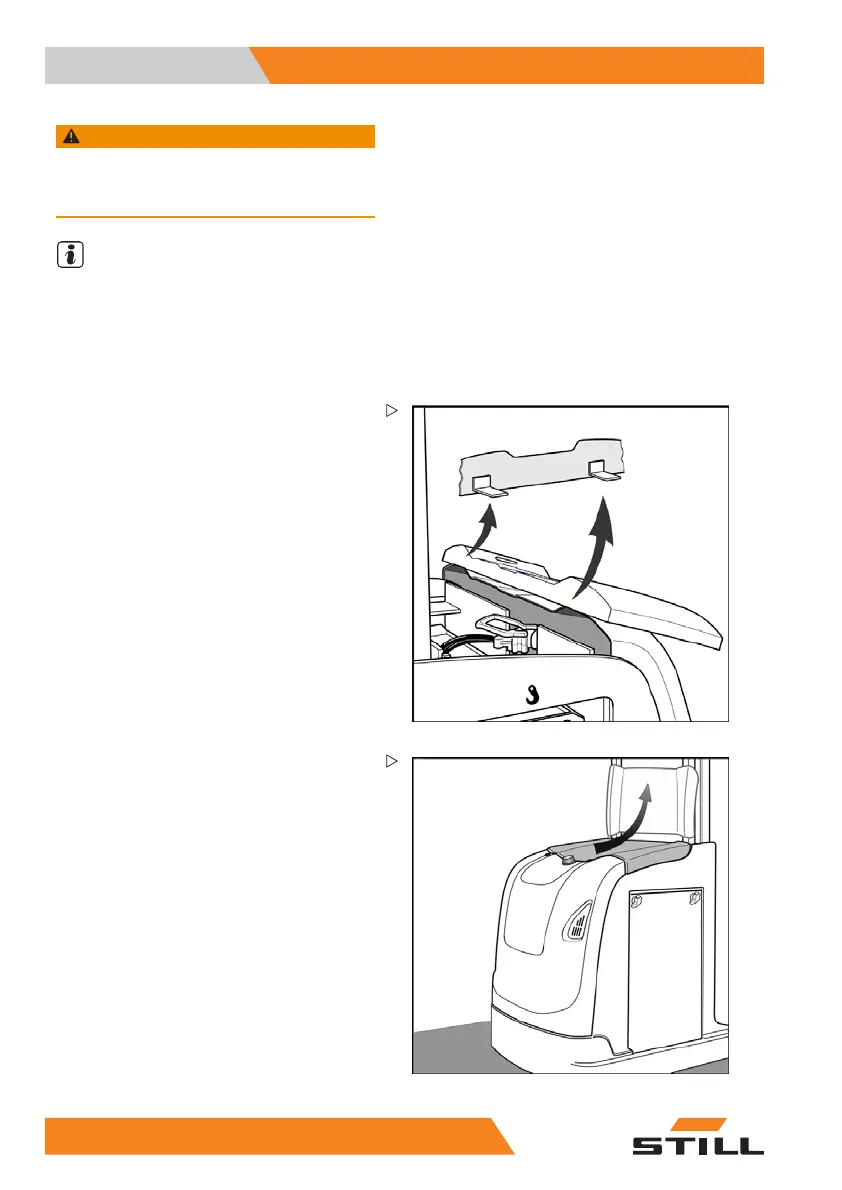

Removable battery compartment cover
Depending on the design of the industrial
truck, the battery compartment cover can
either be removed manually or folded through
a special hinge. This makes the battery
accessible from above, so that you can access
the battery male connector or perform battery
maintenance.
There are two brackets on the inside of the
battery compartment cover. These can
be used to hang the cover on the control
compartment hood.
Folding battery compartment cover
With the folding variant, the flap is guided
through the hinge and positioned vertically to
the lift mast.
48 5
212 804 3001 EN - 02/2017
