Picking up a load using attach-
ments
WARNING
Risk of accident!
Attachments must only be deployed for their inten-
ded use as described in the relevant operating in-
structions.
Drivers must be taught how to operate the attach-
ments.
WARNING
Risk of accident!
Loads may only be picked up and transported with
attachments if the loads are securely grasped and at-
tached. If necessary, the loads must also be secured
against slipping, rolling, falling over, swinging and
tipping over. If the load centre of gravity is shifted,
the stability changes.
– Observe stability when shifting the load centre of
gravity.
– Check the capacity rating plates for the attach-
ments or combination of attachments.

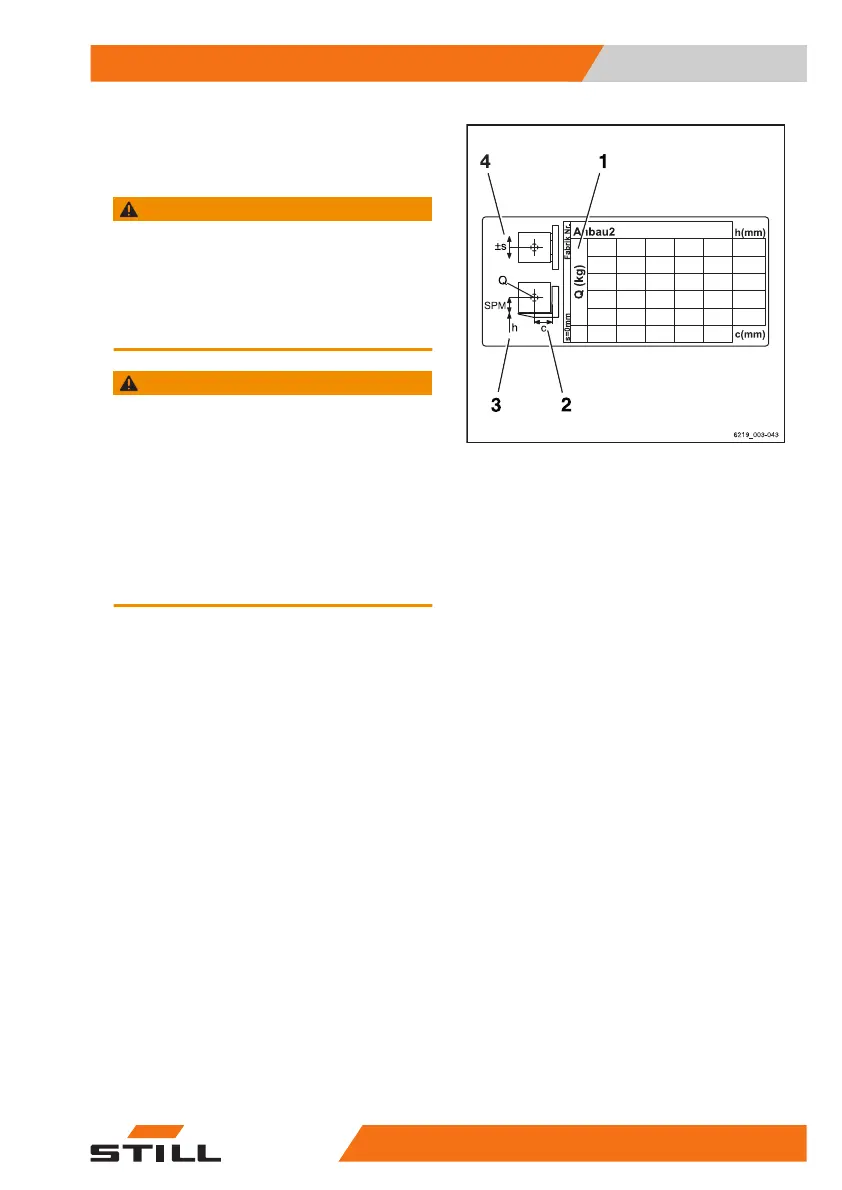

– Read the permissible values on the capaci-
ty rating plate.
1 Load capacity"Q"(kg)
2 Load distance"C"(mm)
3 Lift height"h"(mm)
4 Permissible sideshift"s"(mm)
Operation
4
Attachments
