Still RX70-35 - Closing the Bonnet

Closing the bonnet
WARNING
When closing the bonnet, there is a risk of crushing!
When closing the bonnet, nothing must come be-
tween the bonnet and the edge of the chassis.
– Do not grasp any edges. Always close the bonnet
by grasping one of the handles in each hand.
CAUTION
Risk of damage!
The bonnet can be equipped with a gas spring (2)
with a prop (variant). This prevents the gas spring
from being compressed. Exerting force when closing
the bonnet will damage the gas spring or bonnet
suspension.
– Before closing the bonnet, make sure that the gas
spring is equipped with a prop (variant).
– For gas springs with props (variant), release the
latch(1) before closing the bonnet.
Releasing the prop latch (variant)
– Press the latch(1) at the marking
PRESS
and lower the bonnet slightly.
– Release the latch.
Closing the bonnet
– Holding it by the handle, pull down the bon-
net until the lock audibly engages.

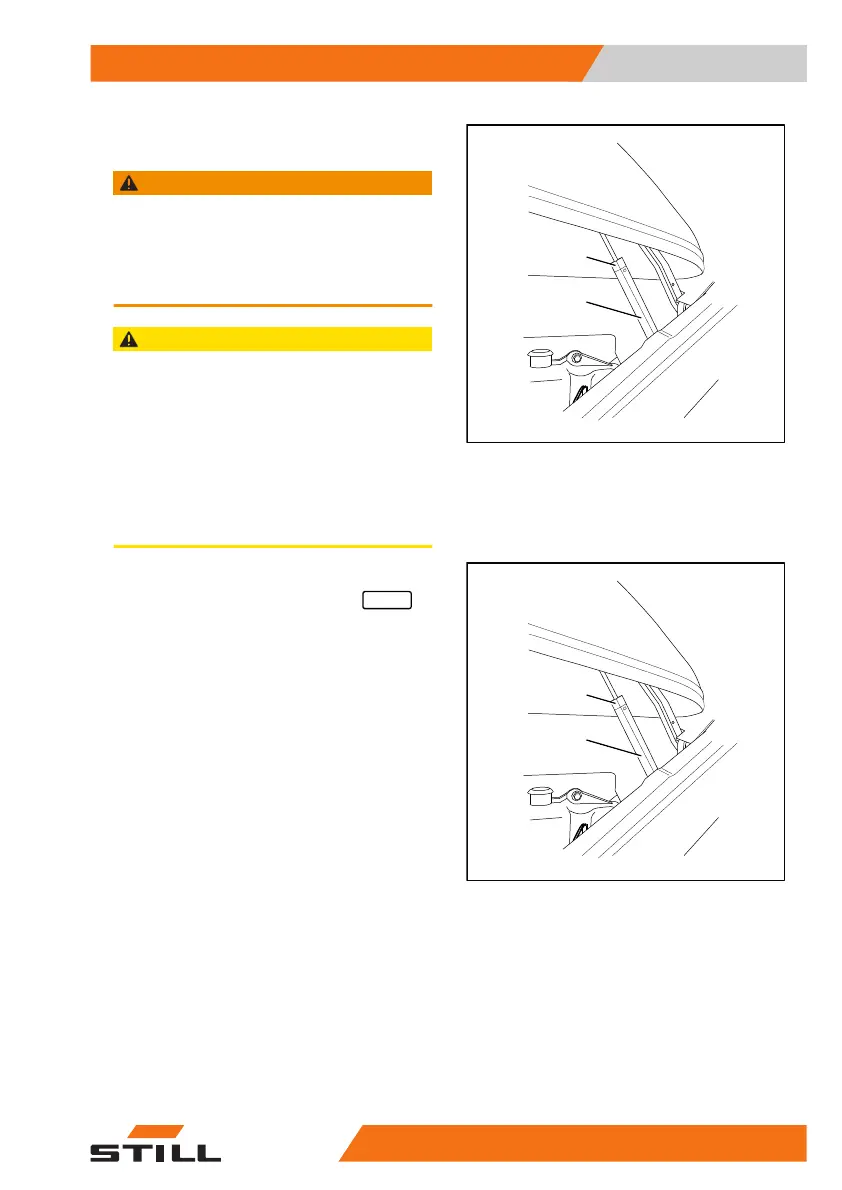

7300_003-008
2
1

7300_003-008
2
1

