Still RX70-35 - Fuse Assignment

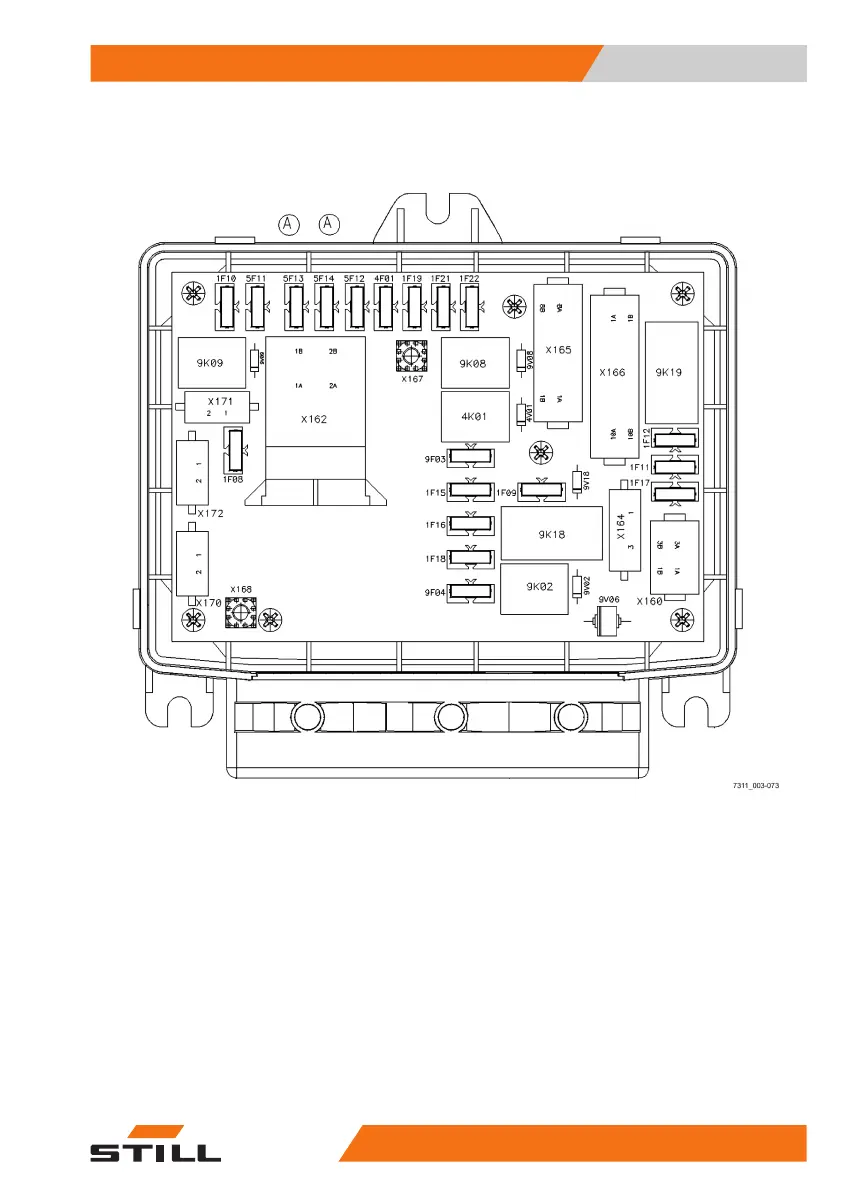

Fuse assignment
MMS, 10A
Switch lock, terminal30, 10A
Engine control unit ECU, terminal15, Doo-
san diagnostics, fuel priming pump, 10A
Converter, 10A
Converter for coolant pump/coolant fan,
15A
MCU3 hazard warning lights, MCU3 Vers,
10A
MCU3 servo hydraulics, 10A
MCU3 time-delay relay, 10A
Res. CPP4, 10A
Relay for glow plug, 10A
Level sensor for engine oil, 10A
1F08
1F09
1F10
1F11
1F12
1F15
1F16
1F17
1F18
1F19
1F21
ECUK01, ECUK03, ECUK05, 15A
Signal horn, 10A
CAN power port1 (CPP1), roof top, 30A
CAN power port5 (CPP5), roof bottom,
20A
CAN power port3 (CPP3), driver's seat,
wiper, 30A
Electric parking brake, 30A
SAE 12-V socket, 10A
Starter motor, terminal50, 30A
Relay for glow plug monitor, 10A
Air-conditioning condenser, 20A
Air-conditioning compressor/evaporator, 25
A
1F22
4F01
5F11
5F12
5F13
5F14
9F03
9F04
9F07
F1
F2
