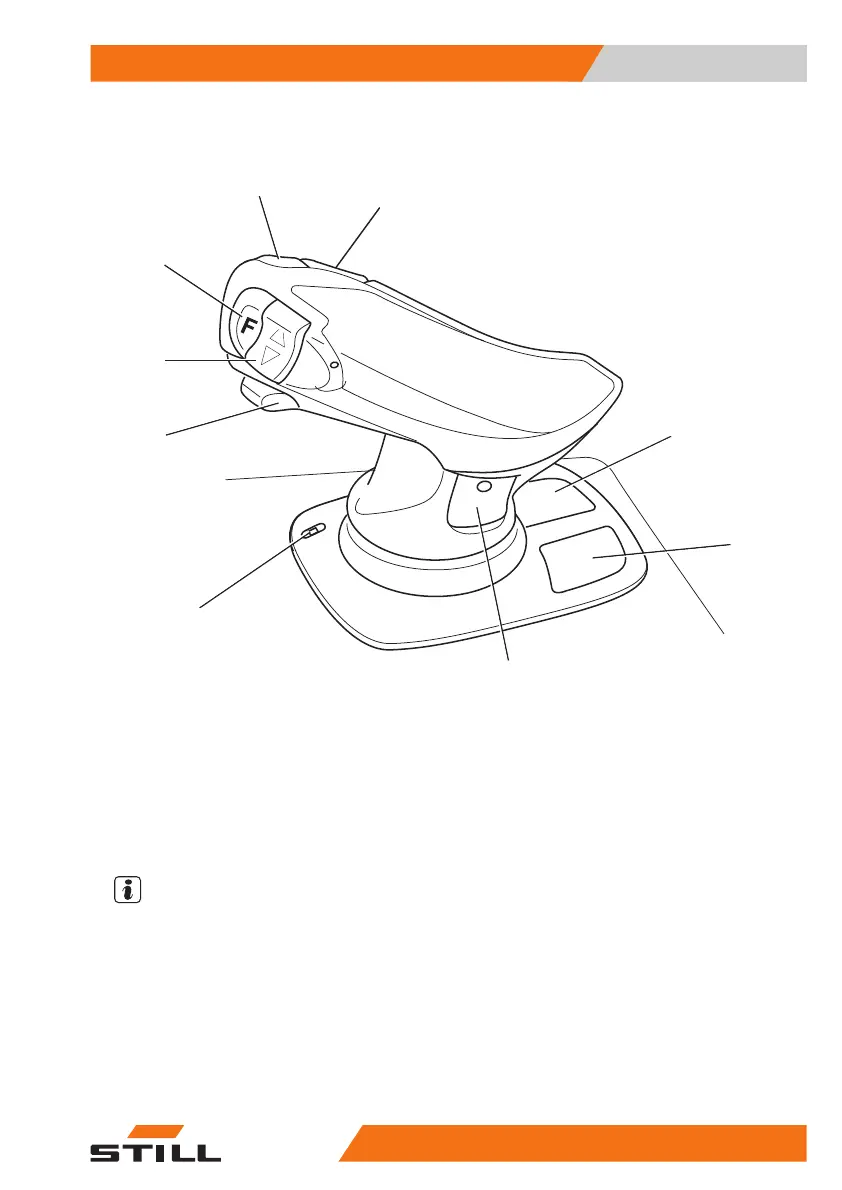

Still RX70-35 - Joystick 4 Plus

Joystick4Plus
1
2
3
4
5
9
8
7
6
6210_003-087
Horizontal rocker button for the "3rdhydraul-
ic function", tilting the lift mast
Symbols for the basic hydraulic functions
Pictograms for the 5thhydraulic function and
for the clamp locking mechanism (variant)
Pictograms for the 3rd&4thhydraulic func-
tion
1
2
3
4
LED for the clamp locking mechanism (var-
iant)
Slider for the "4thhydraulic function", e.g.
side shift frame forwards/backward
Vertical rocker button for the "drive direction"
Shift key "F"
Signal horn button
5
6
7
8
9
NOTE
●
The vertical rocker button for the "drive di-
rection"(7) is inoperable in the dual-pedal
variant. The drive direction is selected ex-
clusively via the pedals in the dual-pedal
version.
Overviews
3
Operating devices and display elements
 7357378011527EN-12/2023 - 07
