SatLink VSAT User Guide

Publication no. 101557

Rev 14.1.1-2

Page 127 (182)

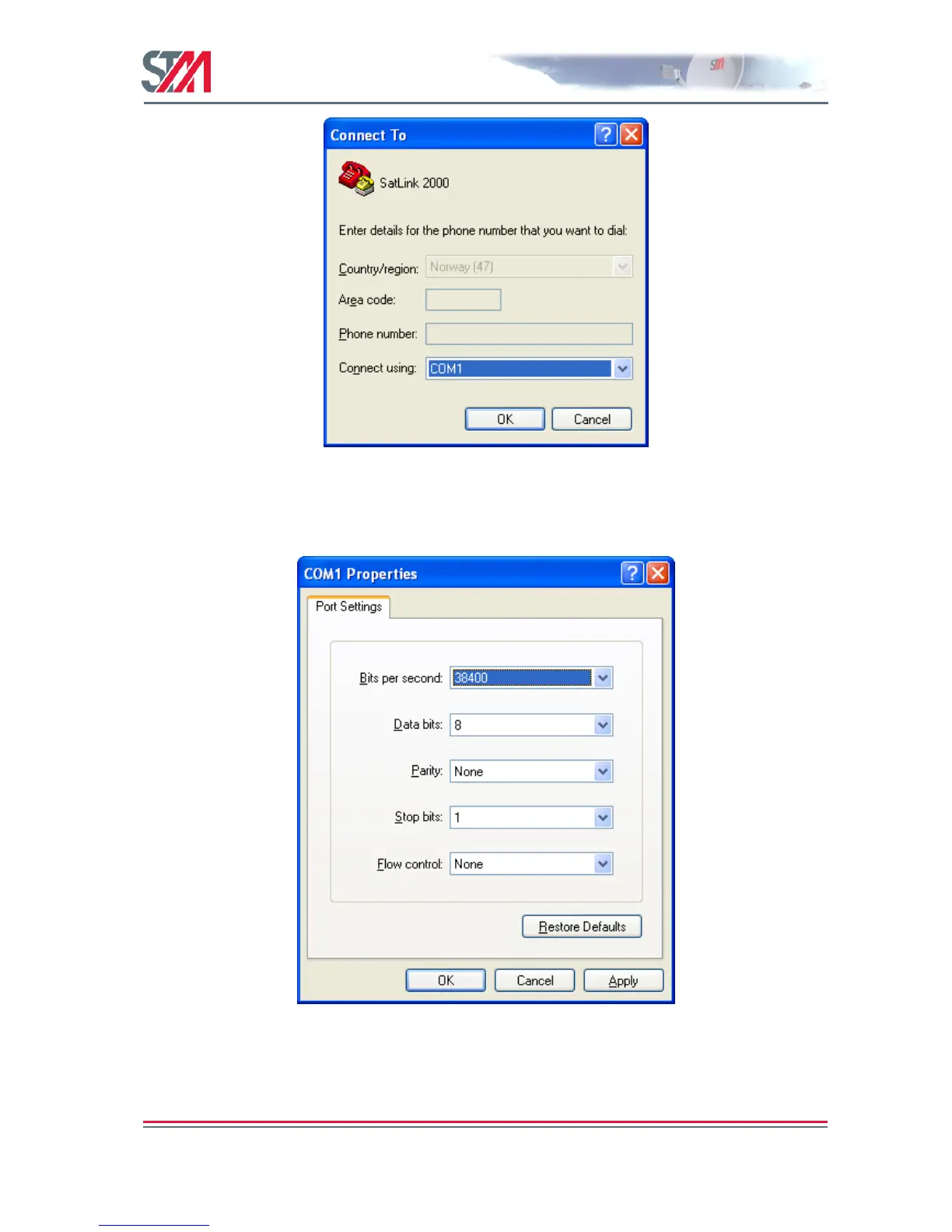

Figure 44: Hyper Terminal Connect To Dialogue Box

Select the COM port where the serial cable attached to the VSAT is connected and click OK. The COM

port Properties box will appear, as shown in Figure 45.

Figure 45: Hyper Terminal COM1 Properties Box
