SatLink VSAT User Guide
Publication no. 101557
Rev 14.1.1-2
Copyright 2006-2012 STM Group, Inc.
Page 148 (182)
Appendix F. ODU Installation
The ODU comprises the antenna with feed-horn and mounting structure, and a transceiver that contains
the LNB integrated with OMT, TX-reject filter, and the transmitter (BUC). If the SatLink 4033/4035
transceiver is not used, the OMT, LNB and BUC may be supplied as two or three separate units. Two
cables with F-connectors, one for TX and one for RX, are connecting the ODU to the IDU.

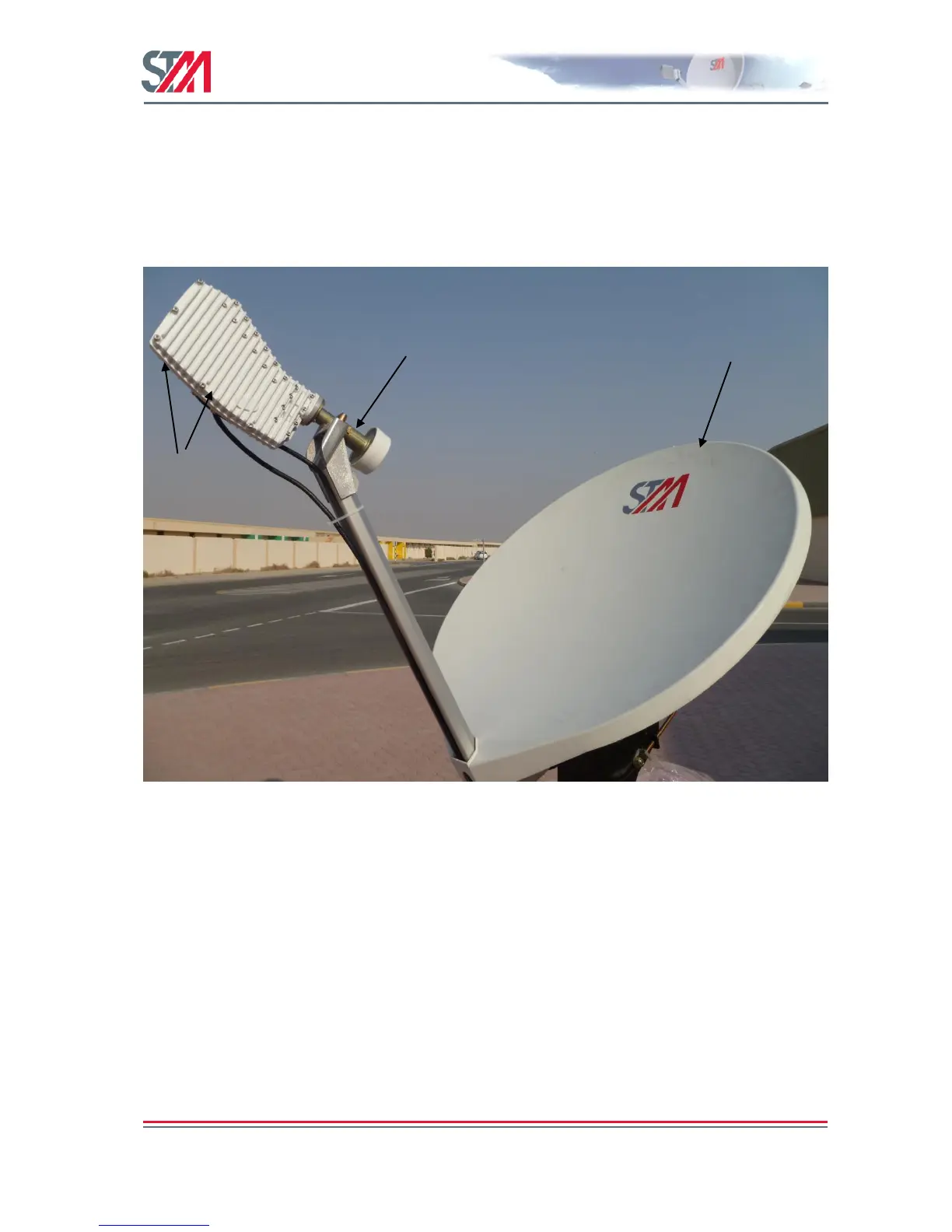

Figure 52: SatLink 4033/4035 Configuration
F.1 Assembly of SatLink 403x Transceiver to Feed Horn
The SatLink 403x is supplied with 6 pieces of UNC 6/32 for connection to the antenna flange. The parts
are shown in the picture below. Please refer to Appendix G for information of how to connect the SatLink
403x to antenna feed horn interfaces with 6 or 8 M4 screws.
Transceiver
mounted directly
on antenna feed
Antenna
Feed Horn
Antenna
Reflector
