STM SatLink VSAT - Statistics

SatLink VSAT User Guide
Publication no. 101557
Rev 14.1.1-2
Copyright 2006-2012 – STM Group, Inc.
Page 41 (182)

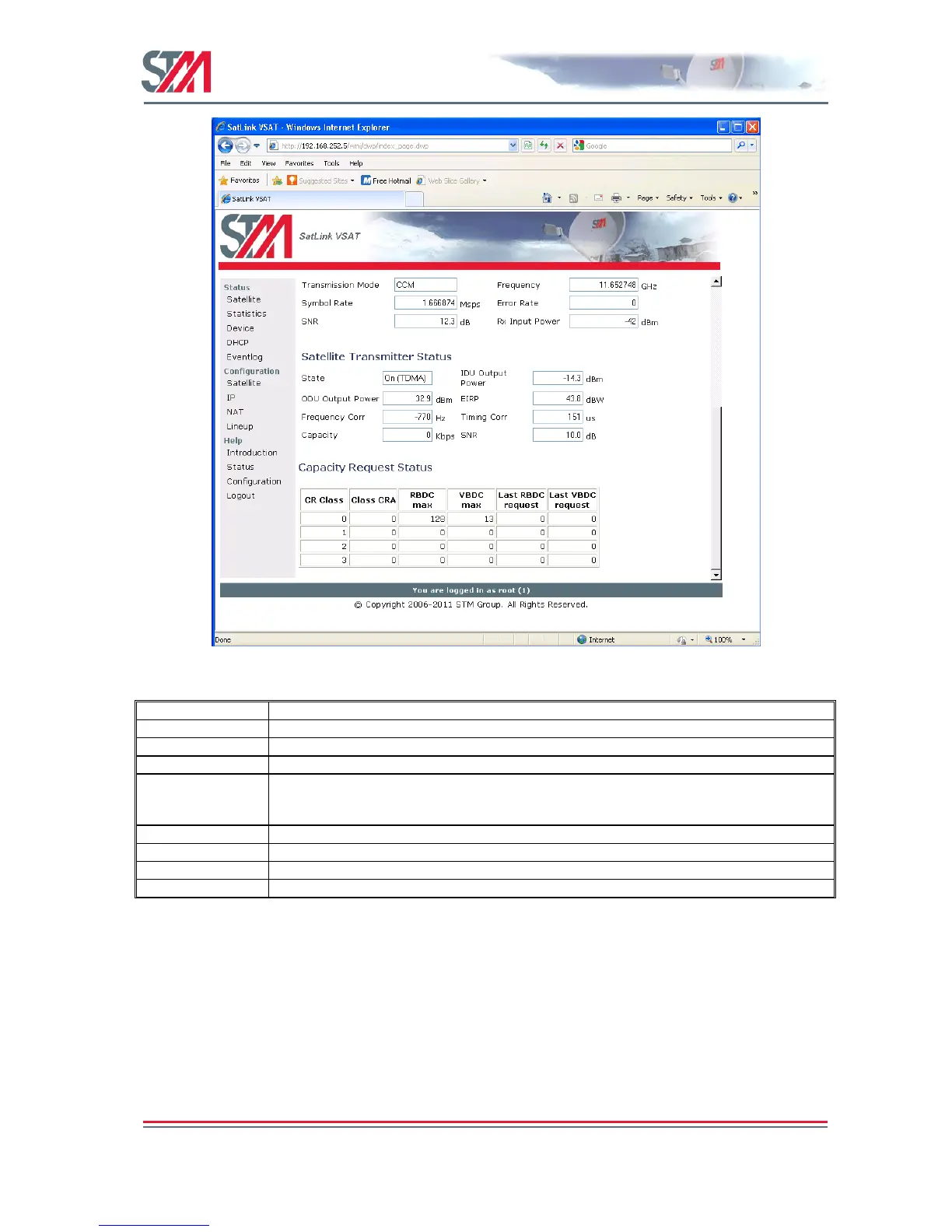

Figure 34: Satellite Transmitter Status
Parameter
Description
State
Specifies the transmitter state. During normal operation it reads "On".
IDU Output Power
This specifies the current power level transmitted by the IDU.
ODU Output Power
Determines the current power level transmitted by the ODU.
EIRP
This parameter specifies the current EIRP transmitted by the VSAT. Note that the value
displayed will only be correct if the antenna is correctly specified on the satellite
configuration page.
Frequency Corr
Current frequency offset of the Return Link transmitter.
Timing Corr
Current timing offset of the Return Link transmitter.
Capacity
Shows the Return Link bandwidth currently being allocated to the Return Link transmitter.
SNR
Shows the SNR of the transmitted Return Link signal as received at the other end of the link.
7.2 Statistics
The statistic option displays the status for IP packets statistics, Multi field classifier statistics, Forward
Link statistics, and Return Link statistics. Select the Statistics option on the SatLink web interface home
page.
IP Packets Statistics
The IP Packets table gives IP packet statistics on the VSATs interfaces. The statistics are collected on two
interfaces: LAN (Ethernet) and DVB (Satellite). For each interface, the table contains the number of IP
packets and the number of bytes that have been received, transmitted, and discarded at the given interface.
