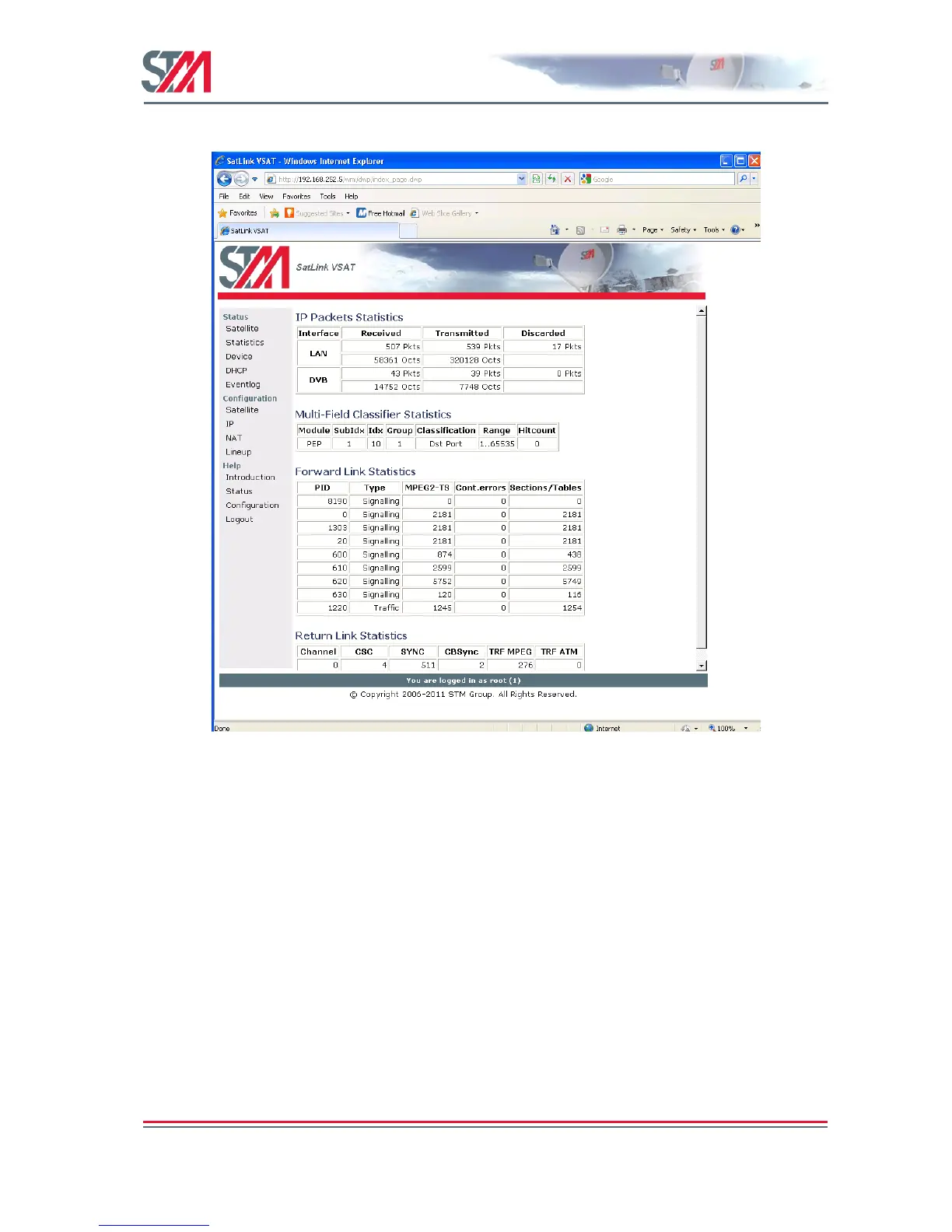

Figure 35: SatLink VSAT Statistics
Multi-Field Classifier Statistics
The Multi-Field Classifier table displays information about the configuration of the MFC table. A multi-
field classifier is used by the VSAT to determine the QoS group an IP packet to be transmitted on the
Return Link belongs to by performing a look-up in a classification table. The MFC is also used to
determine the handling of TCP connections by the Performance Enhancing Proxy client (TCP PEP).
Forward Link Statistics
The Forward Link table displays the statistics for the satellite Forward Link (receiver). Traffic on the
Forward Link is arranged on different PIDs (Packet Identifier); for each PID, there is one row in the table.
Return Link Statistics
The Return Link table displays the statistics for the satellite Return Link (transmitter). The Return Link
transmission is segmented in bursts. The table shows how many bursts have been sent since logon for the
following burst types:
