1. Log on to the VSAT Web interface and click Lineup option in VSAT home page.
2. Ensure that the initial IDU output power level is set to a low value (-30 dBm is recommended).

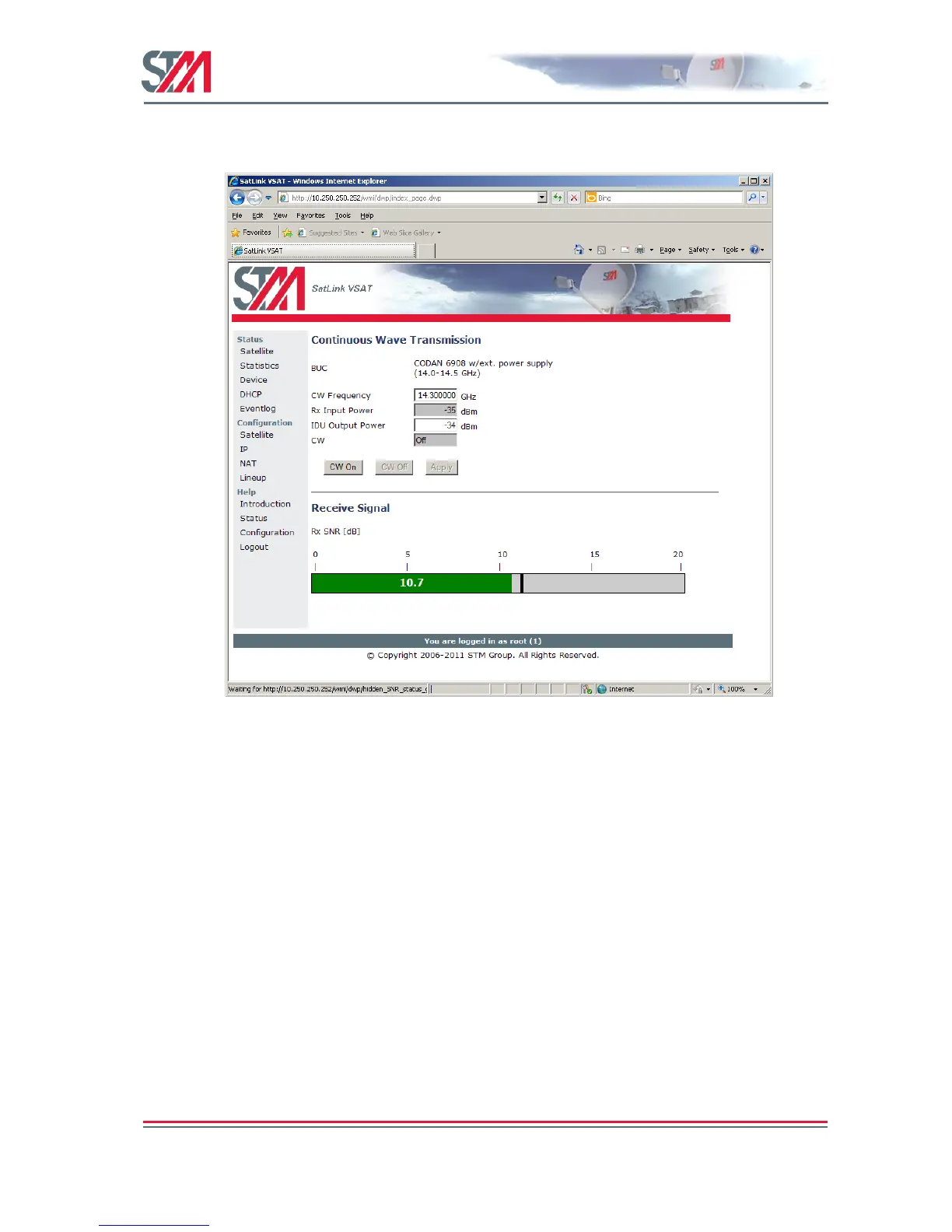

Figure 27: CW Transmission
3. Click the CW On button on the Line-up page to initiate the CW transmission. Start the CW
transmission only after the permission is granted by the system operator.
4. Adjust the IDU output power in small steps (never more than 5 dB) based on feedback from the
system operator.
