②

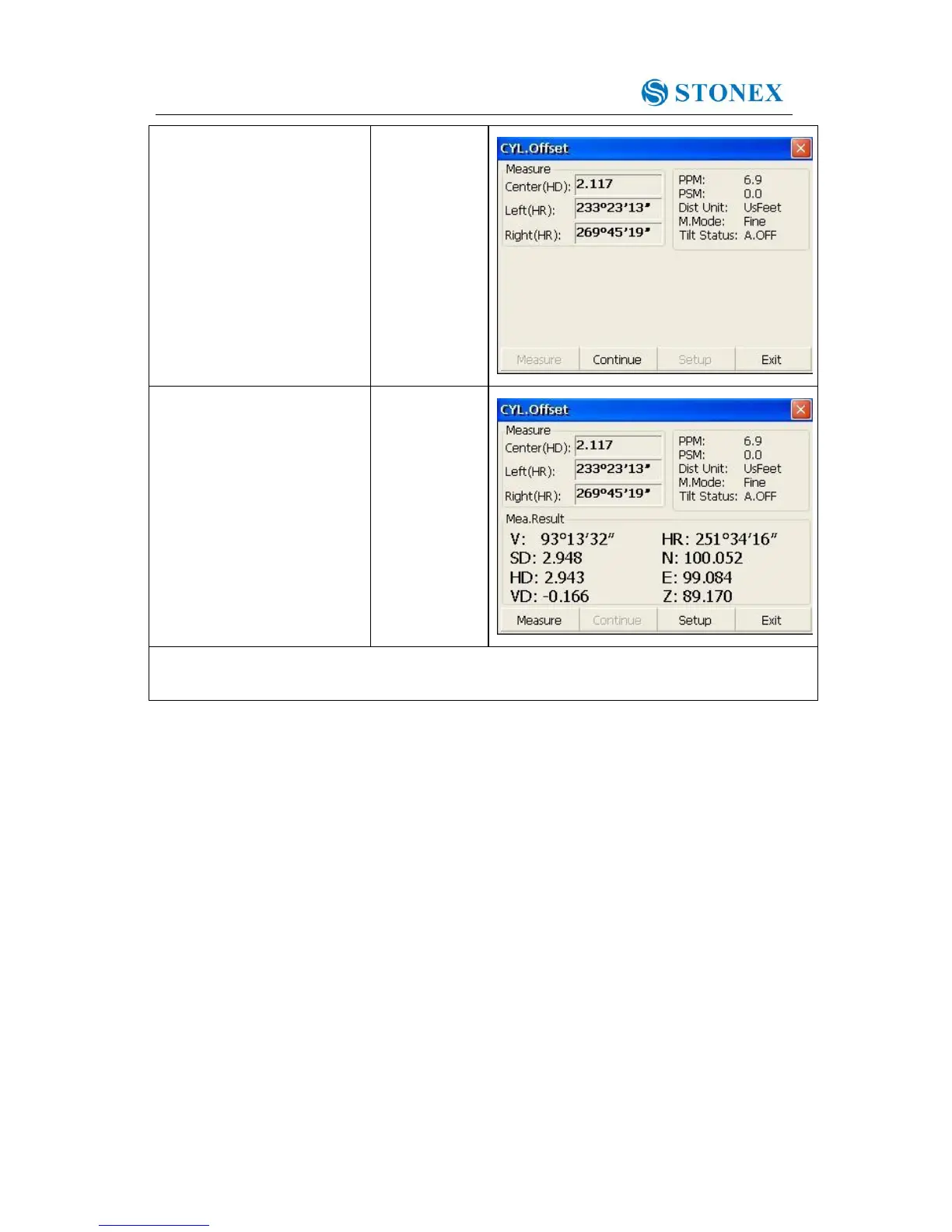

Click “Continue ” key, and
relational values between
instrument and the center of
column (P0) can be
calculated and shown.
※1)，※2)
※1) Click “Setup” key to set instrument height and prism height.
※2) Click “Exit” key to finish column offset measurement.
4) Plane Offset Measurement
Measuring will be taken for the place where direct measuring can not be done, for
example distance or coordinate measuring for an edge of a plane. Three random points
(P1, P2, P3) on a plane will be measured at first in the plane offset measurement to
determine the measured plane, collimate the measuring point (P0), the instrument
calculates and displays coordinate and distance value of cross point between collimation
axis and of the plane.
